Cxp6000 Series Sf6 Leakage Quantitative Alarm System
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
CXP6000 |
| Measuring Range: |
0-30000ppmv |
| Alarm Point: |
Can Be Set Within The Measurement Range, The Defau |
| Alarm Point Tolerance: |
Around 5%Fs |
| Repeatability Tolerance: |
Less Than 5%Fs |
| Zero Drift: |
Less Than 5%Fs |
| Range Drift: |
Less Than 5%Fs |
| Detection Of Concentration: |
0-25% |
| Oxygen Concentration Alarm Point: |
18% |
| Humidity Measurement Range: |
0 to 99%Rh |
| Temperature Measurement Range: |
-25ºC to +99ºC |
| Detection Type: |
Laser |
| IP Rating: |
RS-485 Standard Agreement |
Product Description

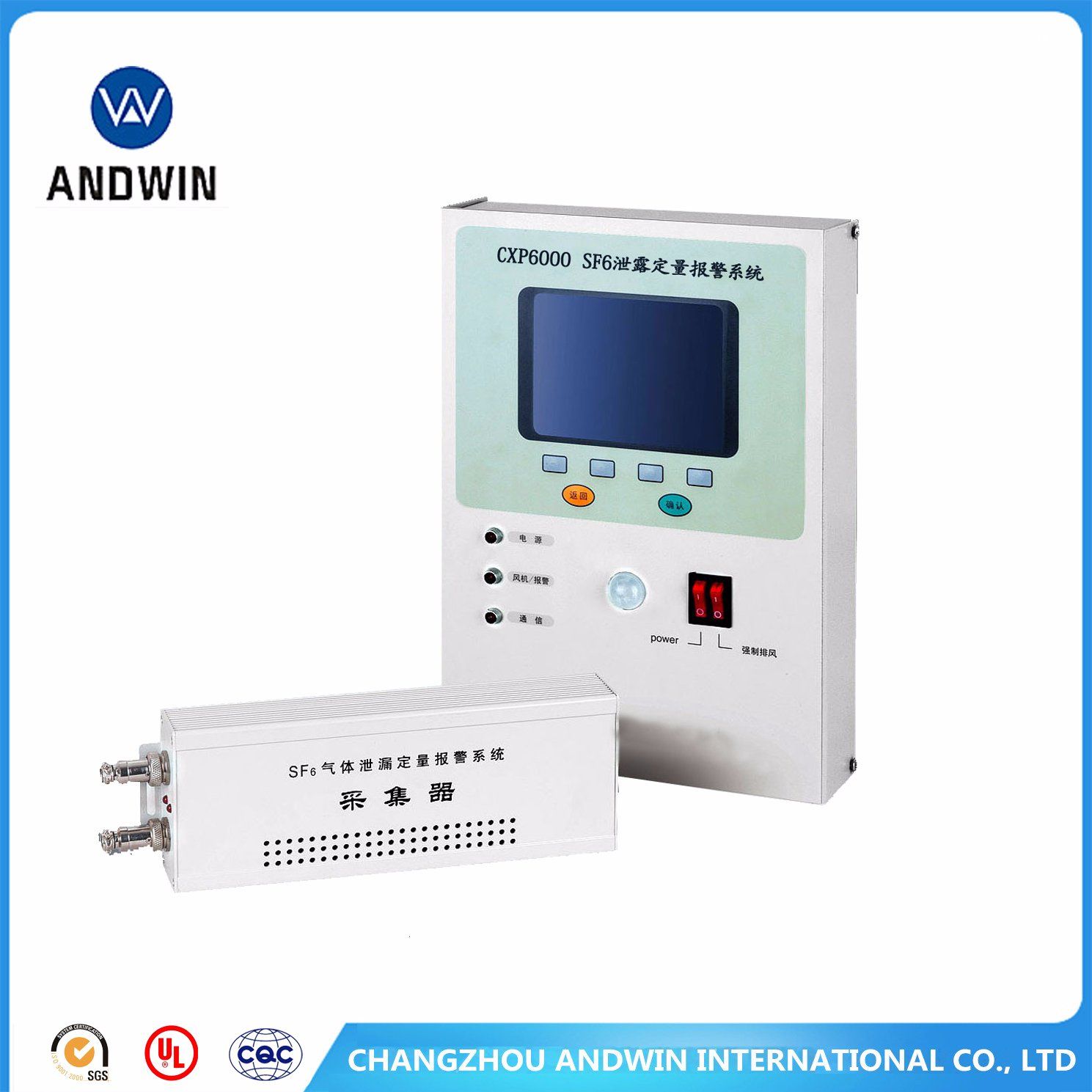

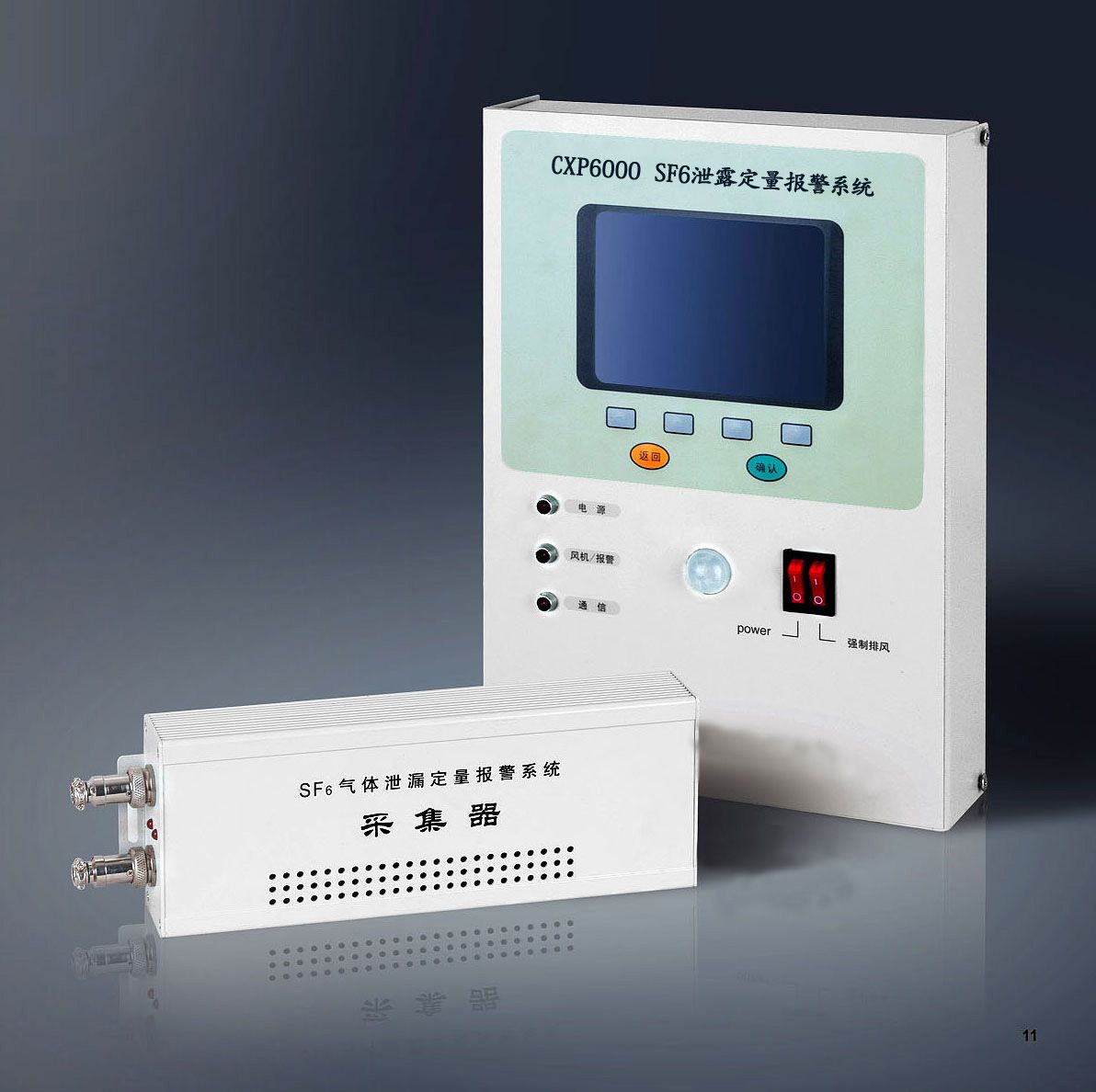

CXP6000 Series SF6 Leakage quantitative alarm system
alarm system Features:1.The system is high precision, good stability, long life, and effectively overcomes the traditional method which is easy to be affected by the environmental temperature and humidity on the system measurement results .
2. The system has a self-test function, can reflect the environment SF6 concentration changes, trend analysis equipment and environmental status, remind user equipment status promptly.
3.Voice function and large screen display interface makes the interaction with the user more friendly.
4.With infrared sensor function, automatically start the voice system and fan.
5.Fan timing control can save the waiting time before entering the GIS room, greatly improving work efficiency.
6.User adjustable inspection interval, with automatically enhance the tracking function on suspicious detection points .
7.When the alarm occurs, automatically open the fan and sound-light alarm.
8.Communication with the monitoring room computer can achieve remote monitoring and control, users do not need to view the data personally at the scene .
9.General Electric Power Regulations, alarm switch output, and NARI, South since, Xu Ji, Quartet and other integrated system seamless integration. Support RTU telemetry remote function.
10.Massive storage of data can be almost unlimited storage query, can facilitate the further statistics and analysis of the data.alarm system Technical Parameters:| SF6 Measurement standard: |
| Measuring range | 0~30000ppmv |
| Alarm point | Can be set within the measurement range, the default 1000ppmv |
| Alarm point tolerance | ±5%FS |
| Repeatability tolerance | <5%FS |
| Zero drift | <5%FS |
| Range drift | <5%FS |
| Oxygen measurement standard: |
| Detection of concentration | 0~25% |
| Oxygen concentration alarm point | 18% |
| Oxygen measurement accuracy | <0.4%,O2 ON 21% |
| Other Standard: |
| Temperature measurement range | -25ºC~+99ºC |
| Humidity measurement range | 0~99%RH |
