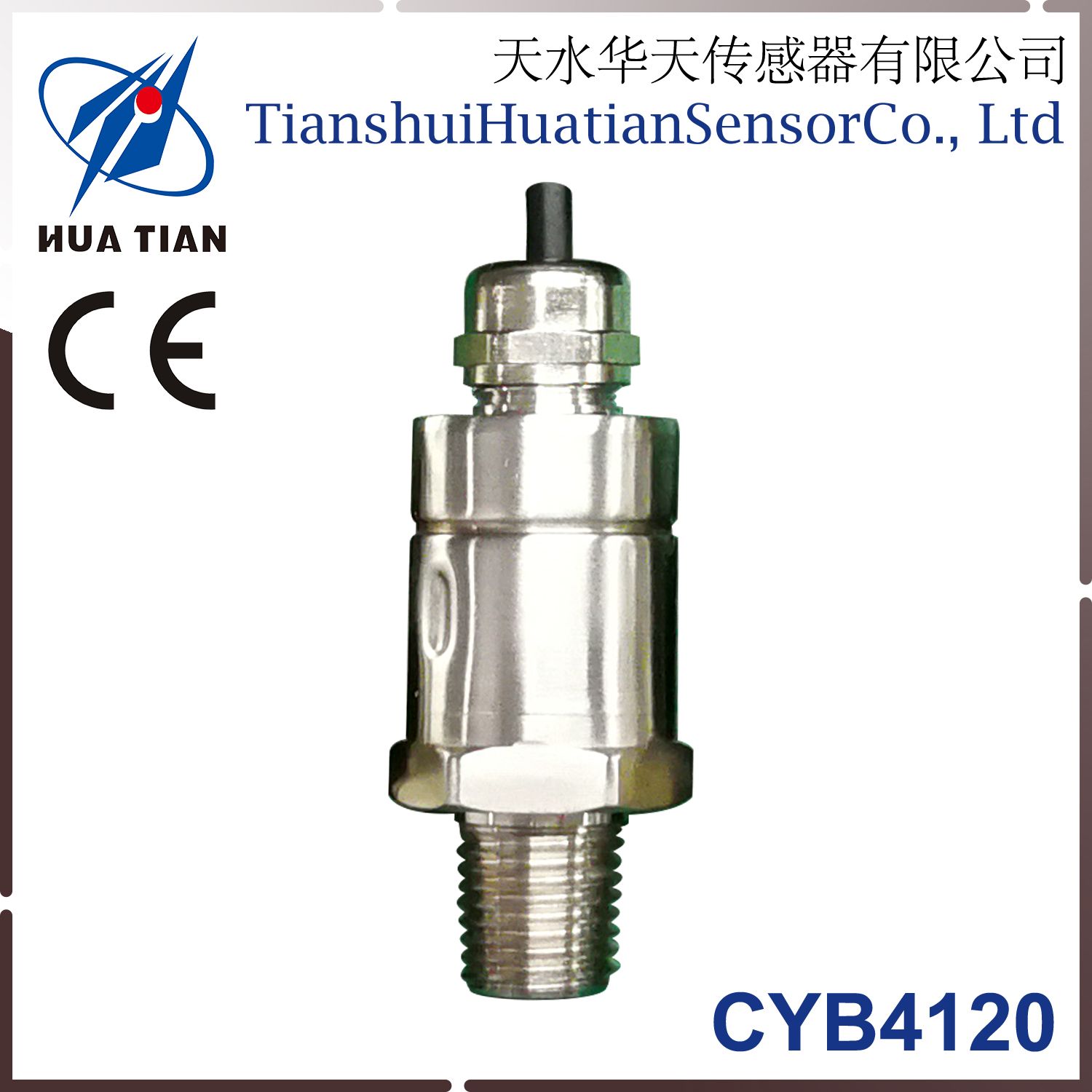

Cyb4120 Small Outline Pressure Transmitter

Name: Cyb4120 Small Outline Pressure Transmitter
Brand: all-electronics-online.com
SKU: 821300165
Availability: InStock
Rating: 4.6 (52 reviews)

Price:	Negotiable/Piece
Min Order:	2/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Introduction
CYB4120 pressure transmitter can stably and reliably convert the pressure parameters into industrial standard 4~20mA, 0.5~4.5V and other signal output by strict and precise temperature compensation, signal amplification, and V/I conversion. CYB4120 uses self-produced high accuracy & stability pressure sensor with stainless steel insulated diaphragm as its core.

Application
Used in the fields of automobile, textile, environmental protection etc.

Specification

Range	0~10kPa~2MPa
Pressure Form	Gauge(G),Absolute(A)
Output Signal	4~20mA,0.5~4.5V,0~5V
Operating Voltage (V)	12~36,5
Accuracy (%FS)	0.25
Nonlinearity Hysteresis (%FS) Repeatability	0.1
Sensitivity Temperature Drift(%FS/ºC)	0.025
Compensation Temperature(ºC)	-10~70
Operating Temperature(ºC)	-40~+85
Long-term Stability(%FS/YEAR)	±0.1
Response Time (ms)	100
Overload Pressure(%)	200
Load Resistance (Current Output)	R=(U-12.5)/0.02-R_D (U: Supply Voltage, R_D:internal resistance of power source)
Measuring Medium	medium compatible with 316L
Diaphragm Material	stainless steel 316L
Shell Material	stainless steel 304
Protection	IP65

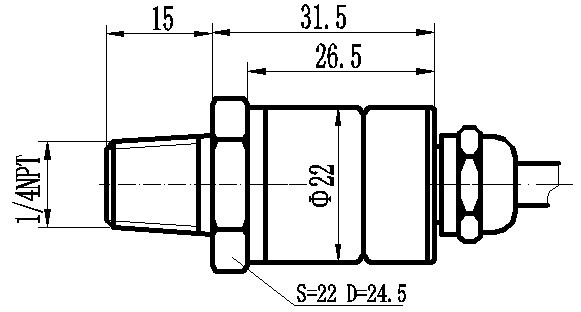

Outline Construction
(Unit: mm)

Electric Connection
Current Output: Red wire: +V
Black wire: OUT

Voltage Output: Red wire: +V
Black wire: -V
Yellow wire: OUT

Prod Model:	CYB4120
Measuring Medium:	Medium Compatible with 316L
Accuracy Grade:	0.25%
Pressure Range:	0~10kpa...2MPa
