Cyb4260 Voltage Output Small Outline Pressure Transmitter

Cyb4260 Voltage Output Small Outline Pressure Transmitter
Price: US $ 45.8/Piece
Min Order: 10/Piece
Pay Type: T/T
Brief Introduction
CYB4260 pressure transmitter can stably and reliably convert the pressure parameters into industrial standard 0.5~4.5V signal output by strict and precise temperature compensation, linear compensation, and signal amplification. CYB4260 uses self-produced high accuracy & stability pressure sensor with stainless steel insulated diaphragm as its core.

Application
Used in the fields of petroleum, chemical, metallurgy, electricity, environmental protection etc.

Specification
Range: 0~400bar/1000bar
Accuracy: 0.5%
Media: Liquid
Supply Power: 5VDC
Output: 0.5~4.5V
Electric Connection: M12*1.75
Process Connection: G1/4

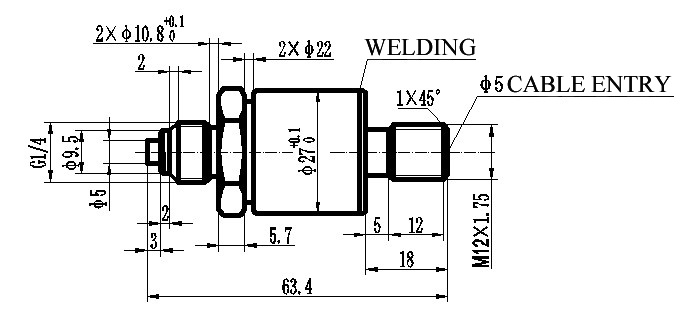

Outline








Prod Model: CYB4260
Accuracy Grade: 0.5%
Pressure Range: 0~400/1000bar
Tianshui Huatian Sensor Co., Ltd. Is a new high-tech enterprise which combined R&D, production, sales with engineering service. It is one of the enterprises which engaged in the integrated pressure sensors and transducers in China. We have passed GB/T 19001-2008 quality management system certification in November 2009.

The main products:

CYX series pressure sensors, CYB series pressure transmitter, CYBD series intelligent measurement instrument, CYBK series electronic pressure switches and CW series temperature transmitters.

At present, the company has a number of patents with independent intellectual property rights for the integrated pressure sensors and transducers, which are widely used in industrial automation fields such as coal, oil, electric power, metallurgy, light industries and etc.

The first-class equipment:

Laser Trimming Machine; Gold Wire Ball Welding Machine; Shaped Cap Sealing Machine; Laser Welding Machine; High Vacuum Oiling Machine; Precision High Low Temperature Test Box; High Precision Automatic Temperature Compensation System and Automatic Test System and Other Hardware Facilities.

Business Advantages:

One hundred thousand purification plant (3000m2); Pressure sensors, transducers and intelligent digital instrument production line (200000 pieces annual output); A leading domestic OEM oil pressure sensor core body production line (1000000 pieces annual output); High-quality R & D team; Advanced process technology.

We are willing to create a splendid future with customers and partners hand in hand.
