| Prod Model: |
BND-CZL932 |
| Delivery Time: |
3-7days |
| Product Name: |
Czl932 Button Micro Weighing Load Cells 50kg Czl93 |
| Warranty: |
1year |
| Rated Output: |
1.0+/-0.1 Mv/V |
| Hysteresis: |
+/-0.2%F.S |
| Overload: |
150% |
| Accuracy: |
0.2%F.S |
| Excitation Voltage: |
5~10VDC |
| Usage: |
Physical Micro Load Cell Sensor |
Product Description

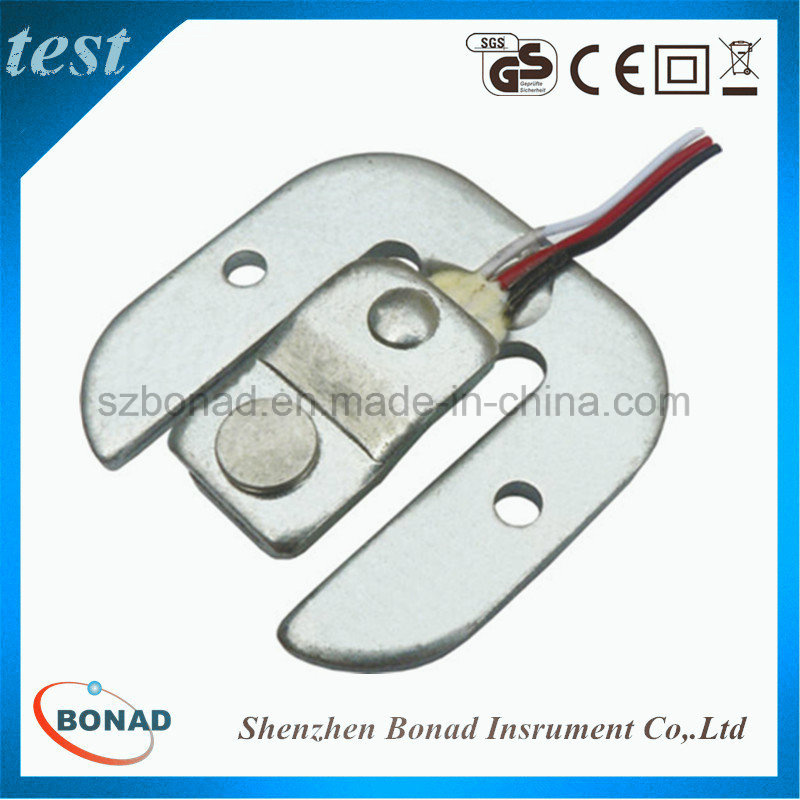

Button Micro weighing Load Cells 50kg czl932
Our micro-load cells can be applied in body scales, hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems.
| Parameters: | | | |
| Product Name: | Load Button Load Cells | Zero Balance: | +/-0.5 MV/V |
| Rated Output: | 1.0+/-0.1 MV/V | Linearity: | +/-0.2%F.S |
| Hysteresis: | +/-0.2%F.S | Repeatability: | +/-0.1%F.S |
| Creep: | +/-0.1%F.S/3min | Output(Input) Resistance: | 1000+/-10 Ohm |
| Temperature Range For Using: | -10~40 Deg C | Four-Angle Error: | 0.1%F.S |
| Temperature Effect On Zero: | +/-0.3%F.S/10 Deg C | Temperature Effect On Sensitivity: | +/-0.3%F.S/10 Deg C |
| Insulation Resistance: | ≥2000Mohm | Excitation Voltage: | 5~10VDC |
| Overload: | 150% | Accuracy: | 0.2%F.S |
FAQ
What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package
Export standard Solid wooden case
