| Prod Model: |
D10Q |
| DSP-14K: |
DSP-14K DSP Amplifier with Ethern |
| Warranty: |
2 Years |
| (DSP) Frequency Response: |
±0.25dB, 20Hz --- 20kHz |
| Heatsink: |
Pure Copper |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Sound Channel: |
4.1 |
| Output Number: |
4 |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Voltage: |
220V or 110V |
Product Description

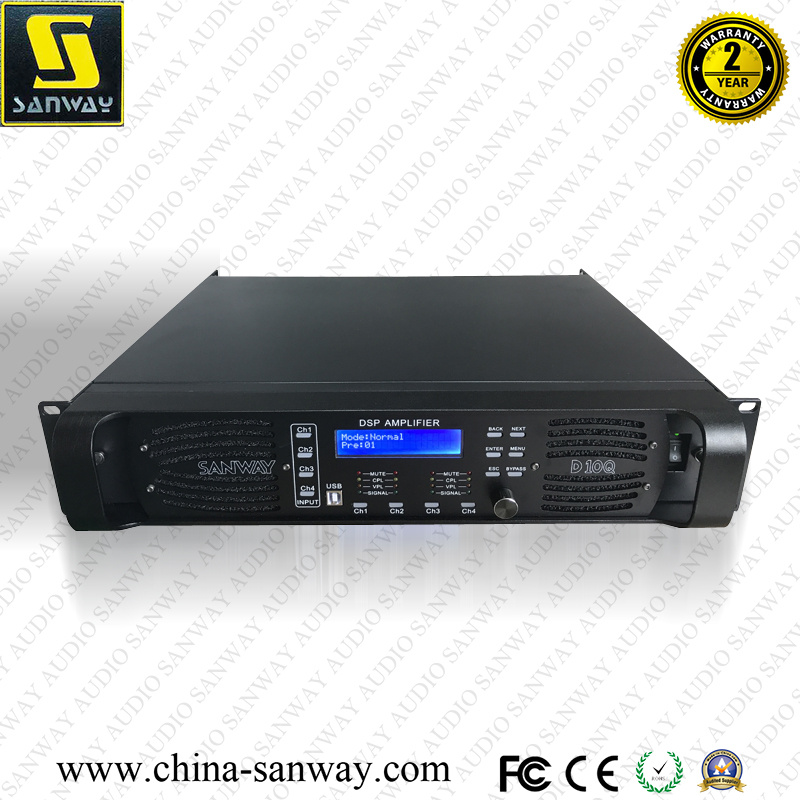

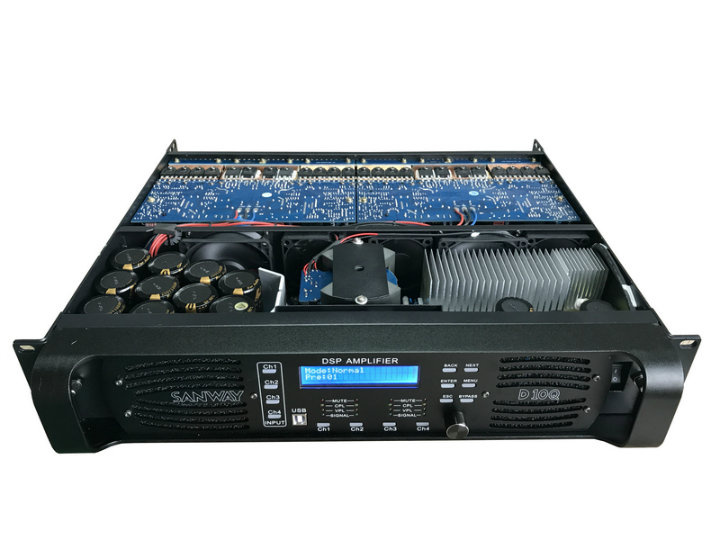

D10Q 4 Channel Professional Digital High Power DSP Amplifier with Ethernet

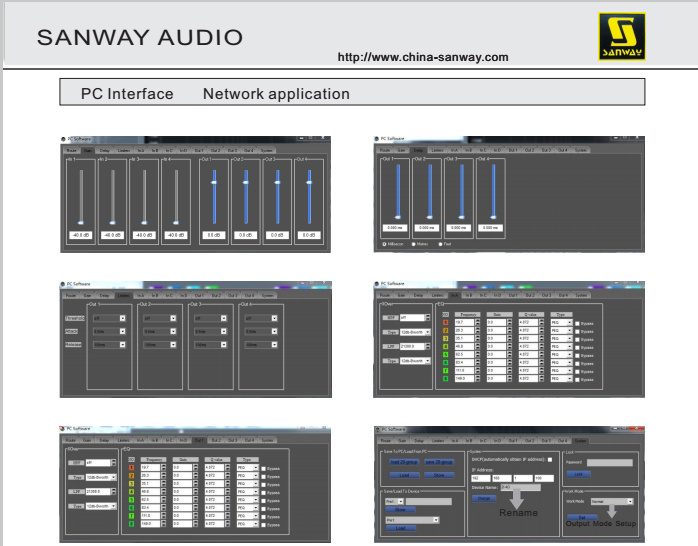

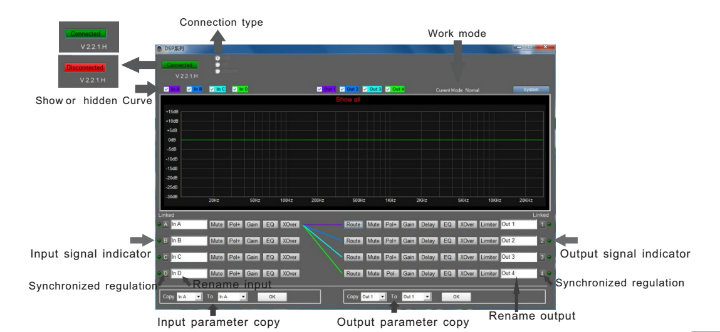

D10Q is the updated version of DSP-10KQ, which not only consists of DSP function, also have Ethernet function or wifi function. Through this function you could creat a network system to control several amplifiers in one computer, without much cables that can reduce the problem of DSP control break because of cable faults. The D10Q combines four channels of extremely powerful amplification with networking, 4in&4out digital processing, amplifiers, power supply and connected mains supply resulting in unique operational benefits.
Features
1. 4IN&4OUT processor

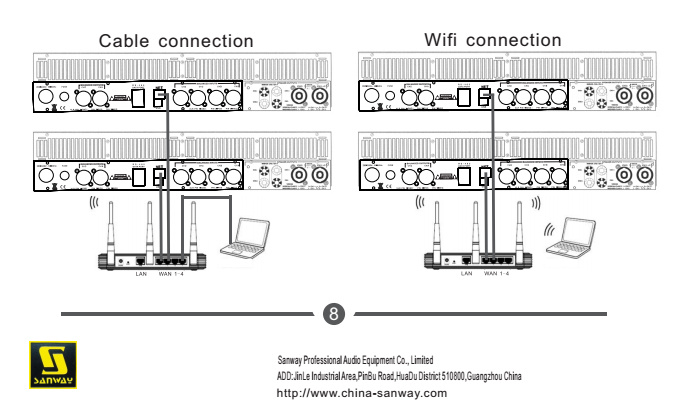

2. Ethernet interface provide wifi connection.
3. 48KHz Sampling frequency, 48-bit Fixed-Point DSP, 24-bit A/D and D/A converter
4. 20 factory preset configurations that can be modified and stored in the user presets.
5. 4 channels input and output, matrix model input and output set freely.
Specification
| DSP | |
| MODEL: | D10Q |
| Input: | 4 channel |
| Output: | 4 channel |
| PC Com Port: | 1 USB Com Port on front panel, 1 USB Com Port,2 RS485 Com Port on back panel (RJ-45) |
| Processor: | 48KHz Sampling frequency, 48-bit Fixed-Point DSP, 24-bit A/D and D/A converter |
| Dynamic range: | >110dB |
| Frequency Response: | ±0.25dB, 20Hz --- 20KHz |
| Distortion: | < 0.01%, 20Hz - 20KHz @ +10dBu balanced input |
| Signal to noise ratio: | >110dB |
| crossover filter: | Each output channel can be independently set as LPF and HPF, The parameters can be adjusted, Filter type:Butterworth, Bessel, Linkwitz-Riley; The Crossover Frequency:20Hz---20KHz, Slope:12,18,24 or 48 dB/octave |
| EQ: | Bandwidth:0.2 to 36 oct, Frequency:20Hz to 20KHz, Gain: -24dB to +12dB, step:0.2 dB |
| Delay: | 0ms to 115ms |

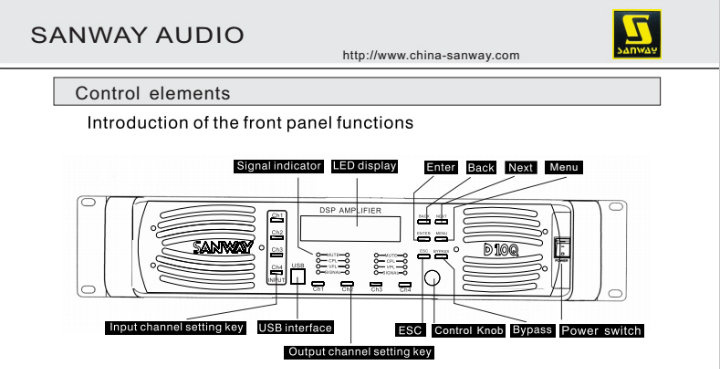

| Display: | 2 x 20 LCD |
| Store Settings: | 20 user program dynamic storage |
| | |
| AMPLIFIER | |
| Model | D10Q |
| Output Power | |
| 8Ω Stereo Power | 4×1350W |
| 4Ω Stereo Power | 4×2200W |
| 2Ω Stereo Power | 4×2500W |
| 8Ω Bridged Monon Power | 2×4400W |
| 4Ω Bridged Monon Power | 2×5000W |
| Frequenty Response | 20Hz-20kHz ±0.5dB |
| THD+N(Rated power,4Ω/KHz)% | 0.10% |
| Signal Noise Ration(dB) | 110dB |
| Input Impedance | 20KΩ Balanced / 10kΩ Unbalanced |
| Output Connectors | Speakon Connectors(NEUTRIK) |
| Power Requirement | 100-120V-50-60Hz or 200-240V-50-60Hz |
| Dimension | |
| Airframe | 483×377×88mm |
