D148 Industrial Temperature Humidity Transmitter

D148 Industrial Temperature Humidity Transmitter
Price: US $ 20/Piece
Min Order: 1/Piece
Pay Type: T/T,D/P,Western Union,Paypal,Money Gram

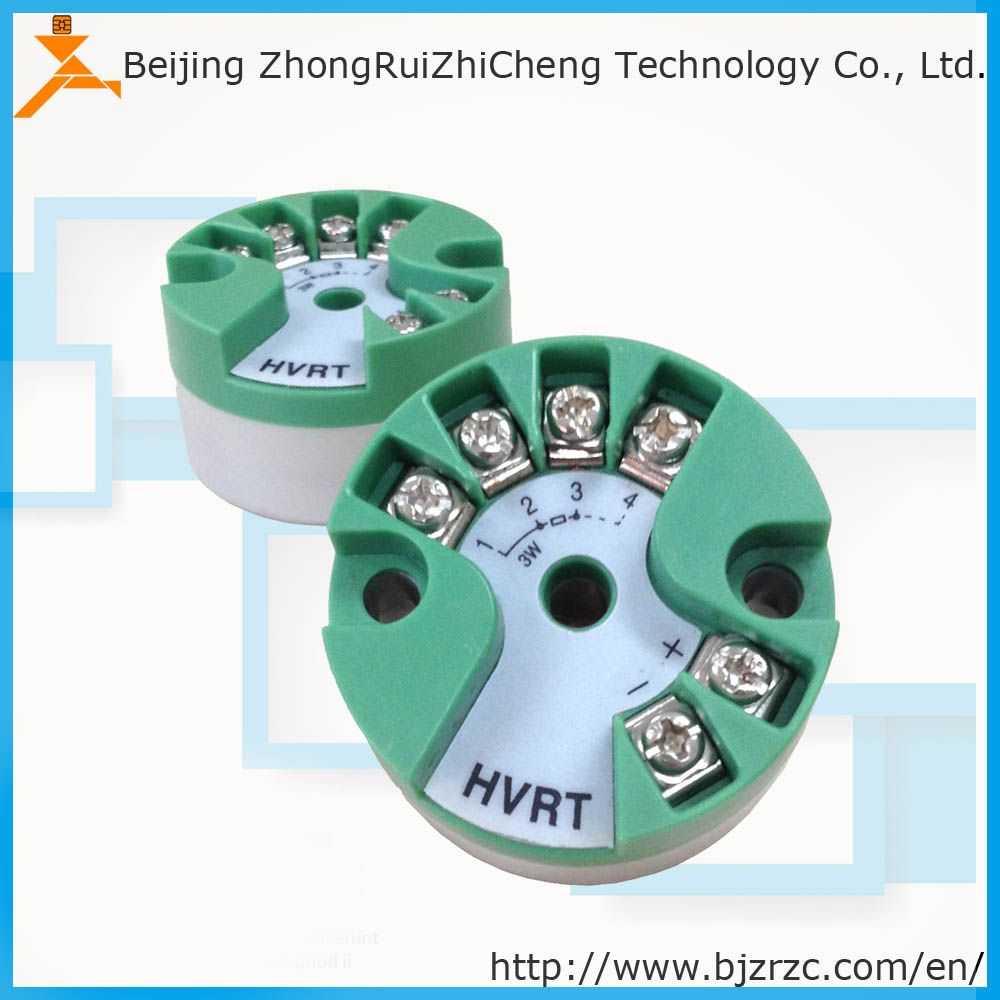

D148 temperature transmitter module



Appliction:
Used forRTD,TC, Ohm,mV

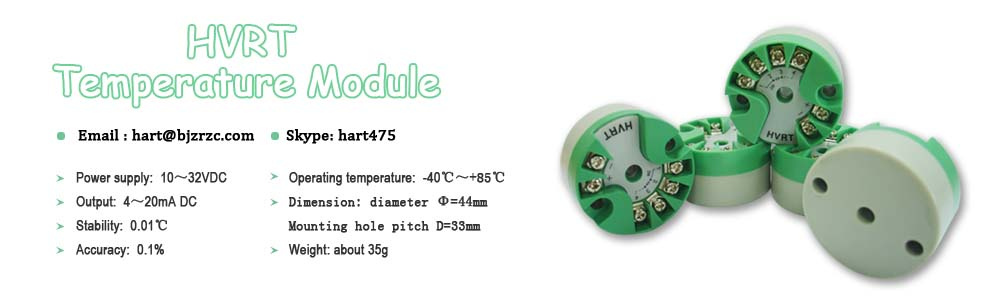

Specifications
Power supply:10-32VDC
Output:4-20 mA DC
Stability:0.01°C (RTD),18bit (Magnetic level)
Accuracy:0.01°C
Load resistance≤ (U-10)/0.22
Relative humidity:10%-90%RH
Operating temperature-40°C~+85°C
Dimension:Diameter Φ=44mm
Mounting hole pitch:D=33mm
Weight:About35g

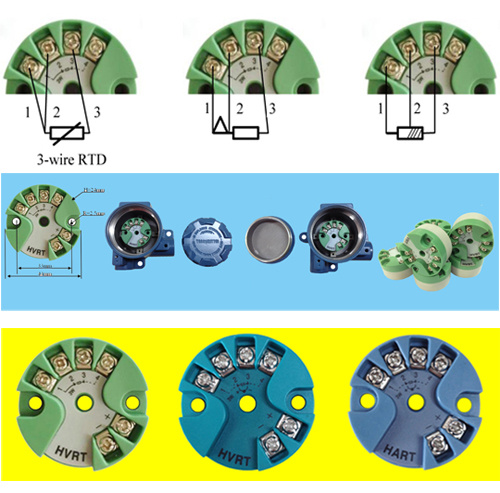

Sensor Type
  3-wire PT100
  3-wire PT1000
  2-wire Magnetic level,R < 10 kΩ
  3-wire Magnetic level,R < 10 kΩ


 Features
  High reliability and exceptional EMC performance.
  High performance-price ratio: HVRT digital bus communication, low price, high precision and good quality.

Signal TypeMeasurements RangeMinimum
Range
Output Accuracy


Thermocouples
(TC)
T-200~400ºC25ºC±0.4ºC/0.2%
E-200~1000ºC25ºC±0.4ºC/0.2%
J- 210~1200ºC25ºC±0.4ºC/0.2%
K-200~1372ºC25ºC±0.4ºC/0.2%
N-200~1300ºC25ºC±0.4ºC/0.2%
R0~1768ºC100ºC±0.8ºC/0.2%
S0~1768ºC100ºC±0.8ºC/0.2%
B150~1820ºC100ºC±1.0ºC/0.2%

mV input
-120~120mV10mV±10μV /0.2%
-1000~1000mV50mV±100μV /0.2%

Resistance
Temperature
(RTD)
Pt50-200~850ºC10ºC±0.15ºC/0.2%
Pt100-200~850ºC10ºC±0.15ºC/0.2%
Pt500-200~850ºC10ºC±0.1ºC/0.2%
Pt1000-200~850ºC10ºC±0.1ºC/0.2%
Ohm input0~500  Ω100Ω±0.2 Ω/0.2%
0~4500  Ω100Ω±1.0 Ω/0.2%

HVRT protocol
 1, HVRT protocol is a proprietary communication protocol developed by our company, based on the voltage    modulation. Similar as HART communication protocol.

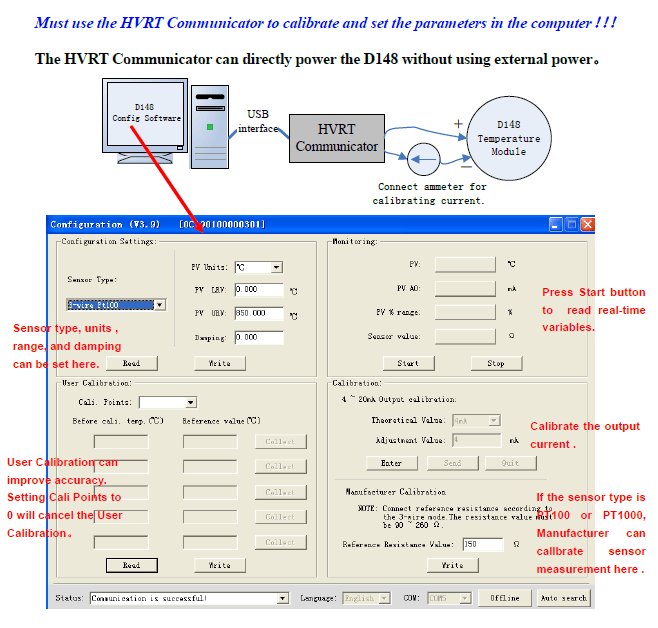

 2, Easy to use: HVRT Communicator provides power for the transmitter. Users just connect the meter to the red  and black terminals of HVRT Communicator.

 3, Powerful: Calibration, configuration, and modification range.

 4, Easy to install and reliable with unique design.

 5,
 These are recommended in application requiring amplification of RTD or T/C signals to carry to a long distance or guard against heavy field electrical noise. The transmitter converts various input to an analog signal for direct interface with Indicators, recorders, controllers, PLC, DCS, systems can be used for a wide range of applications in process control, automatic machinery and hydraulic or pneumatic system.



Beijing ZhongRuiZhiCheng Technology Co., Ltd.

  A professional engineering team with 15 Years HART/5 years Profibus R&D experiences
  80% Market share in China Mainland market for HART transmitters
  More than 1000k Units shipped per year
  One-stop Solution for various HART/Profibus transmitters
  Quick response in goods supply and post-sales support
  Globally distributed customers including China Mainland, Korea, India, America, Europe,    etc


FAQ:
1,Customer:  i want buy the samples to test, it is ok?

      Helen: of course,  not free sample, but when the next order, we will return the  samples money to your.

  2,Customer: when will you do the shippment after my payment ?

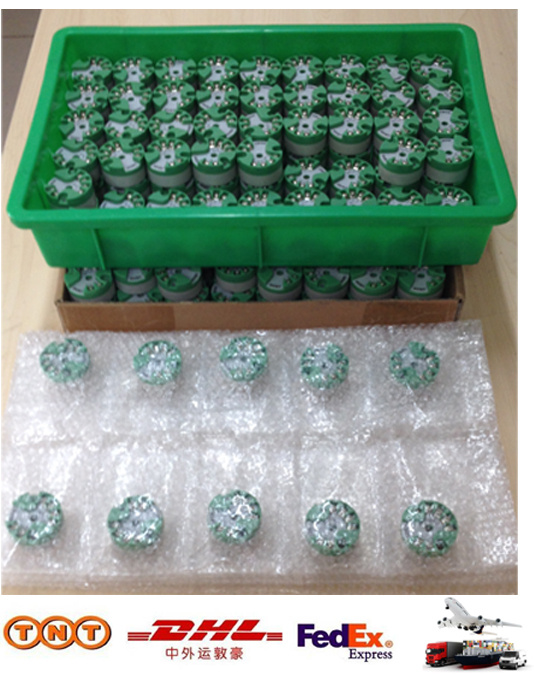

      Helen:  we have the in stock,   when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/FEDEX,etc)

   3,Customer:  How to pay?

      Helen: the Western union, Paypal,  person account,  TT ,and so on.

  Samples small quantity are avaliable at any time Welcome to contact us!

Prod Model: D148
Input Type: Rtd / Tc / Ohm / Mv
Power Supply: 10-32VDC
Output: 4~20mA DC
Stability: 0.01c
Operating Temperature: -40deg ~ +85deg
Dimension: Diameter =44mm
Mounting Hole Pitch: D=33mm
Warranty: 1 Year
OEM: Acceptable
Accuracy Grade: 0.1%
Certification: Pcec
Beijing ZhongRuiZhiCheng Technology Co., Ltd. Is a professional engineering company with 15 years HART and 5 years Profibus R&D expeience. We are may provides a variety of differential pressure, pressure, temperature, flow, level, multi-parameter circuit boards, that supports the HART protocol and Profibus PA protocols.

Example: Electromagnetic flowmeter/ pressure transmitter/ temperature transmitter/ magnetortrictive level meter, etc.

We have most of China Mainland market for HART transmitters.

More than 100K Units shipped per year. Our globally distributed customers including China, Korea, India, America, Europa, etc.

We have our own factory and excellent R&D team, your OEM order is welcomed and we also may add your own logo on our product. We look forward to your business negotiation and will sincerely be your best trade partner.
