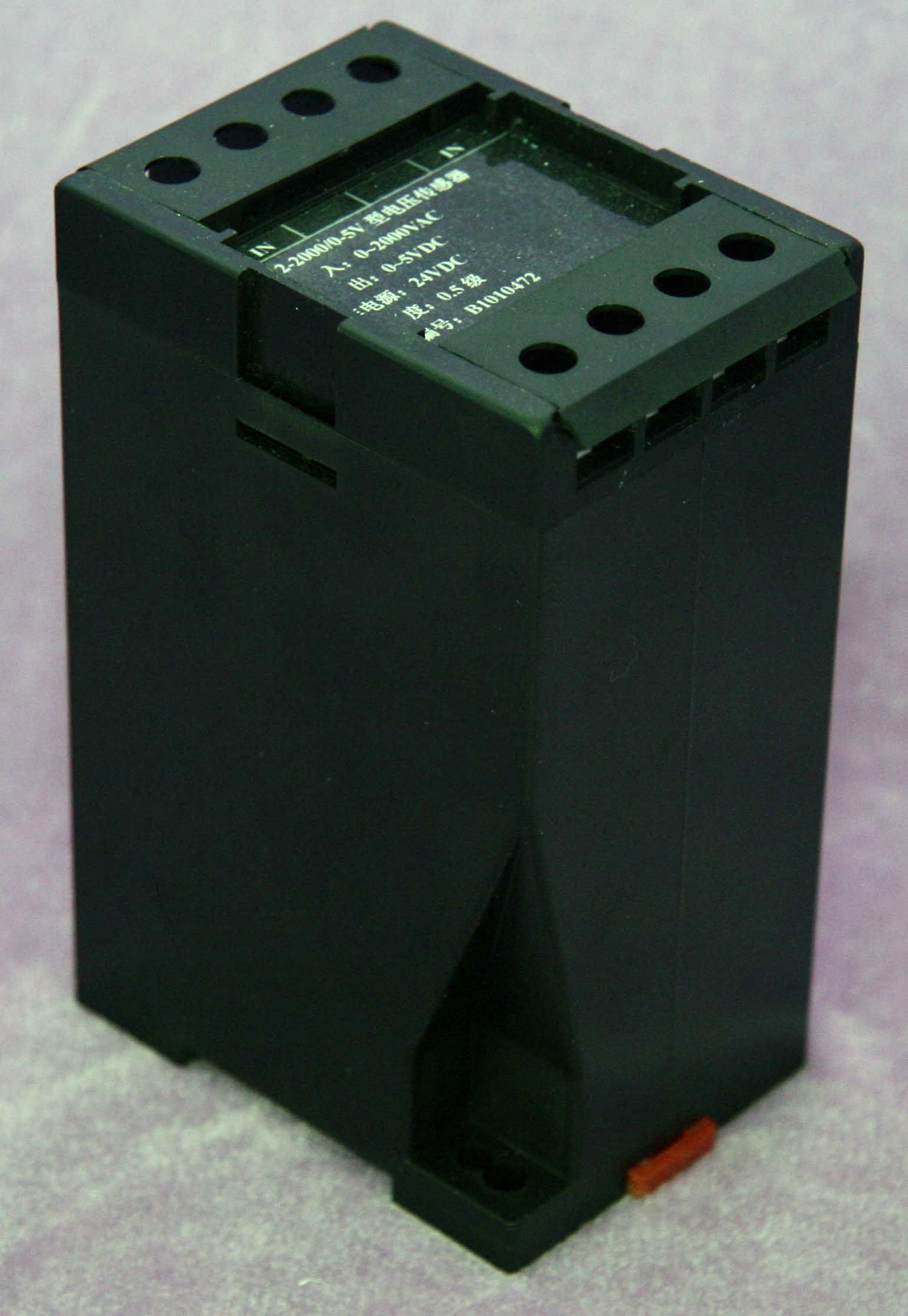

| Prod Model: |
D8 Series |
| Markets: |
North America,South America,Eastern Europe,Western Europe |
| Display Type: |
Displayer |
| IP Rating: |
Mixture |
Product Description
Using new electromagnetic isolation technology, inductive input
High accuracy with low power dissipation, high performance-price ratio
Linear measuring range: 0 - 120% of nominal input
Frequency: 25Hz - 5kHz, suitable for the current measure in range of medium frequency and power frequency
Isolation: >2kV DC 1min
Overload: 200% of nominal input, 1min
Mean Time Between Failure(MTBF): >50000 hours
Various of output mode
True RMS conversion output(special customer request is available)
| Model | Accuracy | Input | Output
Unit | Output | Responding
Time | Static Power Consumption | Power Supply | Working Temperature
(º C) |
| CDYD-J1D83-XXV/ | 0.2 | 800V, 1000V,
1200V, 1500V,
1800V, 2000V | VG | 5V | 15μ s | 3W | 220V AC | -25 - 70 |
| BDYD-J2D83-XXV/ | 0.5 | VZ | 5V | 300ms | 3W | 220V AC | -25 - 70 |
| BDYD-J4D83-XXV/ | 0.5 | IZ | 20 mA | 300ms | 3W | 220V AC | -25 - 70 |
| BDYD-J4aD83-XXV/ | 0.5 | IZ | 4-20 mA | 300ms | 3W | 220V AC | -25 - 70 |
| BDYD-J2D81-XXV/ | 0.5 | VZ | 5V | 300ms | 250mW | 24V DC | -25 - 70 |
| BDYD-J4aD81-XXV/ | 0.5 | IZ | 4-20 mA | 300ms | 350mW | 24V DC | -25 - 70 |
