Dampproof Antenna 4G Circular External Antenna

Name: Dampproof Antenna 4G Circular External Antenna
Brand: all-electronics-online.com
SKU: 824006555
Availability: InStock
Rating: 5 (131 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL-4G-012
Mounting:	Screw Fixing
Connector:	SMA Gold Plated Male Head Straight
Cable:	Rg174 0.64m
Color:	Black
Size:	46.6*15.6mm
Weight:	<57.6gram
Usage:	Car Antenna
Operating Wavelength:	Medium Wave
Material:	Al
Directionality:	Directional Antenna
VSWR:	1.5~2

Product Description

Summary
Effect of 4G circular external receiving antenna, the electromagnetic wave energy conversion radio signal from the satellite receiver into the electronic device can supply.4G uptake using circular antenna right circularly polarized design, mainly used to receive 4G satellite L1 band. The antenna has a high gain, low in Bobbi, accept ability etc. the electromagnetic wave energy conversion to the satellite radio signal receiver electronics can supply.4G antenna application is composed of ceramic uptake and active antenna amplifier. Using plastic enclosure, with waterproof features, this product has the advantages of small volume, convenient installation and use.

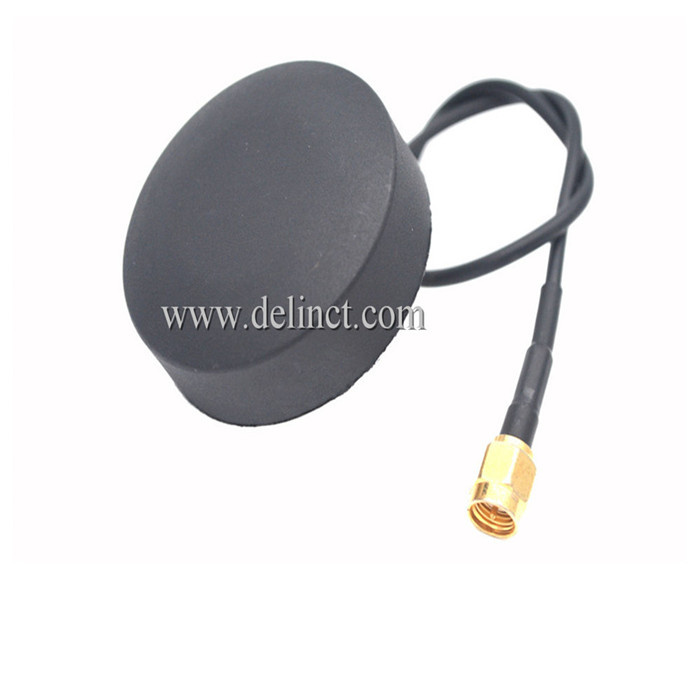

Product Apearance

Size	Ø46.6*15.6mm	Mounting	Screw Fixing
Weight	<57.6gram	Connector	SMA gold plated male head straight
Color	Black	Cable	RG174 0.64m

Antenna Performance

frequency band(MHz)	824~960 /1710~2170/2300~2400/2500~2690
directivity of antenna	Quasi dipole
] gain(dB)	2
standing-wave ratio (SWR)	≤2.0
normal impedance(Ohm)	50
Antenna connector type	SMA gold straight head
polarization	linear polarization
Maximum Input Power	20
Radome Color	black
Dimension(mm)	ø46.6*15.6
The type and length of cable	RG-174 0.64
weight	≤40g

Operating Condition
Temperature: -40ºC~+80ºC
Humidity:95%~100%
Storage:
Temperature:-45ºC~+85ºC
Humidity:95%~100%
