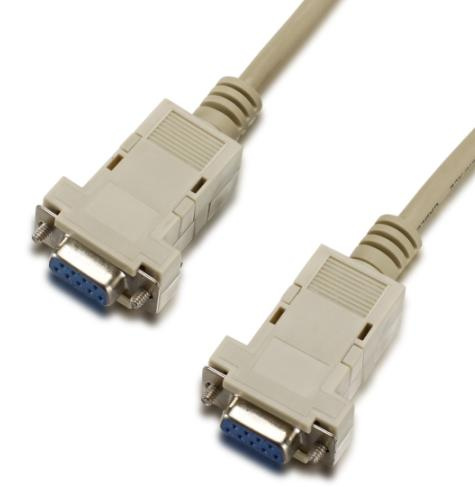

1. DB9 female / dB9 female
2. Optional gold and nickel plating.
3.5.80mm diameter wire for the following.
4. Assembly type
Specifications
1. DB9 RS232 Serial Cable
2. Double Shielded with AL-Foil & braid
3. RoHS Compliant
Product Description:
DB9 serial cable is used to connect PC and device with DB9 serial port. Male to Female cable is typically used to extend your existing male to Male cable. Fully molded connectors with thumbscrew provide you with a quick and easy connection. Support serial printer, mouse, modem, switch, video splitter, mono & MultiSync video applications.
Product Features:
1. Fully shielded to prevent unwanted EMI/RFI interference.
2. All 9 connector pins are wired straight through.
3. Fully molded connectors with thumbscrews provide you with a quick and easy connection every time.
4. Can easily connect and transfer from USB interface to other interface of RS232, printer, keyboard/mouse.
5. Allows you to extend the reach of your printer or PC to PC connection, eliminating cable length restrictions.
|
Item No. |
D-SUB Cables Series |
|
Model Number |
DB9 cable |
|
Cable Spec |
UL2464 28AWG*9C+AL+B OD:5.0mm (Custom Spec available) |
|
D-Sub Cable Length |
6ft, 10ft, 15ft, 25ft, 50ft, 75ft, 100ft (Custom Length available) |
|
Color |
Black, Beige ,Blue(Custom Color available) |
|
Diameter |
OD:5.0mm or your request |
|
Wire Gauge |
30AWG,28AWG,26AWG or your option |
|
Conductor |
copper-clad steel(CCS),bare copper(BC),Tin plated copper(TC)(optional) |
|
Certificate |
RoHS,UL,CE,FCC |
|
Plug mould |
PVC molding, plastic shell , metal shell |
|
Connector |
nickel-palted or gold-plated |
|
Noted: |
We could arrcording to customers' requirment spec make cables |
Electrical Properties:
|
Quality Control |
100% open & short test |
|
Voltage |
DC300V 5M ohm/10ms |
|
Insulation Resistance |
10M min |
|
Contact Resistance |
2 ohm max |
|
Working Temperature |
-25C-80C |
|
Data transfer rate |
10.2Gbps Max |
|
Differential Impedance |
100±10Ω(TDR) |
