| Prod Model: |
BD-120-30F |
| Power: |
30W |
| Output Voltage: |
DC12V/24V |
| Rated Current: |
2.5A/1.25A |
| Input Voltage: |
90-130V/170-265V |
| Frequency Range: |
50-60Hz |
| Efficiency: |
85% |
| Body Material: |
Aluminum |
| IP Rate: |
IP 67 |
| Protection: |
Over Voltage Protection |
| Warranty: |
3 Years |
| Usage: |
LED Module /LED Strip /Neon |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled / Electronic Step-Down Transforme |
| Modulation System: |
Pfaw/Pfm/PWM |
| Brand: |
No |
| Power Supply Voltage: |
AC90-130/170-250V |
| In-Out: |
Lifting Presure Type/Step Down Type/Booster Type |
Product Description
Welcome to BOND
With us your money is safe, your business is safe
Quality is our culture
creativity is our soul
service is our key
Alibaba gold supplier 100% QC inspection UL CE & RoHS listed competitive price
Pls feel free to contact us :
Bond Sara ---- Phone :+86 13266659380
Specification
| Power | 30w |
Output voltage | DC12V/24V |
Rated current | 2.5A/1.25A |
Input voltage | 90-130V/170-265V |
Frequency range | 50-60HZ |
Efficiency | 85% |
Body material | Aluminum |
IP Rate | IP67 Waterproof |
Protection | Over vlotage protection |
Warranty | 3 years warranty |
Application | signage/billboard/channel letter |

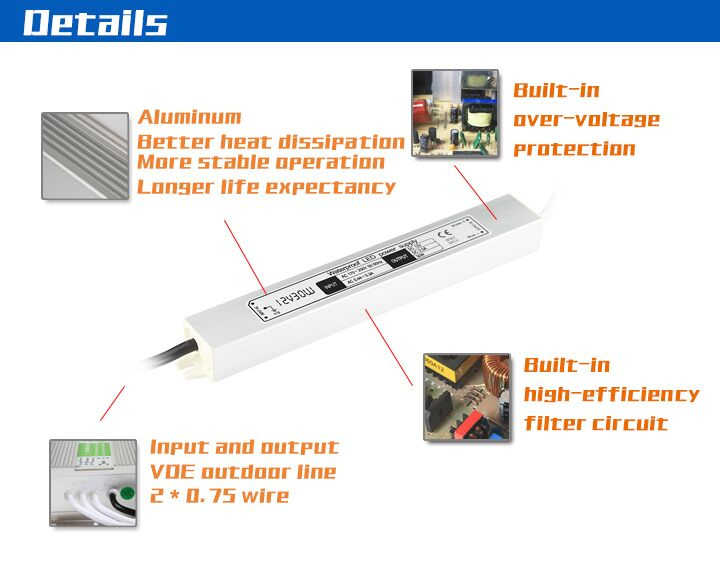

Details
Features
- Constant voltage design
- Universal AC input / Full range
- Fully encapsulated with IP67 level
- Withstand 300VAC surge input for 5 seconds
- Protections:Short circuit / Over voltage
- Fully isolated plastic case
- Cooling by free air convection
- 100% full load burn-in-test
- Low cost / High reliability
- Suitable for LED lighting and moving sign applications
- 3 years warranty
Application
led module /led strip
signage /billboard /channel

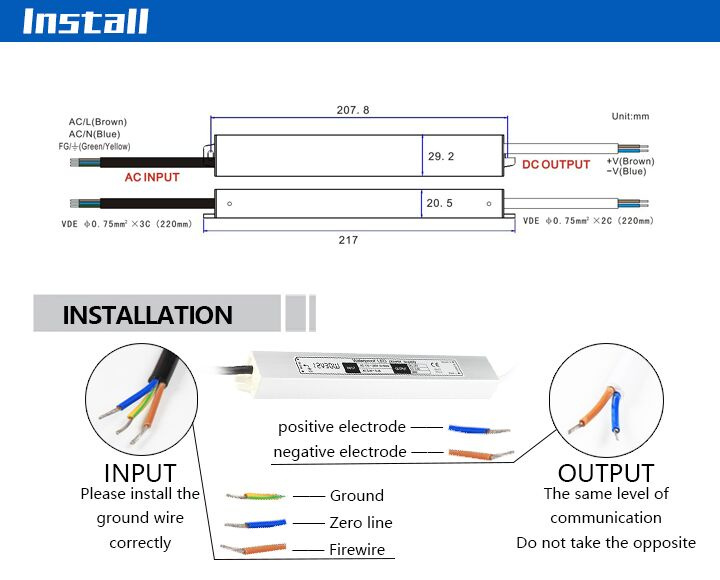

Installation
Company
Shenzhen Bond Optoelectronic Co., Ltd. is a professional manufacturer specializing in various LED modules, LED strip,led power supply and other related products. "With us your money is safe, your business is safe" is our company's business concept and service principle.
Through our working experience and manufacturing technical capabilities, our company has already obtained UL CE ROHS Certification. Our R&D Department is constantly researching and developing new and innovative lighting series products for the ever-changing market needs. We handle the entire process from material purchasing to product shipping, with quality controlled by our company. Our quality commitment is "There is no best, only better". Customer satisfaction is our goal.
Payment Items
T/T ; Western union ; paypal ; L/C ; Trade on alibaba
Package
50pcs /carton
Dimension :207.8*29.2*20.5mm(L/W/H)
Weight: 0.26kg/pcs, 50pcs/carton /net weight :13kg/carton / gross weight : 14kg/carton
Shipping
DHL ; UPS ;TNT ;FedEx ; ARAMEX; by sea ,air and etc;Door to door service
Support
CE ROHS Certification
Accept OEM ;ODM order
Small MOQ
Accept urgent order , hot sale products in stock can send directly
Contact us
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 1-2 weeks for order quantity more than 3000PCS Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production. Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products. Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
