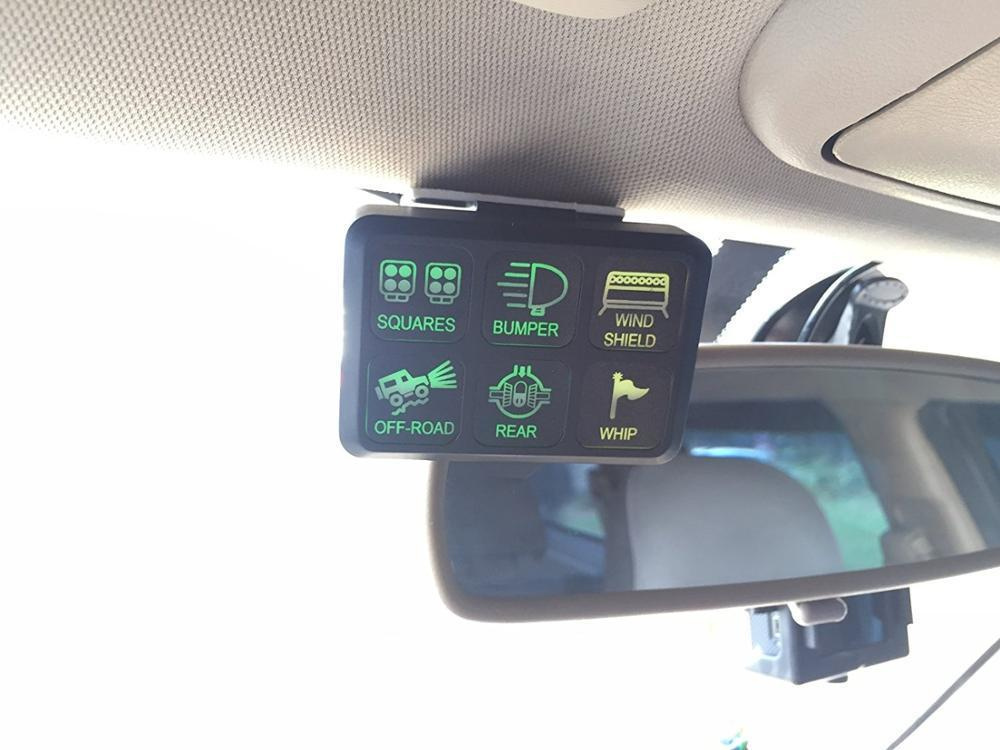

DC 12V 6 gang on-off Touch-Sensitive Screen LED Control switch panel with Wiring Kit universal for car



Product features

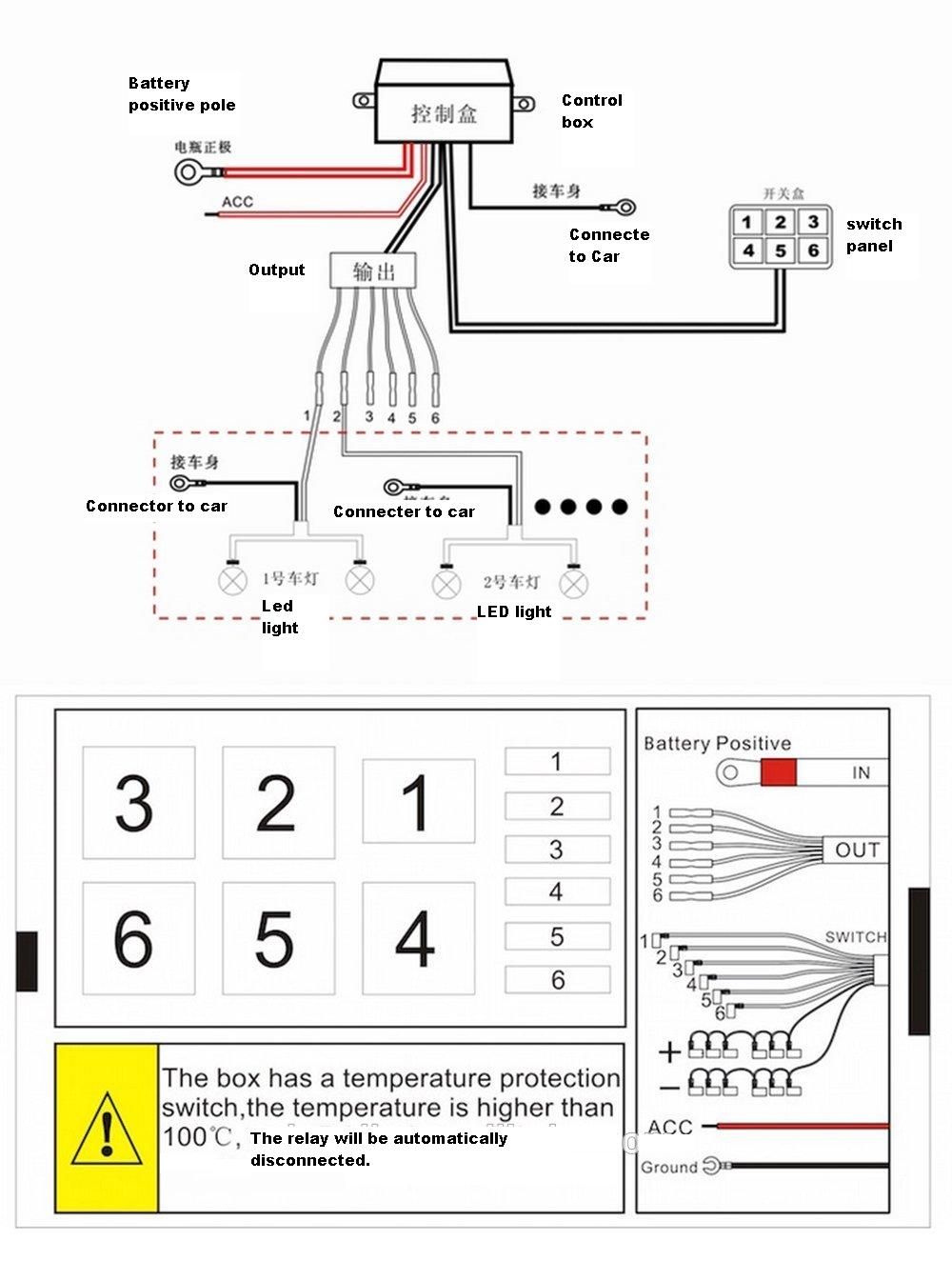

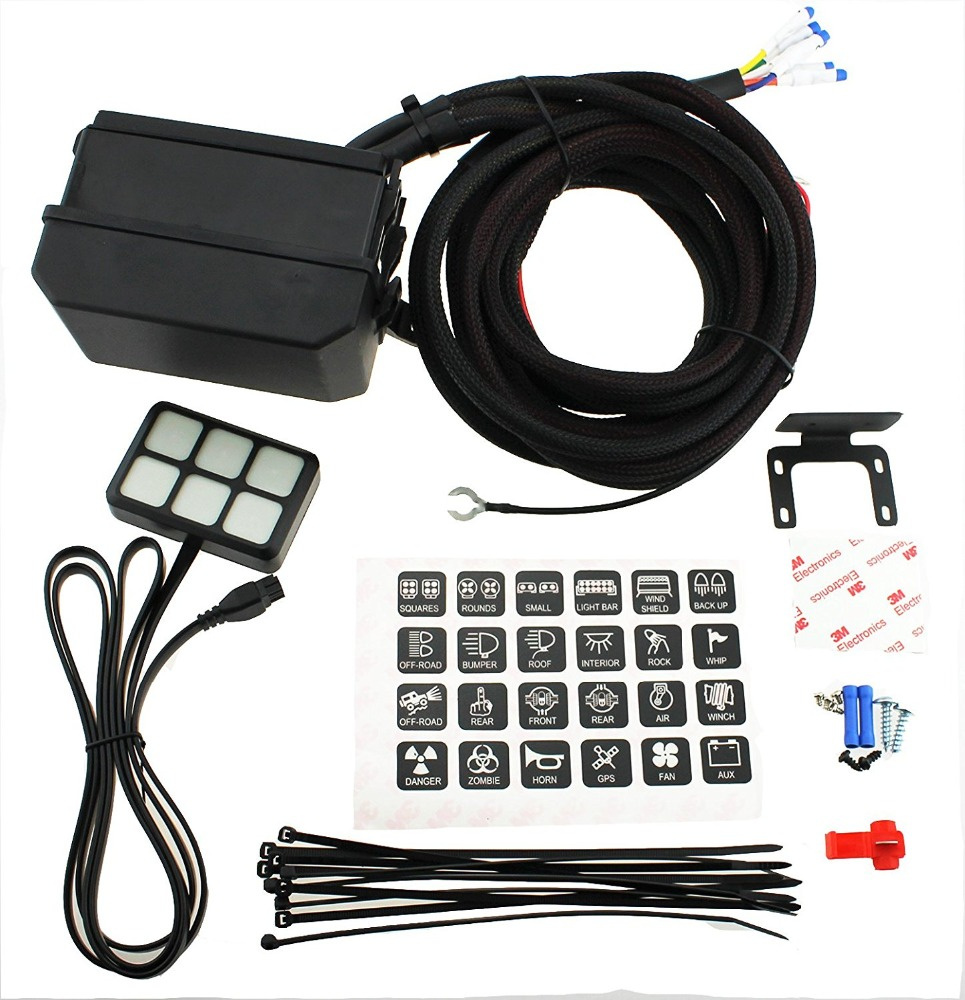

• It includes 12V Control on/off switch panel,relay wiring kits,mounting hardware and wiring instruction.
• Compact sleek & Water-resistant design, control all your devices (up to 6) on 1 panel. Idea for dashboard/console improvement to Replace Toggle/Rocker/Button switches, do not worry about it's messy anymore

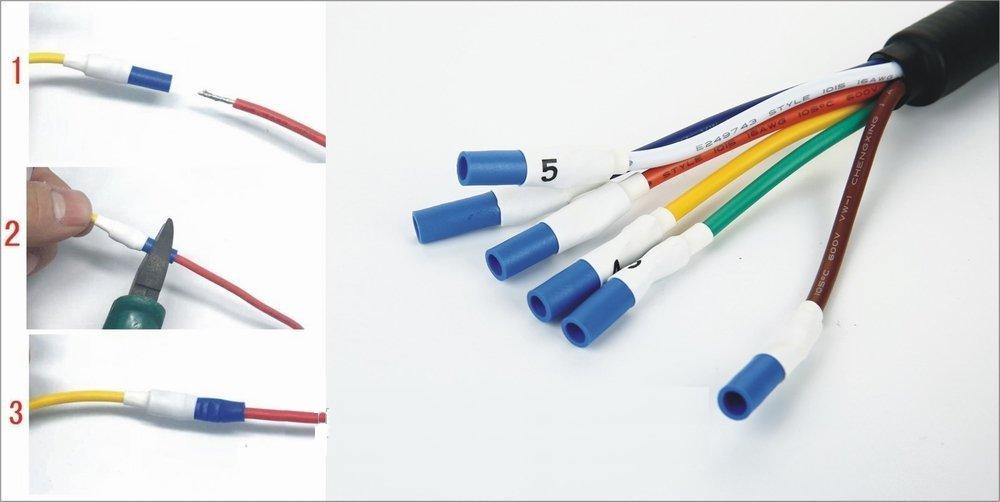

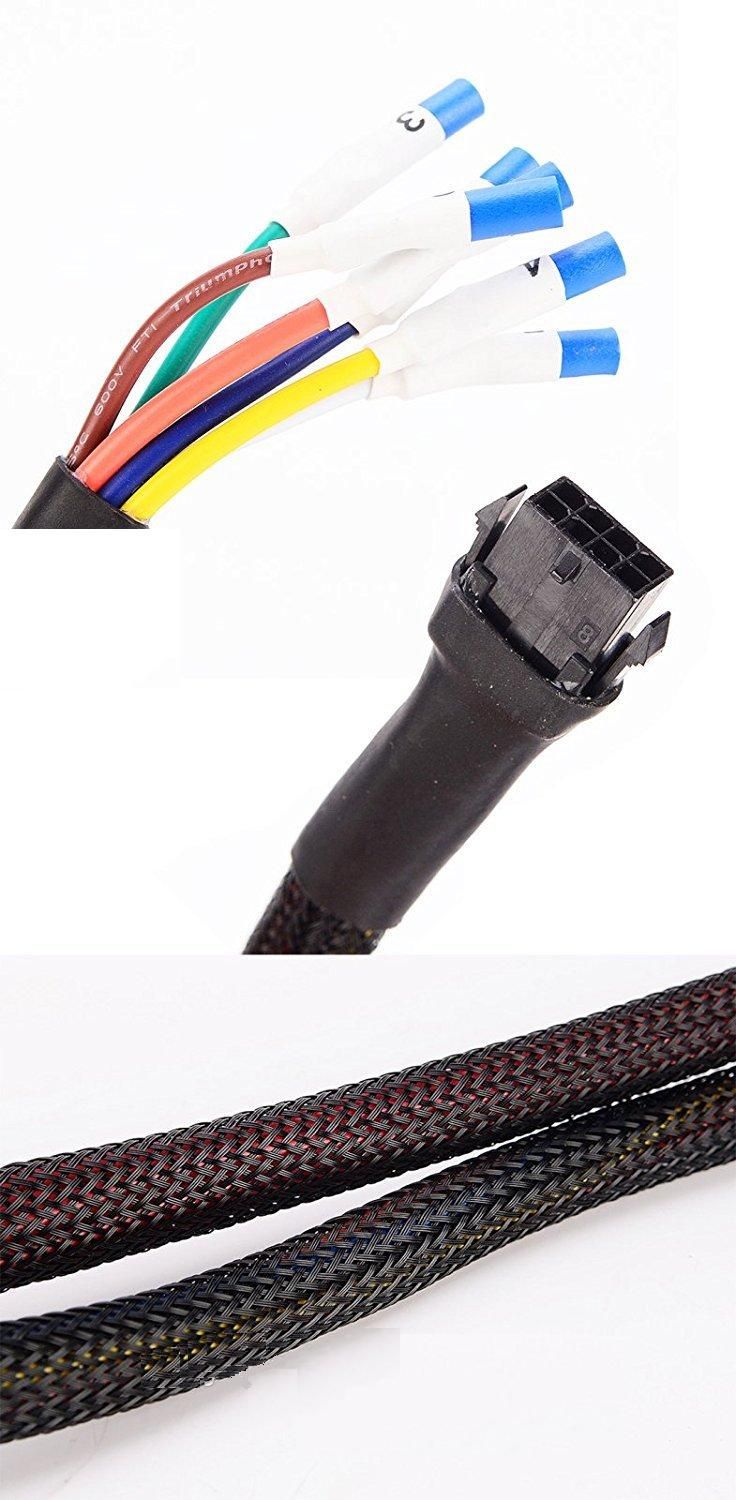

• All wires are wrapped in high temp abrasion resistant nylon braided sleeving. Easy install, without damaging the vehicle.
• The box has a temperature protection switch ,when the temperature is higher than 212F(100C),and all the relays will be automatically disconnected

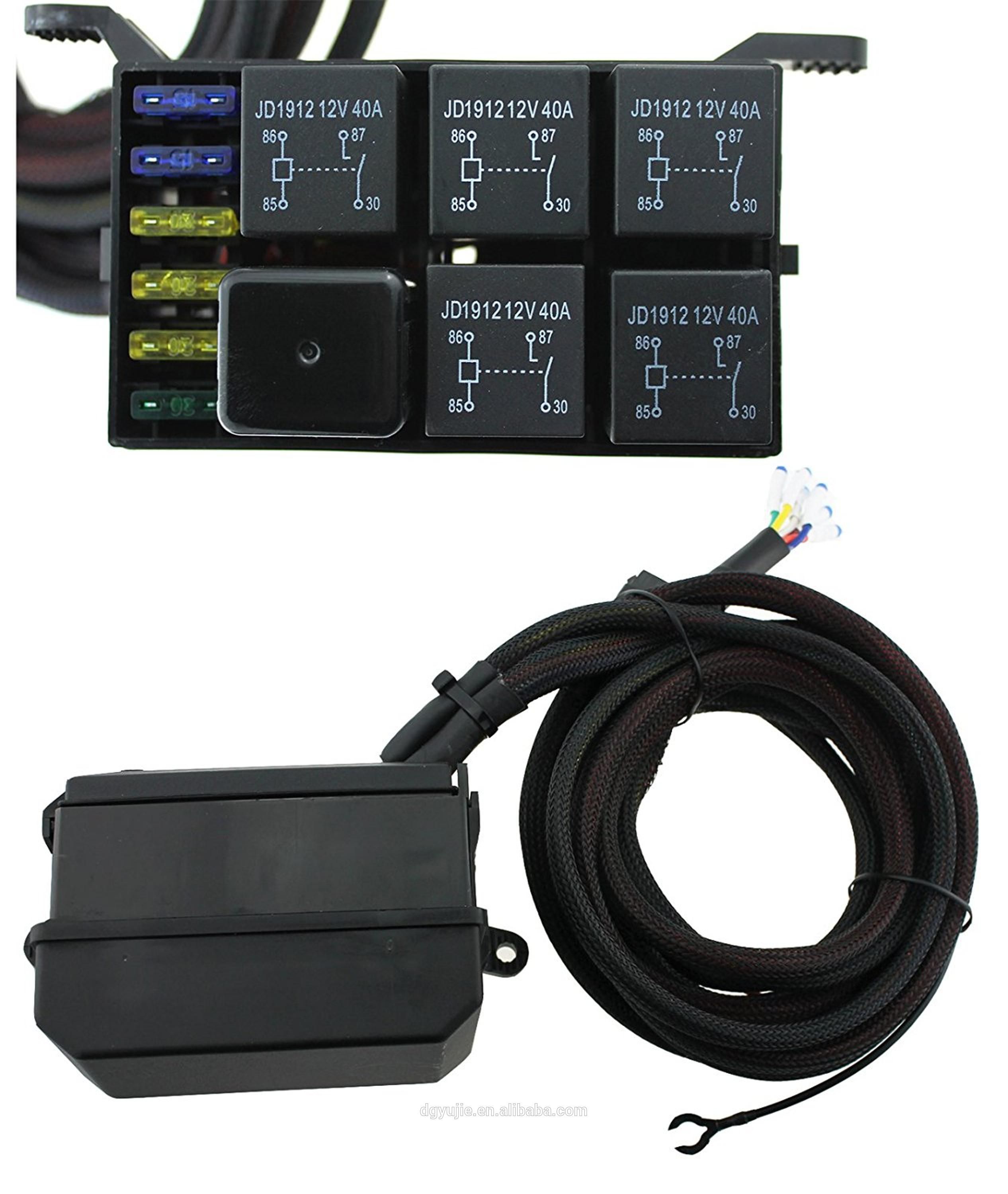

• 6pcs 40A relay,1pc 30A fuse,3pcs 20A fuse and 2pcs 15A fuse.

Bullet Points
1. 6×LED illuminated Rocker Switch with rubber seals.
2. Easy to install: only put this in to the switch hole, fix it with screws and then you can begin to use it.
3. Blue LED light indicator and with a 2 USB charge slot can satisfy you all king of charging needs.
4. Switch are marine-grade; waterproof rating is 67 and approve Rhos and CE, Totally friendly-environment.
5. Fashionable design, and durable
Tech Specs:
Product material: ABS
Color: Black
Gross weight: 457,2g
Products dimension: 18*11CM
Maximum peak load: 12V 20A DC; 24V 10A DC
IP rating: 67
Rocker Switch: 6




Specifications

1.Single Pole Single Throw ON - OFF switch
2. Black hard surface rocker.
3.High quanlity and competitive price



Packaging & Delivery
Packaging Details:Delivery Detail:

50pcs in a polybag, 500pcs /normal cartons

7-10days





This high quality 12 volt Rocker switch it is a single throw ON - OFF switch designed to operate your 12 volt driving lights. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''. This is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure

  Labeled Boat Rocker Switch Carling lighted-hear diff lock
1. Panel Cutout Dimesion: 36.8x21mm
2. HXWXD: 42X24X40MM


Labeled Boat Rocker Switch Carling lighted-12volt power
1. Panel Cutout Dimesion: 36.8x21mm
2. HXWXD: 42X24X40MM
3. High quality and competitive price
4. MOQ: 50pcs

The pics of waterproof switch ON/OFF With Lighter, Please kindly find as it below,


  Realisation of a wide range of different swtich function 12V/24V
--- Make contact / Changeover contact
--- Monentary contact /Maintained contact
--- Blocking function
--- Hazard light
