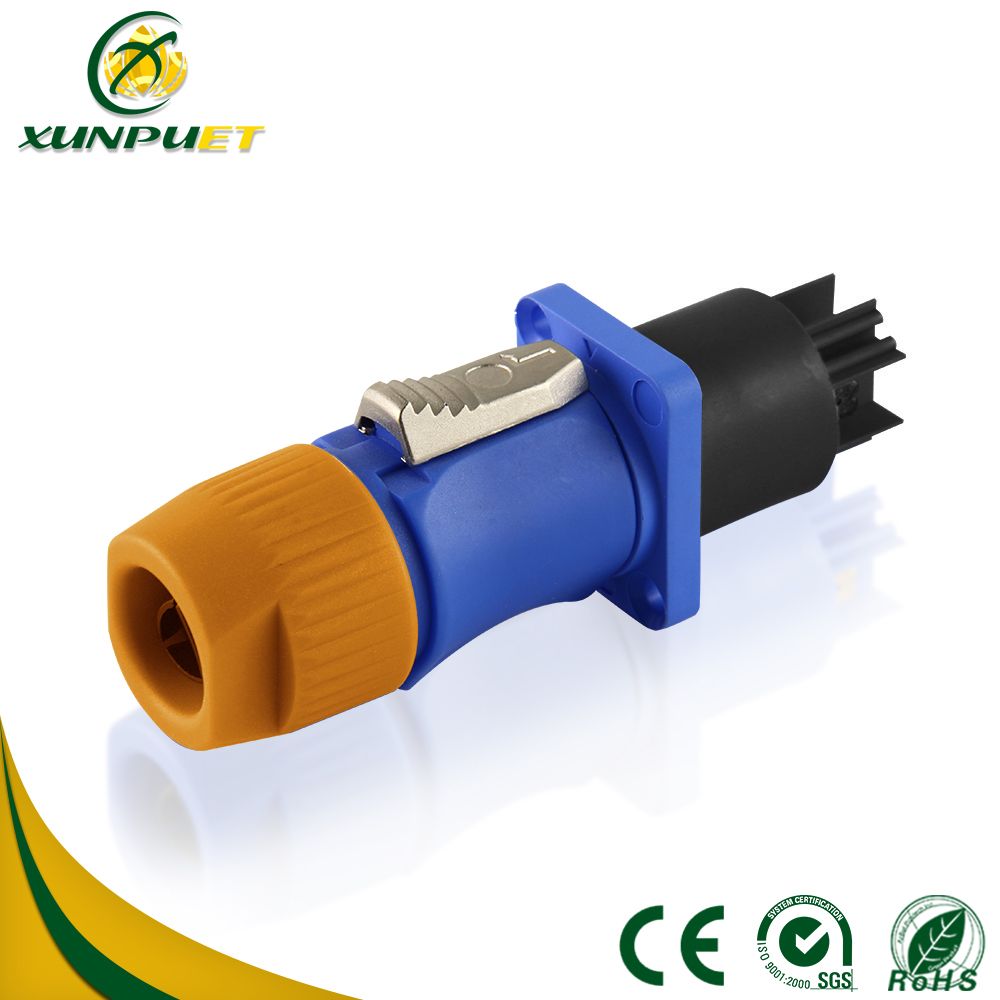

DC/AC Board LED Outdoor Display Electrical Wire Cable Connector
| Price: |
US $ 1.12-1.2/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T |
DC/AC Board LED Outdoor Display Electrical Wire Cable Connector
Product Description: | Product name | LED Outdoor Display-5 |
| Operating temperature | -25 ° C to 105 ° C |
| Conductor contact | Copper, gold plated |
| Storage temperature | -25 ° C to 85 ° C |
| Conductor wiring | 2.3.4 core Screws are screwed / welded |
| 5.6.7.8 core Welding type |
| Atmospheric pressure | (86-106) KPa |
| Connection method | Male and female thread connection |
| Joint shell shell core | Nylon PA66, 125 ° C |
| Wire material | PVC line, rubber line, silicone line |
| Waterproof seal | silicone rubber band |
| Plug the package | PVC / nylon PA6, 125 ºC |
| Waterproof Level | IP67 |
Technical Parameters| Number of cores | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Rated current(A) | 15A | 15A | 10A | 5A | 5A | 5A | 5A |
| Rated voltage(V) | 250V | 250V | 250V | 110V | 110V | 110V | 110V |
| The withstand voltage (AC. V) 1 min | 1500V | 1500V | 1500V | 1000V | 1000V | 1000V | 1000V |
| Contact resistance mΩ | 2 | 2 | 2 | 5 | 5 | 5 | 5 |
| Contact with a diameter(OD) | 2*Ø1.5 | 3*Ø1.5 | 4*Ø1.5 | 5*Ø1.5 | 6*Ø1.5 | 7*Ø1.5 | 8*Ø1.5 |
| Insulation resistance (m Ω) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Wire Gague | <=1.5mm2 | <=1.5mm2 | <=1.0mm2 | <=0.5mm2 | <=0.5mm2 | <=0.5mm2 | <=0.3mm2 |
| Cable OD | 5.0-8.5mm |
| Mechanical Life | 3000 mating cycle |
| Operating Rating | PVC=-20~80ºC, PA66=-40~105ºC |
| Waterproof Level | IP67, IP68 |

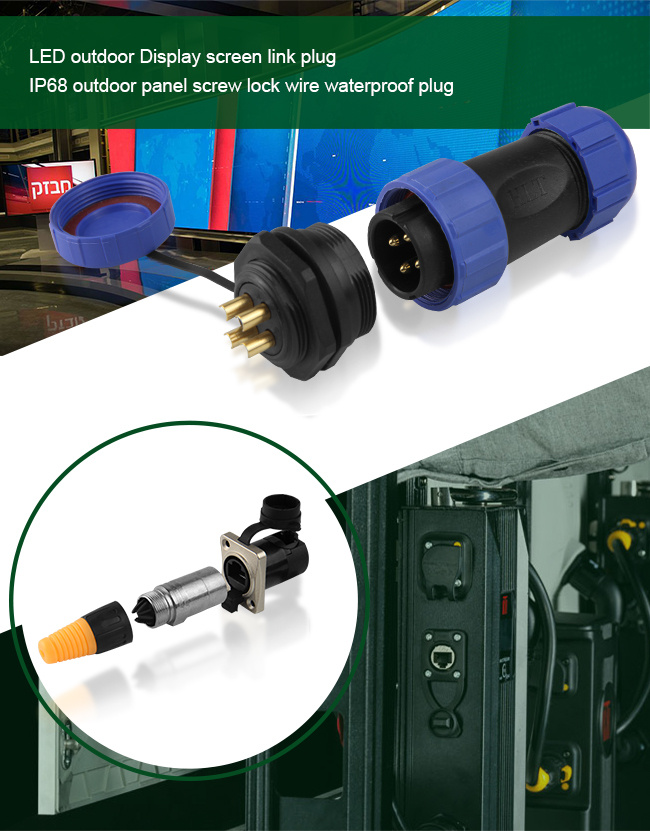

Features: This product is made of environmentally friendly nylon PA66 material, pin pure copper gold-plated, waterproof grade IP67 waterproof rating, ROHS, CE professional certification, professional engineering recommended hole guidance, easy installation and quick thread plug, male and female plug volume small, Beautiful appearance, high performance, assembly socket is very convenient, strong shell explosion-proof, waterproof. Widely used in: high-power outdoor lights, LED light bar, LED lighting, LED wall lighting, outdoor lighting, bridge tunnel lights, street lamps, outdoor exploration equipment, outdoor display and other places need to use waterproof joints. In the event of failure, there is no need to pinch the cable, plastic sleeve, etc., only need to unscrew both ends of the waterproof connector, very easy to repair the product.
Automation:
Robot, CNC machine tools, conveying system, automatic control device, electrical system, controller, sensor intelligent control system, man-machine interface, system integration

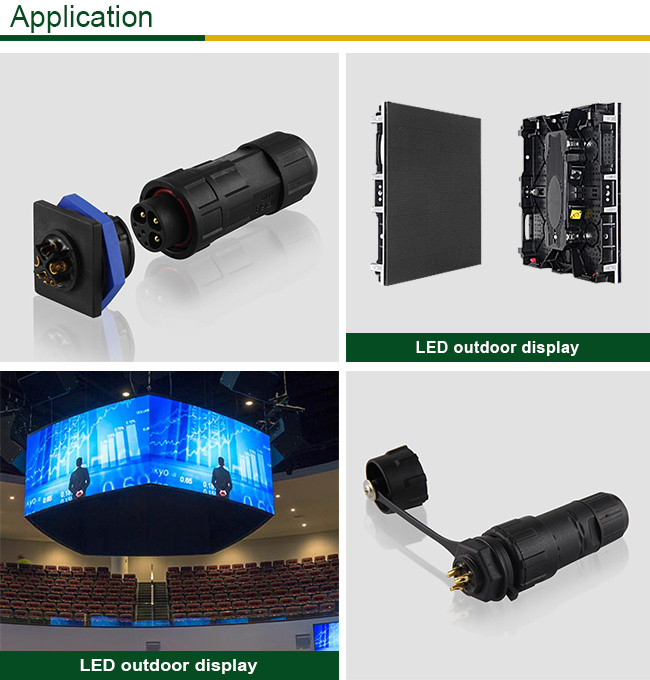

LED street lighting and LED outdoor display, etc. Third, the application areas:
Instrumentation:
Intelligent instruments, monitors, pressure gauges, chemical equipment, testing equipment, electronic measuring instruments, electric control instruments, pneumatic control instruments, etc.
Equipment:
Conveying equipment, Painting equipment, Lifting equipment, Injection molding equipment, Blow molding equipment, Packaging equipment, Lifts, Medical equipment, Electromechanical equipment, Construction machinery
Vehicles and facilities:
railway (train, high-speed rail), ocean (ship), sky (aircraft), land (car), communication
new energy:
Electricity, solar, oil, natural gas, water, wind, bio-energy,
LED: LED lighting applications, LED lighting, LED lighting, LED lighting, LED lighting, LED floodlight, LED lighting, LED lighting,
Carton Specifications: Standard K = K five-layer export carton
Carton Size: According to customer requirementsOur Company:Shenzhen Xunpu Electronic Technology Co., Ltd. is a high-tech enterprise specialized in the research and development, production and sales of all kinds of photoelectricity, shared bicycle and electric vehicle connector, and is committed to providing all the connector technology solutions for enterprises. The company's products are rich, more than 60 series, more than 300 varieties, more than 800 specifications, widely used in automation equipment, robots, LED lighting, LED lighting, LED display, communications, electric bicycles and car charging pile and other fields , Some of which products are exported to foreign markets. Companies focus on product quality, customer focus, to provide quality products excellence in quality, and adhere to the quality, integrity, professionalism, innovation for the purpose, always sincere and thoughtful, thoughtful and standardized services, customers continue to develop, provide high-quality Excellent product. FAQ:Q: What is the MOQ ?
A: MOQ is 100pcs. However, it is flexible as your requirement.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Guangdong province of china. From home or abroad, are warmly welcome to visit us!
Q: How can I get some samples?
A: We can send the samples by express
Q: How does your company do regarding quality control?
A: We have a very strict QC system. Our inspectors have been closely monitoring the production process from the selection of raw materials to the final step of the finished products
Q: Can I customize items I like, such as to print our own logo, or to alter the design?
A: Yes, we offer OEM/ODM service. Please contact us or our sales representative to check with the details.
| Prod Model: |
LED Outdoor Display-5 |
| Product Name: |
LED Outdoor Display-5 |
| Operating Frequency: |
Low Frequency |
| Voltage: |
250V |
| Rated Current: |
5-15A |
| Number Of Pole: |
2.3.4.5.6.7.8 |
| Interface Type: |
AC / DC |
| Shape: |
Round |
| Production Process: |
Injection Molding |
| Features: |
Waterproof |
| Packing: |
Carton |
| Gender: |
Male to Female |
| Application: |
LED Outdoor Display |
