DC Leakage Current Sensor / Transducer Used for Leakage Monitoring System
| Price: |
US $ 0.1-0.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Principle DC Leakage Current Sensor develops based on magnetic modulation closed loop principle, to measure tiny current (mA level). DC leakage current measuring range can reach 0~±200mA.
This sensor is used to measure current of signal system, circuit, and leakage monitoring system, as well as to measure current differential.Feature* Electromagnetic induction closed loop principle
* Apply unique patented technology for measure tiny current (mA level)
* Supply voltage: DC ±12~15 V Advantages * Easy installation * Can be customized
* No insertion losses * Low power consumption
* Wide current measuring range * High immunity to external interferenceApplications * The current detection of the lift * DC panel detection
* The signal system * Current differential detection
* AC variable-speed drive/ Servo drive * UPS and Inverter applications
* Leakage detection * Circuit detection

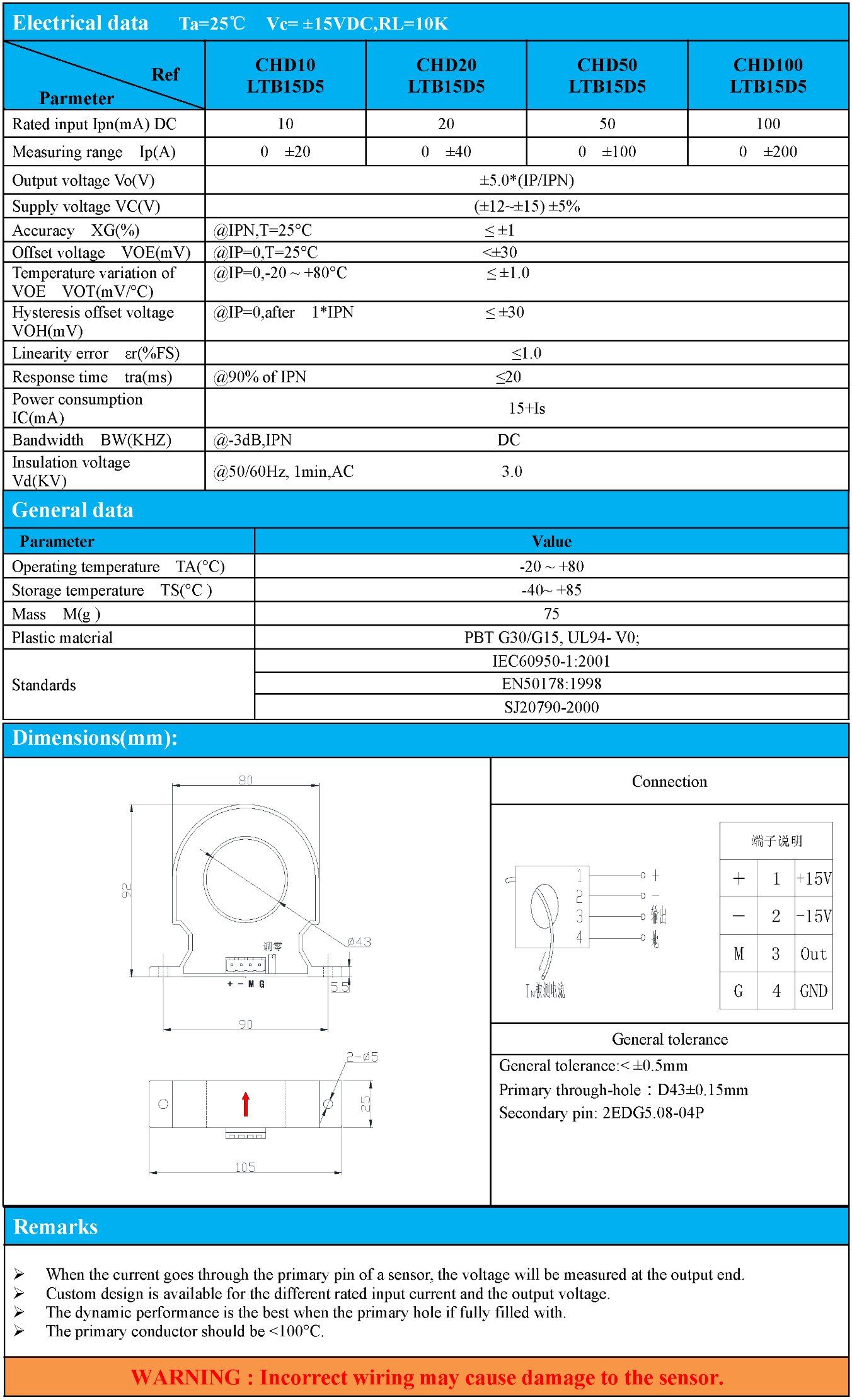

* Insulation Resistance testSpecification
Note * We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !!* Please let us know what kind of model, working voltage, input & output signals, mounting size.
* Or tell us your techincal requirement for the sensor selection.
* OEM/ODM is welcomed.
CHEEMI TECHNOLOGY CO.,LIMITED.
Certification: ISO9001, CE, ROSH.
( Your reliable sensor-solution partner for Hall Current & Voltage Transducers, Proximity Switches/sensors, RTD Temperature Sensors, Current Transformers, Pressure Transmitter, Liquid Level Transmitter. )
Address: 22 Building, XianlongWan, Xianyin South Road, Qixia District, Nanjing City, Jiangsu Province, China.
Post code: 210000
Tel: +0086-025-85996365
Web: www.cheemi-tech.comPackage * All our sensors will be well packed with bubble & carton. (Bubble packing→4 small carton→1 big carton)
* You can choose your own label(Screen Print or Laser Engraving).
* Can be netural packing or OEM.
Shipping * Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country. Warranty * We provide 1 year warranty.
* If the product is defective, please notify us within 3 days after receiving.
* All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.Our Commitment * Better Price than other suppliers for you because of Factory Direct Sale;
* Better Quality than before caused by our 10+ years experience about sensors;
* Fast Delivery made by our Enthusiasm;
* Timing Reply in 24 hours all about our TEAM's Passion & Patience.
| Prod Model: |
CHD_LTB15D5 |
| Rated Input: |
DC 10/20/50/100mA |
| Measuring Range: |
0~+-200mA |
| Supply Voltage: |
DC +12.0~15V |
| Output Voltage: |
+-5.0V |
| Offset Voltage: |
@IP=0,T=25c <+-30mv |
| Power Consumption: |
15mA |
| Mounting: |
D20.0mm |
| Plastic Material: |
PBT G30/G15, UL94-V0 |
| Material: |
Mixture |
| Application: |
Insulation Resistance Test |
| Certification: |
Ce, RoHS, ISO |
