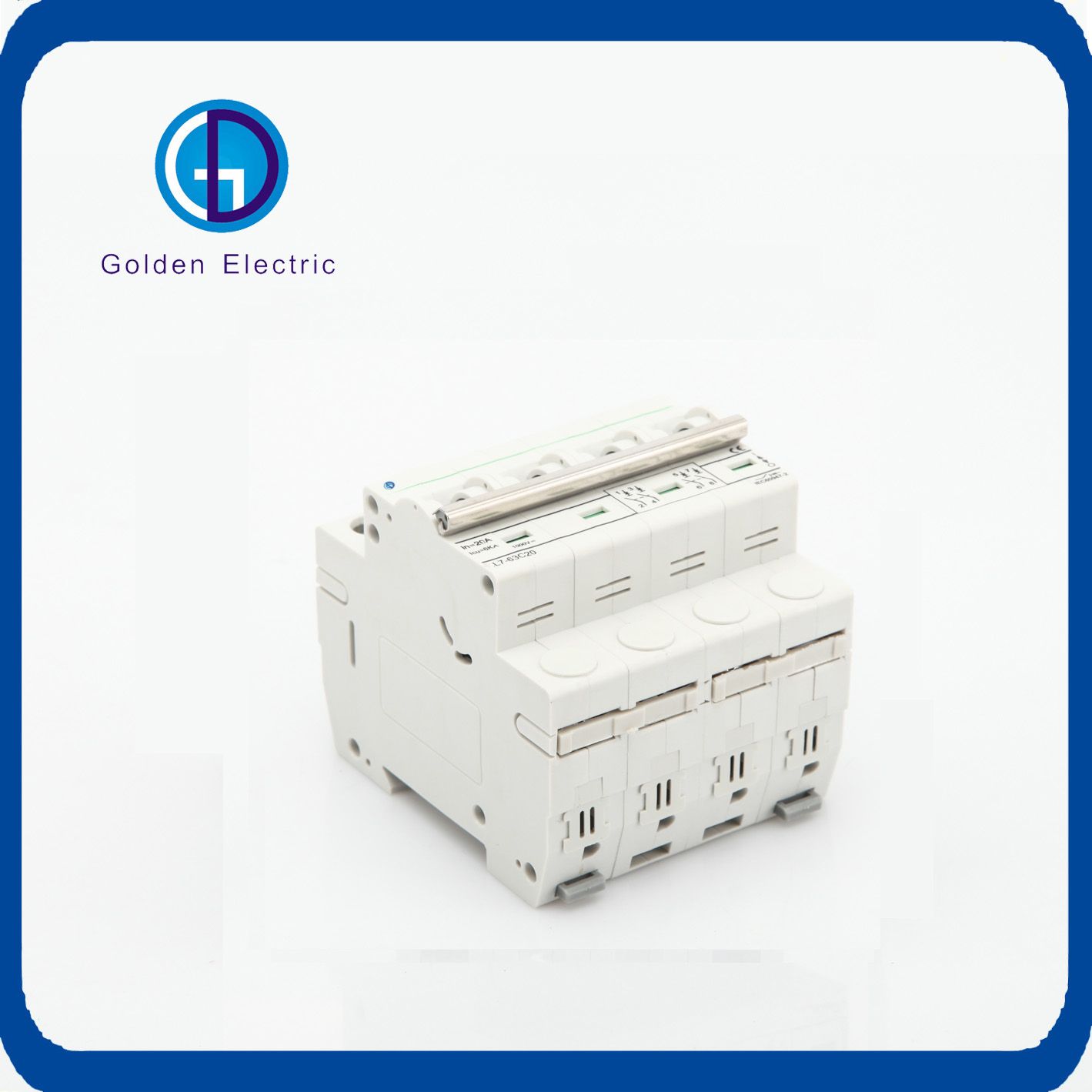

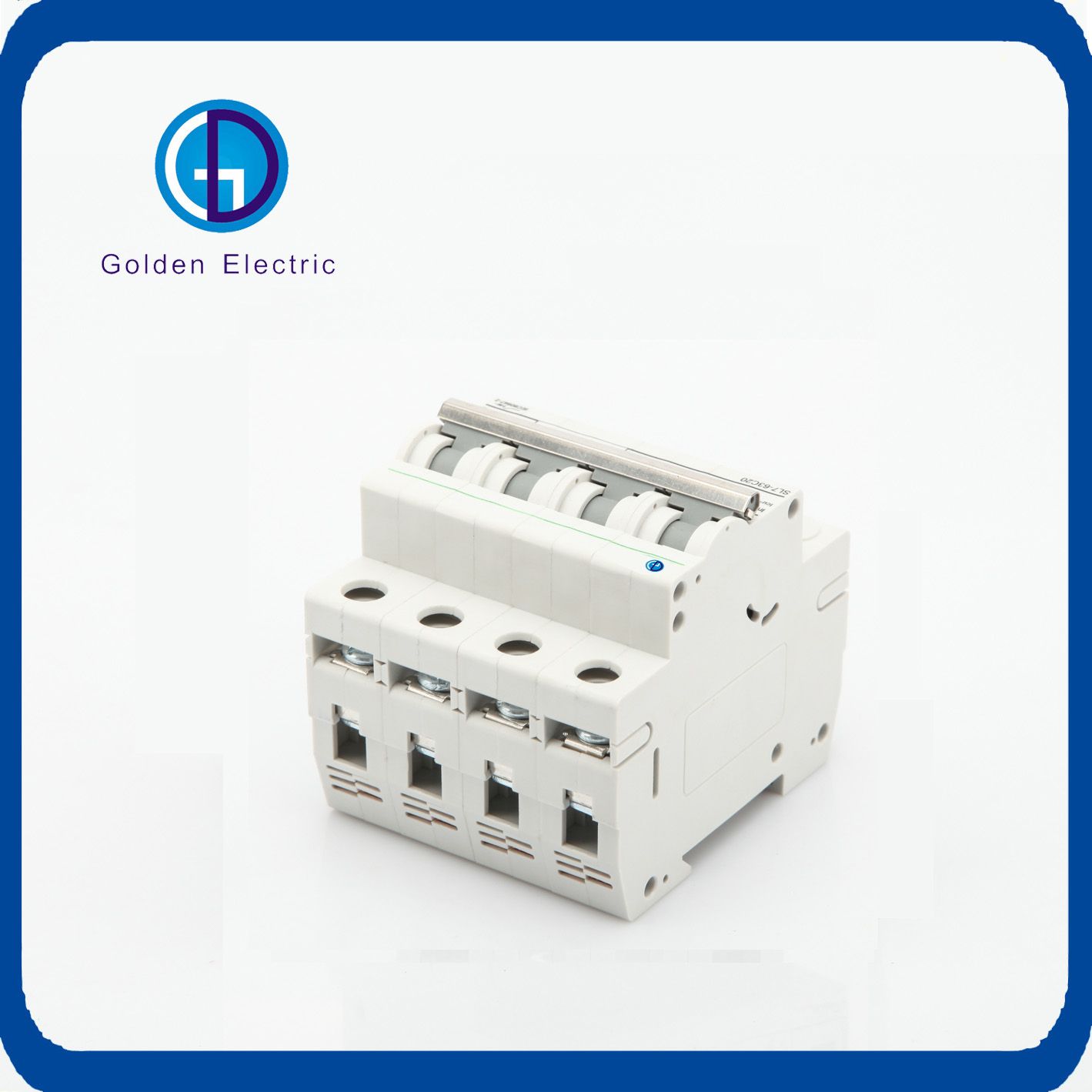

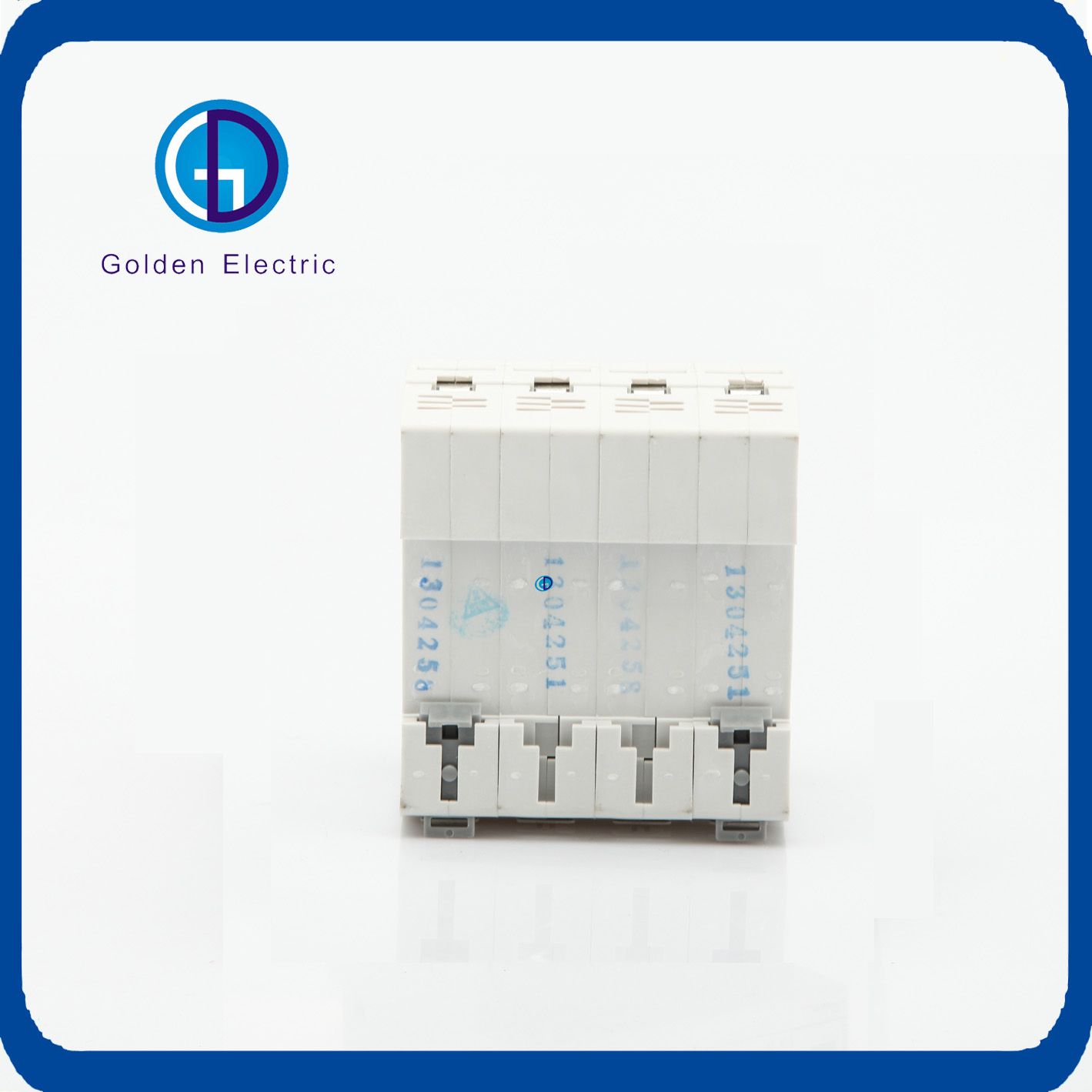

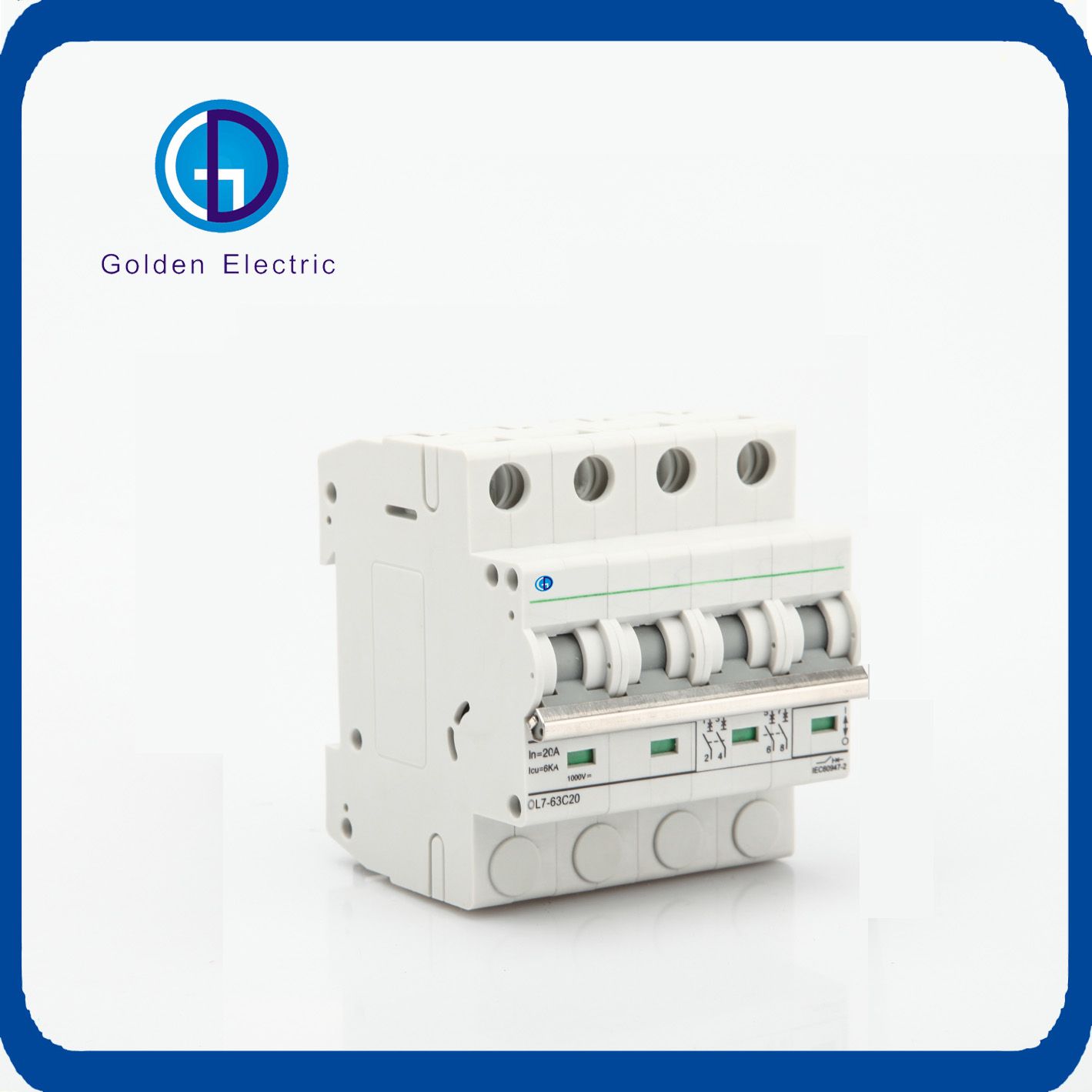

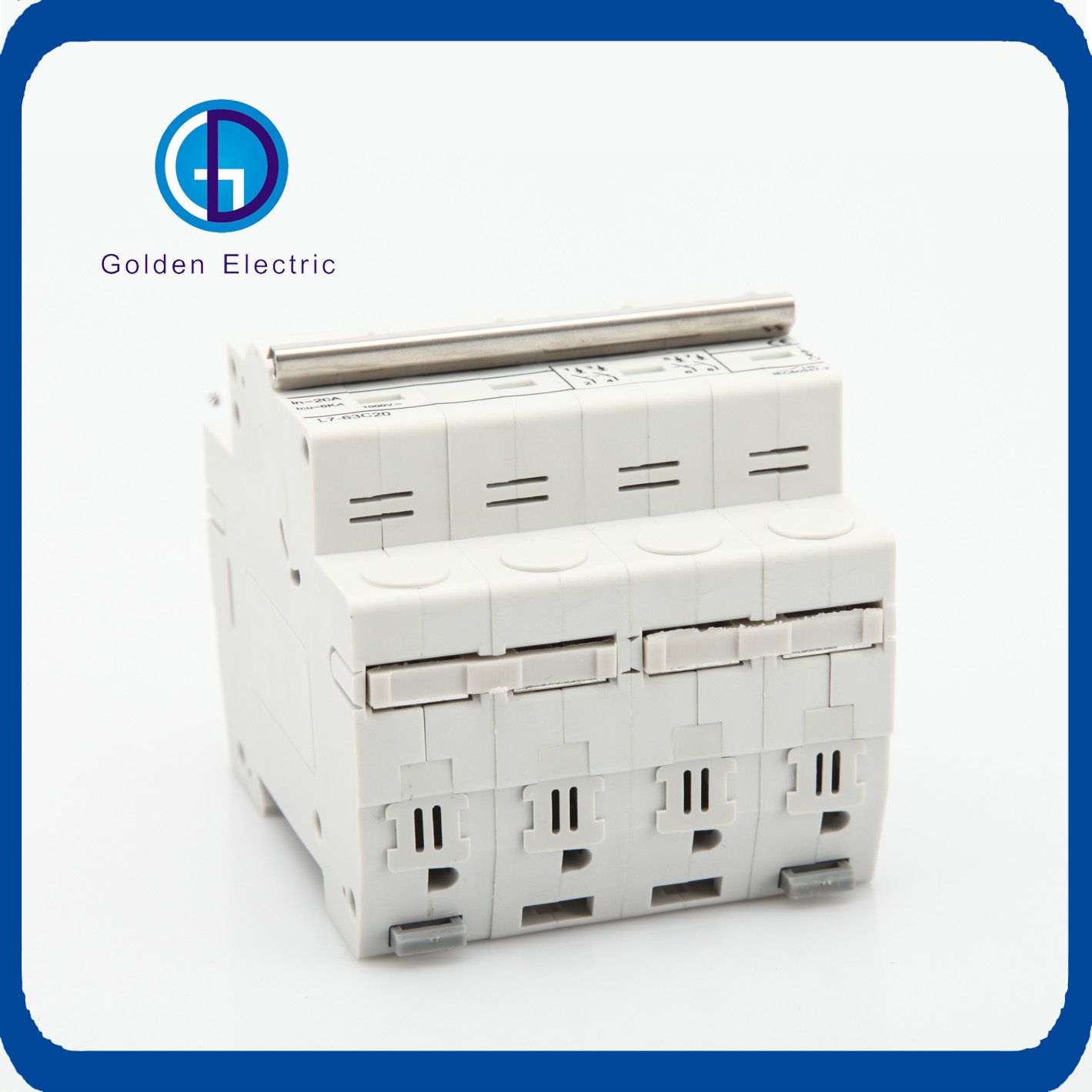

DC MCB for Solar Inverter System
| Price: |
US $ 8-20/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
DC1000V 4 Pole 6A-63A DC Circuit Breaker DC MCB for Solar Switch TUV SAA CE CertificateDC1200V 63A DC Circuit breaker for solar switch has passed IEC, TUV, CE certificateDC circuit breaker's ApplicationGL7-63 Series DC1200V 63A DC Circuit breaker, apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products.StandardProducts according IEC60947, GB14048.2, IEC60898.2 AS/NZS60898.1, AS/NZS60898.2, AS/NZ61009Standard.| Technical Data | IEC 898 |
| Standards | 1P/2P/3P / 4P |
| Poles | C |
| Magnetic tripping characteristics | 6 10 16 20 25 32,40,50,63A |
| Rated current(A) | 6kA |
| Rated short-circuit capacity(Icn): | DC250V DC550V DC750V DC800V DC1000V DC1200V |
| Rated voltage | 6kV |
| Rated withstand voltage (Uimp): | 1000 |
| Rated insulation voltage(Ui): | Yes |
| Contact position indication | 3 |
| Energy limiting class: | >2000 |
| Electrical Life: | >1500 |
| Mechanical Life: | Screw terminal |
| Connection terminal: | Pillar terminal with clamp |
| 1~16mm |
| Connection capacity: | Symmetrical DIN rail 35mm |
| Installation: | Panel mounting |
| OF: Auxiliary contact |
| Accessories: | FB: Auxiliary alarm |
| QY: under/over volage protector |
| FL: Shunt release |
Overload Characteristic| Test | Type | Current | Start State | Trip / Not-trip
Time Limit | Expected
Result | Note |
| a | c | 1.05 ln | Cold | t ≥1h | Not-trip |
|
| b | c | 1.30 ln | Foollows test a | t<1h | Trip | The current will rise to expected value within 5S |
| c | c | 7 ln | Cold | t ≥0.1s | Not-trip |
|
| d | c | 15ln | Cold | t<0.1s | Trip |
|
| Prod Model: |
GL7 |
| Product Name: |
AC/DC Series Moulded Case Circuit Breaker MCCB |
| Rated Current: |
63A 80A 100A 125A 250A 160A,200A,225A,250A,400A, |
| Ue Rated Operating Voltage(DC): |
3p 750V/4p 1000V |
| Rated Insulation Voltage Ui(VDC): |
DC1000V |
| Rated Impact Voltage Uimp(Kv): |
8kv |
| Ultimate Breaking Capacity ICU(Kv): |
25kv |
| Trip Type: |
Therminal-Magnetic |
| Ambient Temperature: |
-20~70 |
| Altitude: |
2000m |
| Instalation: |
Fixed,Plug in |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
4 |
| Certification: |
CCC |
