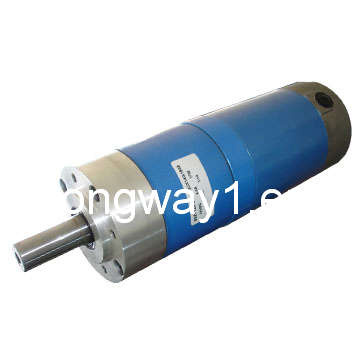

DC Planetary Gear Motor for Automation

Name: DC Planetary Gear Motor for Automation
Brand: all-electronics-online.com
SKU: 612661335
Availability: InStock
Rating: 4.5 (69 reviews)

Price:	US $ 120/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	83ZYT139-82PLG1200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	12V,24V,90V
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Type:	Pm
Certification:	CE,Rosh
Brand:	Longway

Product Description

1. Diameter 82mm gearbox has a rated load of 120N. M
2. Motor wire can also comes at the bottom of the motor, if no remarks, manufacturer can do in either way.
3. The specifications can be designed according to the customer's requirement!

Reduction ratio	4	7	14	19	25	32	50	64	71	90	116	152	195	329
Number of gear trains	1	1	2	2	2	2	3	3	3	3	3	3	3	3
Length(L) mm	66	66	90.3	90.3	90.3	90.3	114.6	114.6	114.6	114.6	114.6	114.6	114.6	114.6
No-load speed r/min	500	286	143	105	80	63	40	31	28	22	17	13	10	6
Rated speed r/min	425	243	121	89	68	53	34	27	24	19	15	11	9	5
Rated torque N.m	0.9	1.5	2.7	3.7	4.9	6.2	8.8	11	12	16	20	27	34	58
Max.permissible load in a short time	40	40	120	120	120	120	240	240	240	240	240	240	240	240

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

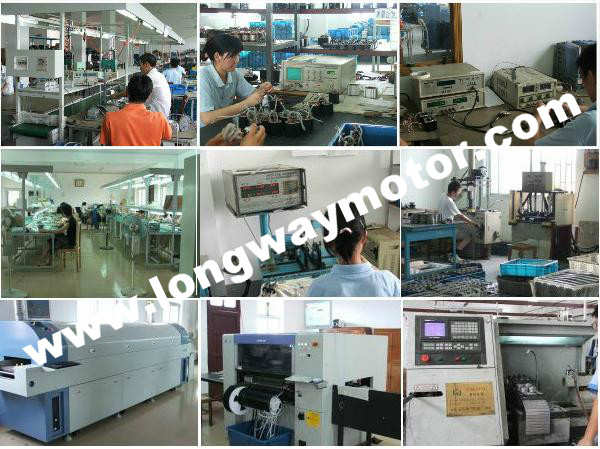

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
