DC Spur Gear Motor for Robots, Educational Devices

Name: DC Spur Gear Motor for Robots, Educational Devices
Brand: all-electronics-online.com
SKU: 635437975
Availability: InStock
Rating: 5 (72 reviews)

Price:	US $ 4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

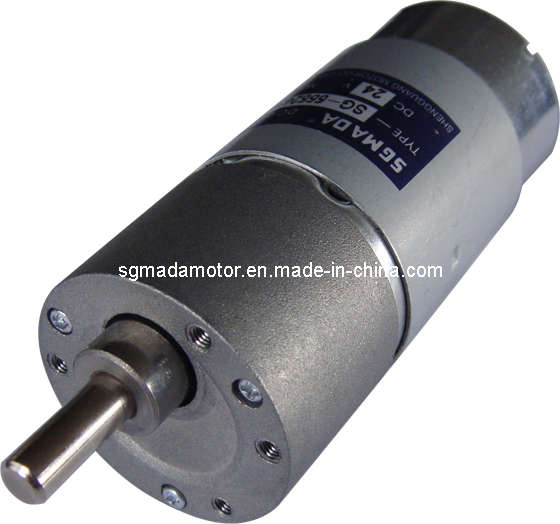

DC Spur Gear Motor SG-555 for robots,educational devices

1) Voltage: 12V-24VDC
2) Output speed: 11 to 1, 500RPM
3) Power: 3-30w

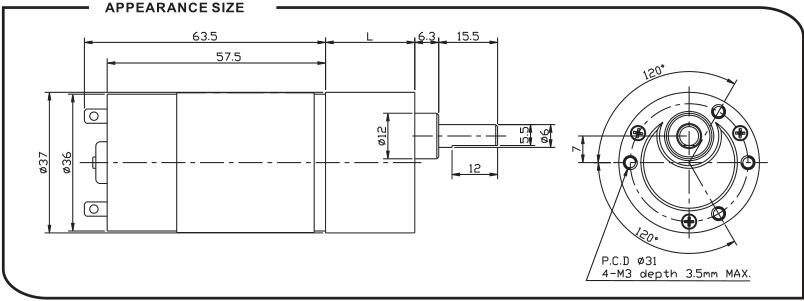

4) Motor dimensions: Diameter 28mm *53mm(max); Output shaft: Dia 17mm
5) Ratio: 1: 4, 1: 16, 1: 22.5, 1: 64, 1: 90, 1: 107, 1: 256, 1: 304, 1: 361, 1: 428 and 1: 509
6) Package: 100 pieces/carton; Carton size: 41 x 26 x 23cm; Net weight: 18kg
Application: Vending machines, welding machines, automatic door, automatic windows, automatic curtains,
Dispensers, robots, grill, bbq machines, . Etc...

Prod Model:	SG-555
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
37mm Diameter:	6mm Shaft
Motor Size:	36X50.8mm
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	Ce
Brand:	Sgmada

Ningbo Shengguang Motor Co., Ltd., established in 2001, is devoted to R&D, manufacturing and marketing of various of motors, such as DC geared motors, synchronous motors, planetary geared motors, shade pole geared motor, induction motors, worm geared motors and brushless motors, etc...Our products are widely used in household and office appliances, toys, roasters, vending, deposit, and arcade machines, timers, lamps, heaters, and many fields. Besides, we can research and develop new models as clients`request.

Shengguang has an experienced R&D team and skilled salesmen in motor industry. Based on the professional, devoted and pragmatic spirit, it strives for guiding and advocating of the consumption of motor products. With the faith of tenacity and tolerance, practice and innovation, sustainable development and honesty, it tries to become a sustainable development and harmonious modern enterprise. It pursues pragmatic, innovational and precise conception. It is believed that the excelent quality and competive price of our products will bring you more benefits.

If you are interested in our products, please contact us without any hesitation via

Looking forward to hearring from you soon. Hoping we can be friendly partners and good friends in the near future.
