| Prod Model: |
PB300P |
| Product Name: |

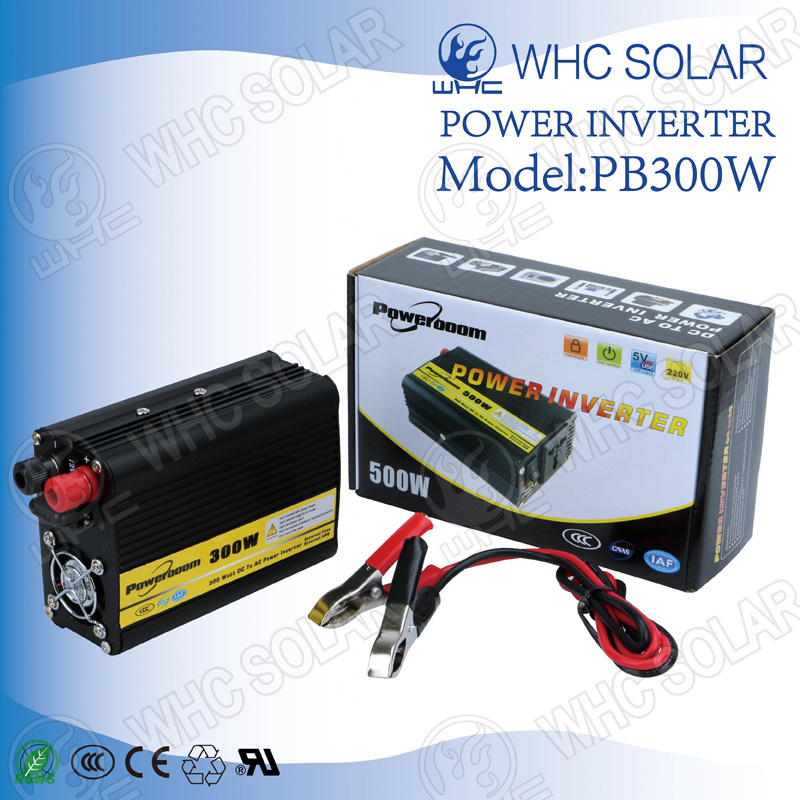

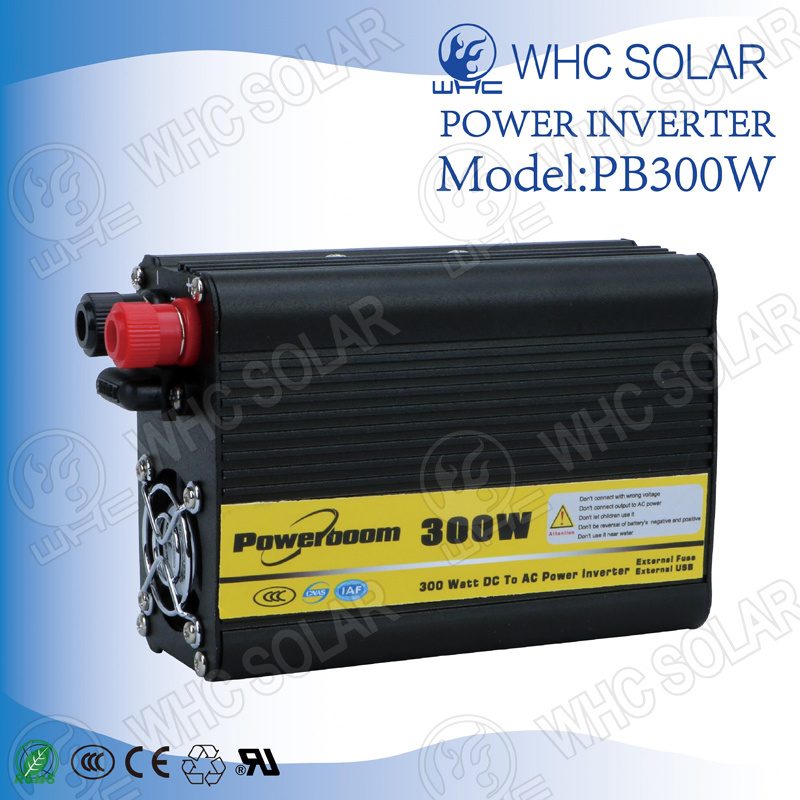

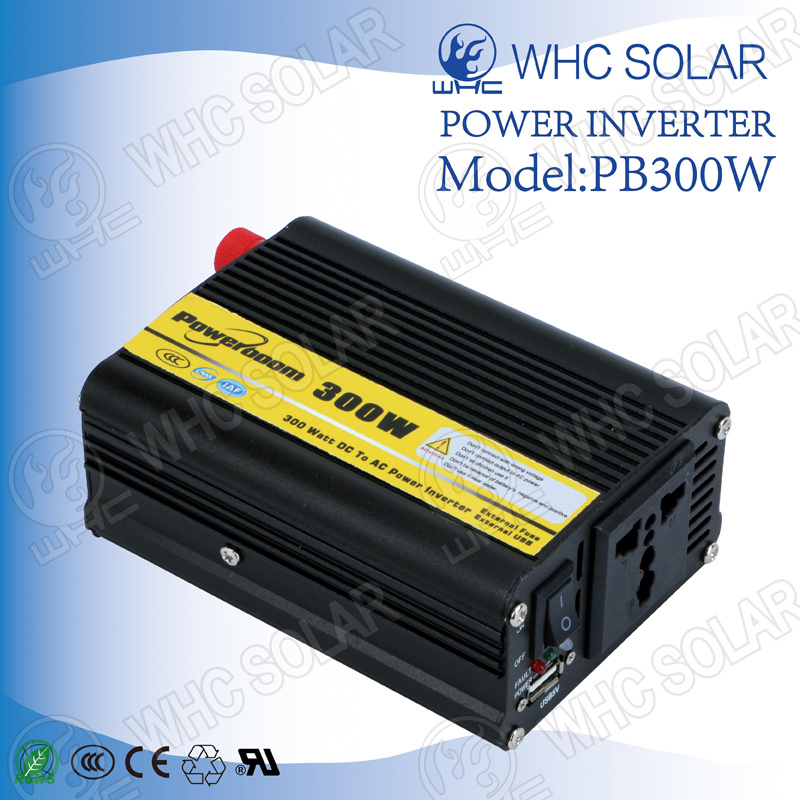

DC to AC High Frequency 300W Power Inverter |
Product Description
DC To AC high frequency 300W power inverter
Product Descriptionproduct features:• universal port ac output socket, the use of electrical appliances more diverse.
• additional usb port for easy digital product connection charging.
• waveforms are sine waves that facilitate the use of most electrical products.
the new aluminum alloy shell, durable, beautiful high-grade generous.
• advanced patch inverter circuit design.
• easy to operate, safe and reliable, quiet operation without noise, maintenance-free.
• provide cigarette lighter cable.
• with overload, overvoltage, under voltage, over temperature, short circuit intelligent security protection.
• complete protection of the inverter and equipment without damage to the car.
• low voltage protection for the battery, no damage.
product parameters | Model | PB-300P |
| Output | Rated power(Typ.) | 300W | 300W |
| AC Voltage | 220V | 220V |
| Frequency | 50HZ±0.5HZ | 50HZ±0.5HZ |
| Waveform | Square Wave under rated power(THD<3%) | Square Wave under rated power(THD<3%) |
| Input | Battery Voltage | 12V | 24V |
| Voltage Range(Typ.) | 10V-15V | 20V-30V |
| DC Current(Typ.) | 30A | 14.5A |
| Load Loss | ≤0.3A | ≤0.2A |
| Off Model Current | ≤0.8mA | ≤0.8mA |
Efficiency(Typ.) | ≥85% | ≥85% |
| Battery Type | Lead Acid Battery | Lead Acid Battery |
| USB | Output voltage | 5V (Optional) |
| Output Current | 500mA (Optional) |
| Others | Weight | Net Weight:0.40Kg Gross Weight:0.58Kg |
| Size | 152*95*55 mm(L*W*H) |
| Packing Size | 190*115*65 mm(L*W*H) |
| Appliance | Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc. |
Product Details
Company information
FAQ1. Q:Are you a factory or trading company?
A:We are a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Guangzhou, China. You are warmly welcomed to visit us.
3. Q:Do you have other products design for sale?
A:More products and designs please visit our website: http://www.whcsolar.cc
4. Q:What is your company's payment method?
A:Usually is T/T, Sample orders we recommend Western Union.
5. Q:What is your delivery time?
A:Usually 14-20 days.According to the product and quantity,delivery time will have different.
More Details,Please contact us freely~
