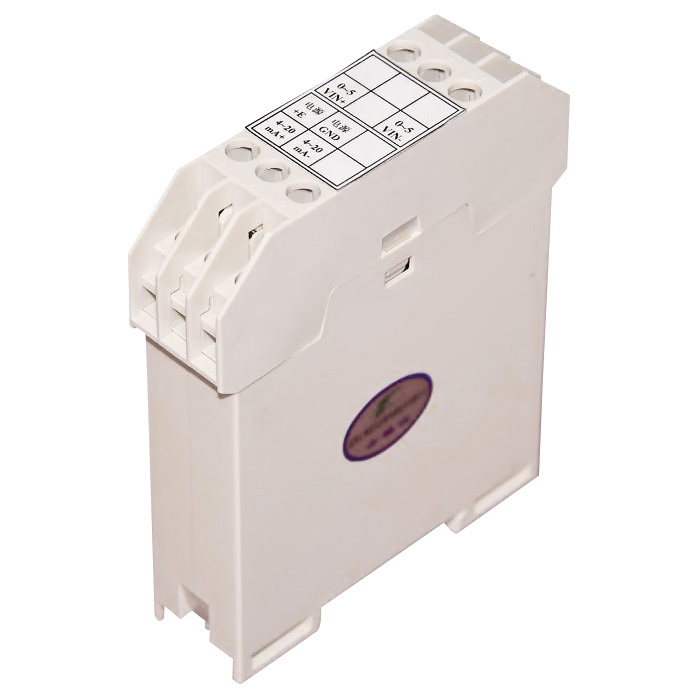

DC Voltage Transducer (D2 Series)

Name: DC Voltage Transducer (D2 Series)
Brand: all-electronics-online.com
SKU: 676773212
Availability: InStock
Rating: 4.4 (42 reviews)

Price:	US $ 45-58/Piece
Trade Terms:	FOB,CFR
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Using linear photoelectric isolation measuring principle.

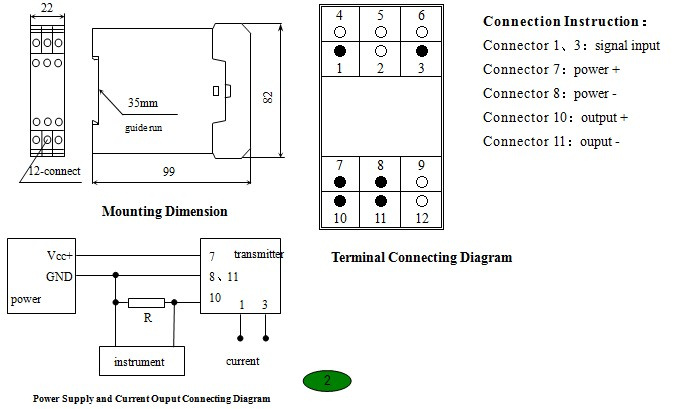

Terminal connecting input.
High accuracy with low temperature drift.
Linear measuring range: 0 ~ 120% of nominal input.
Input impedance: When VX≤ 1V, Ri≥ 50kΩ;
When VX≥ 1V, Ri≥ Vx× 10kΩ/V
Isolation: >1 KV DC/ min
Overload: 200% of nominal input, 1 minute.
Mean Time Between Failure(MTBF): >30000 hours
Various of power supply and output mode

Model	Accuracy	Input	Output Unit	Output	Responding Time	Static Power Consumption	Power Supply	Working Temperature (º C)
BDYG-Z2D21-XXV/	0.5	Terminal block input: 1V - 500V	VZ	5V	100ms	600mW	24V DC	-10 - 70
BDYG-Z2D25-XXV/	0.5		VZ	5V	100ms	500mW	12V DC	-10 - 70
BDYG-Z4D21-XXV/	0.5		IZ	20 mA	300ms	600mW	24V DC	-10 - 70
BDYG-Z4aD21-XXV/	0.5		IZ	4-20 mA	300ms	600mW	24V DC	-10 - 70
BDYG-Z4aD25-XXV/	0.5		IZ	4-20 mA	300ms	500mW	12V DC	-10 - 70
BDYG-Z2D23-XXV/	0.5		VZ	5V	100ms	3W	220V AC	-10 - 70
BDYG-Z4aD23-XXV/	0.5		IZ	4-20 mA	300ms	3W	220V AC	-10 - 70

Prod Model:	D2
Markets:	North America,South America,Eastern Europe,Western Europe
Display Type:	Displayer
IP Rating:	Customerized
