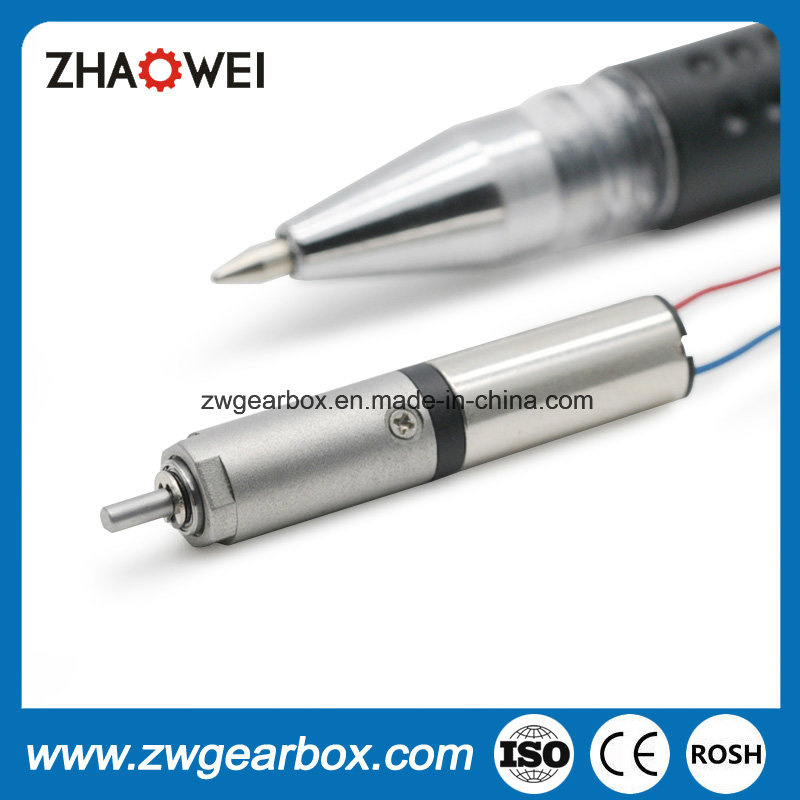

Diameter 6mm 3V Small DC Geared Motor

Name: Diameter 6mm 3V Small DC Geared Motor
Brand: all-electronics-online.com
SKU: 771482925
Availability: InStock
Rating: 4.3 (22 reviews)

Price:	US $ 8.5-12.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Diameter 6mm 3V Small DC Geared Motor

Product Description

Model: ZWBMD006006-711
Rated Voltage: 3V
No Load Speed: 26rpm
No load current: 40mA
Rated Speed: 22rpm
Rated Current: 100mA
Rated Torque: 296.9g.cm
Overall Length : 30.9mm
Max Rated Torque of Gear Box: 330g.cm
Max Instant Torque of Gear Box: 800g.cm
Gear Ratio: 711:1
Gear Box Length: 16.9mm

1)Specifications:

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length L1
	Rated	At No Load		At Rated Load				Overall Length L
	Voltage	Speed	Current	Speed	Current	Torque		Overall Length L
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWBMD006006-110	3.0	166	37	140	100	54.3	5.33	28.5	330	800	110.6	14.5
ZWBMD006006-148	3.0	124	37	105	100	72.8	7.14	28.5	330	800	148.1	14.5
ZWBMD006006-198	3.0	93	37	78	100	97.5	9.56	28.5	330	800	198.4	14.5
ZWBMD006006-266	3.0	69	37	58	100	130.5	12.80	28.5	330	800	265.7	14.5
ZWBMD006006-531	3.0	35	40	29	100	221.7	21.74	30.9	330	800	530.8	16.9
ZWBMD006006-711	3.0	26	40	21	100	296.9	29.12	30.9	330	800	711.0	16.9
ZWBMD006006-952	3.0	19	40	16	95	330	32.36	30.9	330	800	952.2	16.9
ZWBMD006006-1275	3.0	14	40	12	85	330	32.36	30.9	330	800	1275.2	16.9
ZWBMD006006-1708	3.0	11	40	10	75	330	32.36	30.9	330	800	1707.9	16.9

above specifications just for reference and customizable according to requirements.

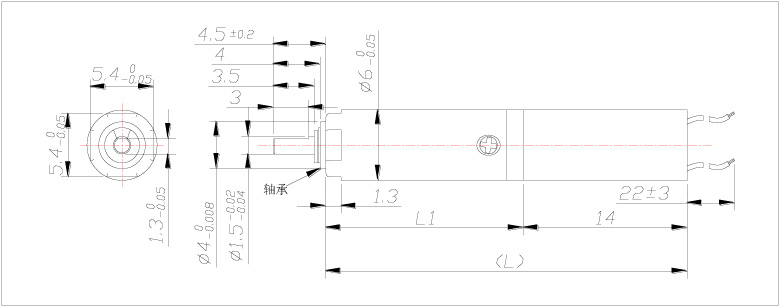

2)2D Drawing

3)Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder and etc.
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipments	OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models	radio control model, automatic cruise control, ride-on toy and etc.
Medical equipments	blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials	display, flow control valves and etc.
Electric power tools	electric drill, screwdriver and etc.
Precision instruments	monitor, optics instruments,automatic vending machine and etc.
cosmetic tool	eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.

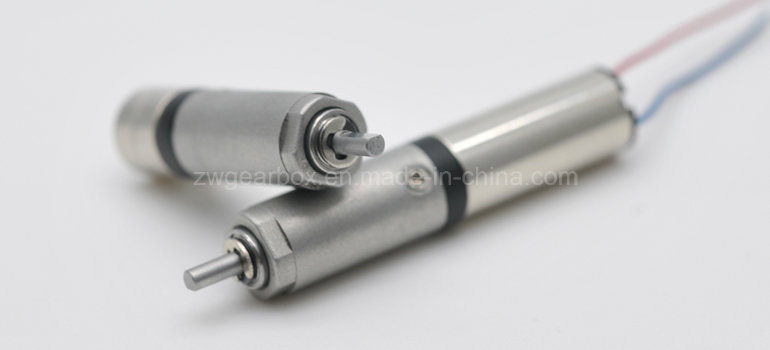

Product details show

Our Services

ODM & OEM
Gearbox design and development
Related technology support

Packaging & Shipping

1) Packing Details

packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.

2) Shipping Details

samples will be shipped within 10 days;
batch order leading time according to the actual situation.

Company Information

Shenzhen Zhaowei Machinery & Electronics Co., Ltd is a national grade high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to costomers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.

1) Competitive Advantages

18-year experience in manufacturing motor gearbox
Experienced Staff: average 7-year experience in R&D , ODM &OEM
International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Prompt Delivery: 15 working days after payment
Small Orders Accepted
Advanced equipments: Agie Wire cutting machines, Agie EDM, Makino, EDM, Roders CNC, Sodick and Sumitomo Precision Injection Machines, etc.

2) Main Products

Precise motor gear box reducer: diameter 4-40mm, Output speed: 5-2000rpm, Output torque: 10 gf-cm 50Kgf-cm;
Customized worm and gear transmission machinery;
Precise electromechanical motion module;
Precise component and assembly of plastic and metal powder injection.

Certifications

We Have passed to hold ISO9001, ISO14001 and TS16949.

and more...

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have strong R&D capability, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry .

Prod Model:	ZWBMD006006-711
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	3V
Gearbox Diameter:	6mm
No Load Speed:	26rpm
No Load Current:	40mA(Max)
Load Speed:	21rpm
Rated Load Current:	100mA(Max)
Max Rated Torque:	330g.Cm
Max Instant Torque:	800g.Cm
Gear Ratio:	711:1
Motor Type:	DC Geared Motor
Application:	Camera
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-Proof
Type:	Planetary Gearbox
Certification:	RoHS
Brand:	Zhaowei
