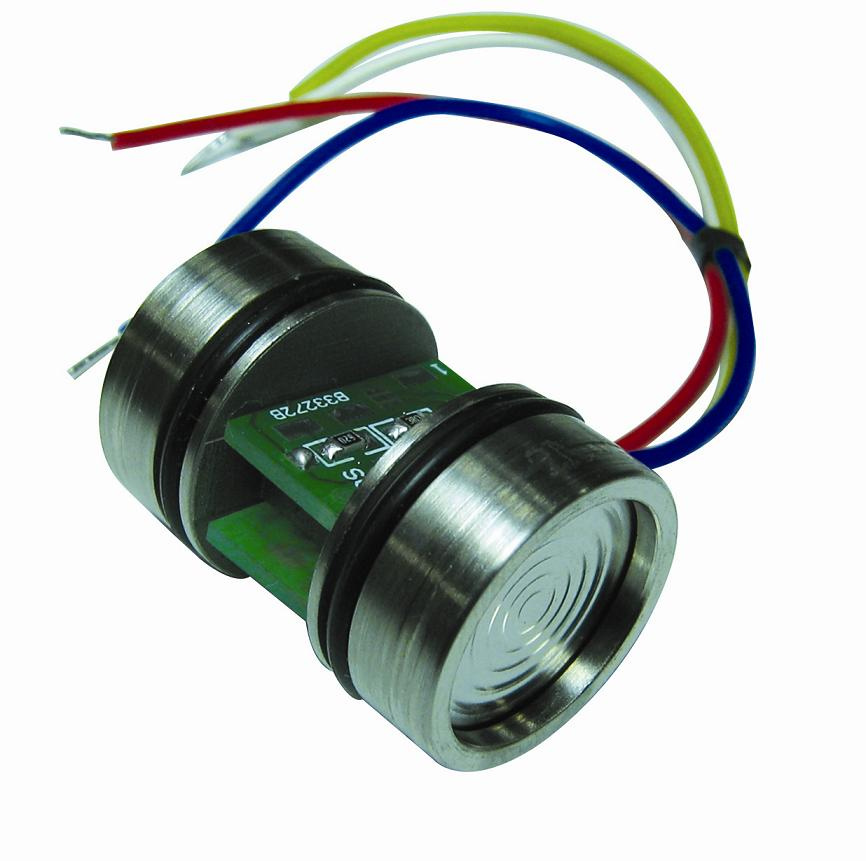

| Prod Model: |
HB-D10 |
| Markets: |
North America,South America,Eastern Europe,Mid East,Eastern Asia,Western Europe |
Product Description
Diff. Measuring ranges from 35kPa to 2.5 MPa
Isolated construction, suitable for various fluid medium
Wide suitability and easy operation, soild, reliability
Temperature compensation by laser trimming
Mass production, cost-effective
Constant current or voltage excitation
Applications:
Process control systems
Hydraulic systems and valves
Biomedical instruments.
Performance Specification
Electric Performance
Power supply: ≤2.0mADC
Electric connection: 100mm silicon rubber flexible wires
Common mode voltage input: 50% of input (typ.)
Input impedance: 3kΩ~8kΩ
Output impedance: 3.5kΩ~6kΩ
Response (10%~90%): <1ms
Insulation resistor: 100MΩ, 100VDC
Overpressure: to see Order Guide
Max. static pressure: 20MPa
Zero drift/static pressure: ≤0.5mV/MPa
Construction Specification
Diaphragm material: stainless steel 316L
Housing: stainless steel 316L
Pin: silicon rubber flexible wire
O-ring: Vinton
Net weight: approx 36g
Environment Condition
Position effect: deviate 90° from any orientation, zero change ≤0.2%FS
Shock: no change at 10gRMS,(20~2000)Hz
Impact: 100g, 11ms
Media compatibility: the gas or media which is compatible with stainless steel and Viton
Basic Condition
Media temperature: (25±1)ºC
Environment temperature: (25±1)ºC
Shock: 0.1g (1m/s/s) Max.
Humidity: (50%±10%)RH
Local air pressure: (86~106)kPa
Power supply: (1.5±0.0015)mADC
Basic Specification | Specification* | Min. | Typ. | Max. | Units |
| Linearity | | ±0.15 | ±0.25 | %FS,BFSL |
| Repeatability | | ±0.05 | ±0.075 | %FS |
| Hysteresis | | ±0.05 | ±0.075 | %FS |
| Zero output | | | ±3 | mVDC |
| FS output | 60 | | | mVDC |
| Zero thermal error | | ±1.0 | ±1.2 | %FS, @25ºC |
| Span thermal error | | ±1.0 | ±1.2 | %FS, @25ºC |
| Compensated temp. range | 0~50 | ºC |
| Working temp. range | -40~125 | ºC |
| Storage temp. range | -40~125 | ºC |
| Long-term stability | | ±0.3 | ±0.5 | %FS/year |
| *testing at basic condition |
| | | | | | |

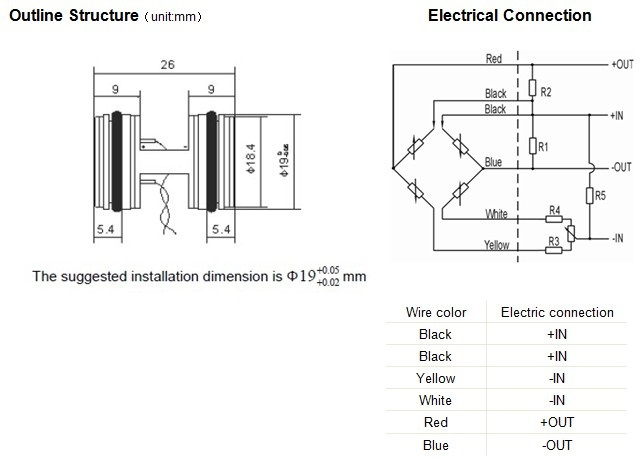

1. The resistance bridge on the left of the dashed is sensor's bridge circuit;
2.The sensor has no laser trimming board, it compensates zero and temperature drift by outer compensated resistors, the connection to see the above chart; connect zero trimming resistor R3(R4), the other R4(R3) is short circuit as negative power supply; R1 or R2 is zero temperature drift compensated resistor, only one of them is used, the other is open circuit, please select the right resistor according to the specification label enclosed with sensor; R5 is sensitivity temperature compensated resistor. We suggest that please connect the outer resistor and differential pressure sensor as close as possible.
