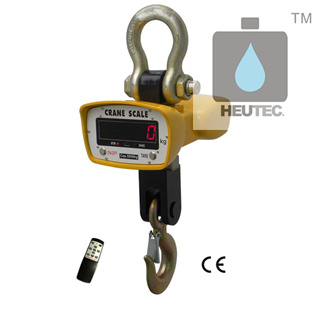

Digital Crane Scale
Price: |
US $ 300/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T |
Prod Model: |
OCS-S |
Enclosure: |
NEMA 12/IP54 Powder Coated Foundry Cast Aluminum |
Accuracy: |
According to OIML Class 3 |
Display: |
30 mm (1.2″) 5digits LCD/LED |
Battery: |
Fully Sealed Lead-Acid Battery, 6V/7ah, Can Reach |
Adapter: |
DC 9V/1000mA |
Ultimate Load: |
400% of Capacity |
Operation Temperature: |
-20ºC to 50ºC |
Out-Wire: |
Wireless |
Feature: |
Water Seal |
Material: |
Alloy Steel |
Product Description
Dimensions and Specifications:MODEL | Cap.(kg) | Resolution(kg) | A(mm) | B(mm) | C(mm) | H(mm) | N.W(kg) | G.W.(kg) |
OCS-S-1 | 1000 | 0.5 | 80 | 340 | 30 | 420 | 12 | 16 |
OCS-S-2 | 2000 | 1 | 80 | 340 | 30 | 420 | 12 | 16 |
OCS-S-3 | 3000 | 1 | 100 | 340 | 40 | 600 | 14 | 19 |
OCS-S-5 | 5000 | 2 | 130 | 360 | 45 | 720 | 25 | 30 |
OCS-S-10 | 10000 | 5 | 145 | 360 | 60 | 850 | 40 | 45 |
OCS-S-15 | 15000 | 5 | 170 | 360 | 85 | 900 | 75 | 80 |
OCS-S-20 | 20000 20000 | 10 | 190 | 360 | 85 | 1000 | 80 | 85 |
Features:Enclosure: NEMA 12/IP54 powder coated Foundry Cast AluminumMulti-weighing units: Kg, lb are selectable, kg are default unit.- Multi-function operation:
Tare, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller. Large red 5 digit LED display-digit height 30mm, Battery Operated with low battery indication, Automatic turn off , power-saving function.The acceleration of gravity can be regulated through remote controller according to different places value. RS-232-continuous or on demand data output, user-selectable.Wireless big screen 3″, 5″, wireless indicator 180, 280, 380, 580 can match with the scale, user-selectable.
Main technical data:Accuracy Standard | According to OIML class III |
Display | 30 mm (1.2″) 5digits LCD/LED |
Filtering | Low, Medium or High selectable |
Units | Kilograms or Pounds selectable |
Resolution | 2000 to 3000 divisions standard(up to 15,000 available) |
Zero Range | 4% F.S. |
Tare Range | 100% F.S. |
Overload Indication | 100% F.S. + 9e |
Max. Safety Load | 125% F.S. |
Ultimate Load | 400% F.S. |
Battery Type | Fully sealed Lead-Acid battery, 6V/7Ah |
Battery Life | ≥70 hours |
Adapter | DC 9V/1000mA |
Operating Temperature Range | - 20ºC ~ + 50ºC |
Operating Humidity | ≤85% RH under 20ºC |
Remote Controller Distance | Max. 15 m |
Battery of Remote Controller | 7# battery, 1.5V*2 |
Acceleration of Gravity | Can be regulated, the default value is 9.793 |
