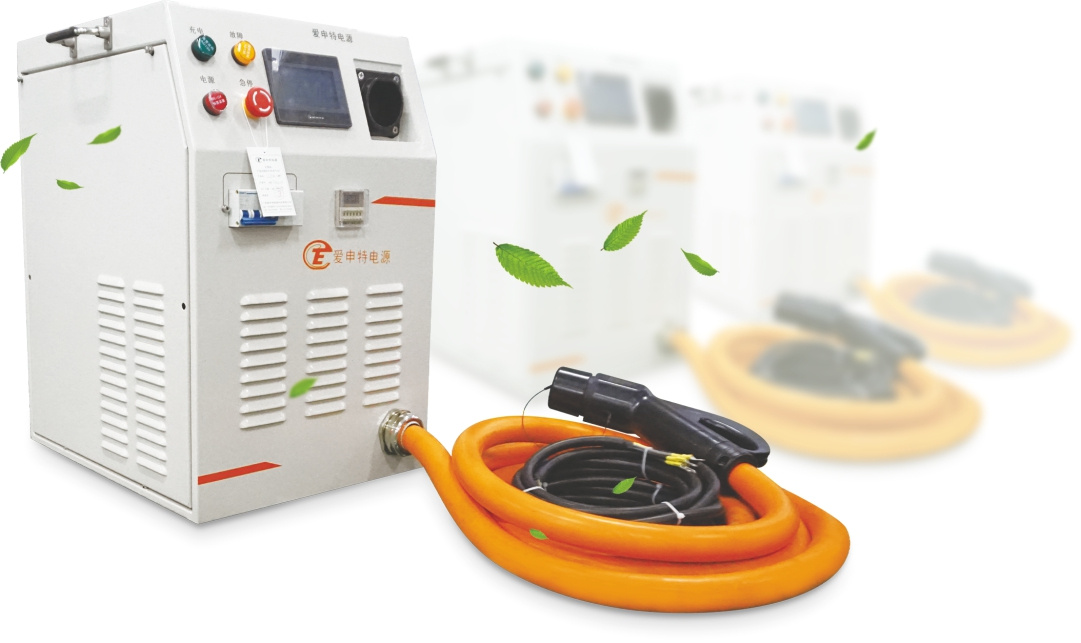

Brief Introduction The charging DC power supply specially designed for capacitor charging, compared to traditional linear HV power supply, it has faster response time and higher efficiency, also it has high precise and adjustable output voltage, featured current-limit working mode and unique discharging circuit which better suit capacitor charging requirements, specifically used for forklifts.Features1. Continuous DC operation or capacitor charging application
2. Output 0-10kV adjustable from 0 to 100%
3. Constant current output
4. Charging in constant current mode and switch to constant current mode till fully charged.
5. Unique double isolated system, strong anti-interference ability.
6. Forced air cooling, very rugged design
7. Local or remote control (optional)Applications1. High voltage capacitor charging
2. High voltage chargingTechnical Specification Electrical Characteristics |
1. Input Voltage | 220V±10% |
2. Output Power | 1KW ~ 5KW |
3. Output Voltage | 5KV/10KV/20KV/30KV/60KV/80KV/100KV/120KV (for other output voltages, please contact us), adjustable output voltage. |
4. Output current | 10mA~10A, (for other output current, please contact us), adjustable output current. |
5. Output polarity | positive or negative |
6. Output adjusting mode | 10-turn potentiometer or 0~10V analog signal control or RS port. |
7. Line regulation | ≤0.5% |
8. Load regulation | ≤0.5% |
9. Total Efficiency | ≥85% |
10. Read output | Digital LED |
11. Output display | 41/2 digital meter |
12. Protections function | - Input over load protection
- Over temperature protection
- Short-circuit protection
- Load discharging protection
|
13. Cooling | Forced air cooling |
14. Dimension | As per output required |
15. Weight | As per output required |
Note: every power supply has 48 hours full load burn-in test @ 40ºCEnvironment conditions1. Working environment conditions:
1.1. Temperature:-10ºC ~ 40ºC
1.2. Relative humidity: <90% (non-condensing)
1.3. Height: 4000m
2. Storage environment conditions:
2.1. Temperature: -20ºC ~ 60ºC
2.2. Relative humidity: 10% ~ 90%
2.3. Height: 4000m Safety caution1. This power module has HV output, only professional person could operate it.
2. Please check power module as below before start-up
2.1. Keep power module clean and good ventilation.
2.2. HV input & output connectors or HV load no touch anything.
2.3. Please check back current of load well connected with GND bolt at the back of power module.Physical drawing and other type enclosure (for reference only) StoragePay attention to the following points during temporary & long-term storage.
1. Store the power supply in our packing box
2. Long-term storage would lead to electrolytic capacitor degradation, it should be powered up yearly, at least 5 hours power-on time, input voltage should be increased to rated value by voltage regulator. Warranty1. The warranty period of this product is 12 months, free repair within warranty period except for man‐made damages or irresistible forces.
The following cases during under warranty are not included in free-warranty scope:
(1). Incorrect operation & maintenance of the power source that cause fault.
(2). Natural loss of consumable material (shell, connector etc.)
(3). Manual damage caused by modification or dismantle
(4). Damage caused by external equipments or third-party product or plug-in units.
(5). Force majeure factors, such as fire, flood or input grid abnormal.
(6). Unilateral amendment or modification on our LOGO or part number.
(7). Fault caused by abnormal usage of power source.
(8). Other non-product quality causes
2. Reasonable maintenance & repair costs should be charged after warranty period. Efficient Power Supply always sticks to the operation philosophy of "surpassing international advanced level as our objective" ,we would like to build a sincere ,trusty and long -term partnership with our customers by keeping improving ourselves ,and providing more energy saving and appropriate products .let's work hand in hand for the glorious cause of surface treatment industry .
