DIN 41612 IDC Type 2/3 Rows 32/64p Connector

Name: DIN 41612 IDC Type 2/3 Rows 32/64p Connector
Brand: all-electronics-online.com
SKU: 715526365
Availability: InStock
Rating: 4.5 (114 reviews)

Price:	US $ 0.15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DIN 41612 series 001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Type:	PCB Coaxial Connector
Coupling Mechanism:	Double Bayonet Plug-in

Product Description

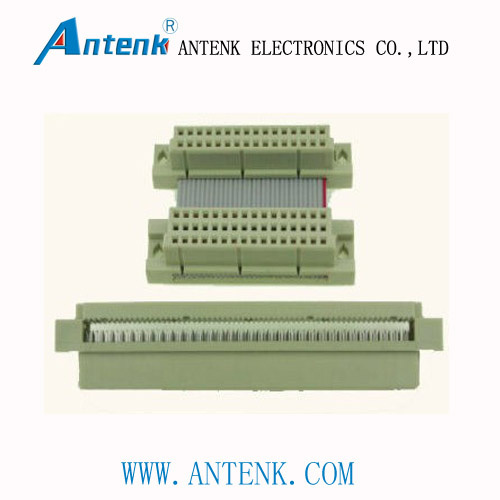

DIN 41612 IDC Type 2/3 rows 32/64P

Specification

Material:
Insulator: PBT, glass reinforced, rated UL 94V-0
Contact: Phosphor bronze or brass
Electrical:
Current rating: 1 AMP
Contact resistance: 30m and omega; Max.
Insulation resistance: 3000m and omega; Min.
Dielectric withstanding voltage: 500VAC for 1 minute
Operating temperature: -40 to 105 degrees Celsius
Terminated with 1.27mm pitch flat ribbon cable
Mating suggestion: A23D, D14, D14A and D14b series
No. Of contacts: 32, 64
Safety/quality approvals: UL

RoHS compliance

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
