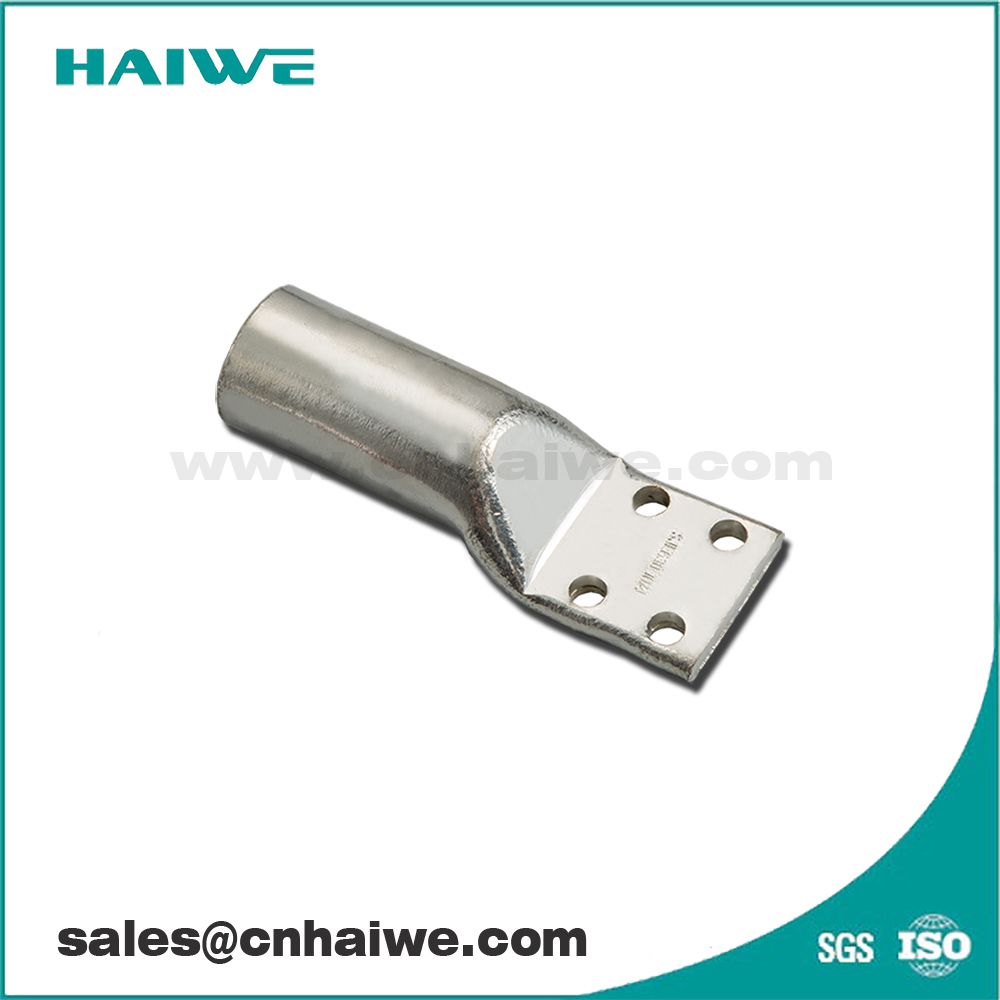

DIN Four Holes Compression Crimping Copper Connector Tubular Cable Lug

Name: DIN Four Holes Compression Crimping Copper Connector Tubular Cable Lug
Brand: all-electronics-online.com
SKU: 715709682
Availability: InStock
Rating: 5 (98 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

DIN 99.9% purity Four Holes compression crimping tin plated Copper Connector Tubular Cable Lug

Product Description
Material :
E-Cu

Surface :
Tin-plated mini 8 microns

Product Property :
It is used to connect the copper conductor end. Application
up to 33KV. It is in accordance with DIN46235. And its type test is in accordance with IEC61236-1.

Item No	Applicable Bolts	Dimensions(mm)					Note
Item No	Applicable Bolts	D	d	L2	L1	Φ	Note
DTGA-2.5	m4,m6	4	2.4	23	7	6.6	Can be produced according to customer's drawings
DTGA-4	m4,m6	4.8	3.1	24	9	5.5
DTGA-6	m5,m6,m8m10,m12	5.5	3.8	27	9	5.5
DTGA-10	m5,m6,m8m10,m12	7	5	30	11	6.5
DTGA-16	m6,m8,m10	8	6	30.5	12	8.5
DTGA-25	m6,m8 m10,m12	9	7	35.5	16	8.5
DTGA-35		11	9	44	18	6.5
DTGA-50		12.5	10	47	20	10.6
DTGA-70	m8,m10 m12,m16	15	12	53	23	10.5
DTGA-95	m8,m10 m12,m16	17	14	57	24	12.5
DTGA-120	m10 m12,m16	19	16	$4	28	12.6
DTGA-150	m10 m12,m16	21	17	74	30	14.5
DTGA-185	m8,m10 m16,m20	23.5	19	80	34	14.5
DTGA-240	m8,m10 m16,m20	26	21	93	40	17
DTGA-300	m16,m20	29	23	102	46	17
DTGA-400	m16,m20	32	26	107	46	17
DTGA-500	m16,m20	36	29	125	48	17
DTGA-600	m16,m20	42	34	155	60	17

FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.

2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.

4. Package information
A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box,about 1000kg per pallet

5.How long to make a sample?Is it free?
A:7 days depending on the sample's complexity.Normally,our sample is free

6.How to cantact us?
A:Send your inquiry details in the below,Click "send" now!

Our Services

Service
1.Thousands of products in stock and ready to ship.
2.The most competitive pricing
3.Free shipment container loading
4.Putting the customer's nees first,always
5.On call,24 hours a day,7 days a week

Prod Model:	DTGA
Purity Copper:	99.9%
Finished:	Tin Plated
OEM:	Accept
Sample:	Free
Material:	Copper
Application:	Conduct Electricity
Type:	Crimp Terminal, Lug
Character:	High Conductivity
Production Process:	Punching
Shape:	Tubular
Interface Type:	Crimping
Certification:	SGS
Brand:	Haiwe
