DIN Rail Intermediate Relay Industrial Control Auxiliary Relay

Name: DIN Rail Intermediate Relay Industrial Control Auxiliary Relay
Brand: all-electronics-online.com
SKU: 839160605
Availability: InStock
Rating: 4.7 (150 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Please leave message for voltage when you place order
12:AC/DC 12V
24:AC/DC 24V
48:AC/DC 48V
110:AC/DC 110V
230:AC230V

Applications
-intermediate relay used for switching larger load output,strengthen or multiplying contacts of the existing device.

Function Features
-Voltage range: AC/DC12V,24V,48V,110V,AC230V.
-relays GR8-316 enable connection to a 3-phase circuit.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.

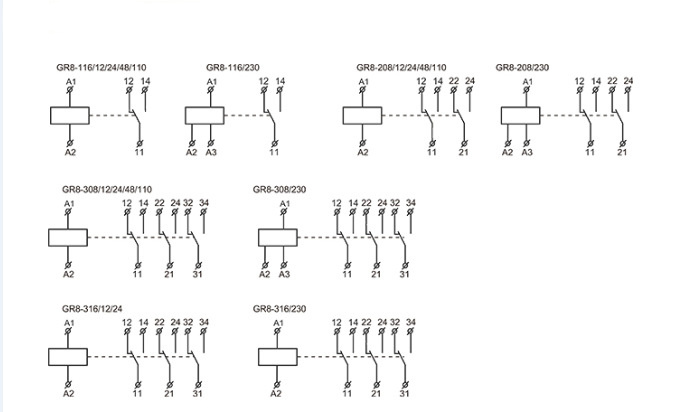

Model and connotation
Rated control supply voltage:
12:AC/DC 12V
24:AC/DC 24V
48:AC/DC 48V
110:AC/DC 110V
230:AC230V
Number of contacts:
116:1×SPDT 16A

Technical Data
Electrical features

Product Name	Intermediate Relay Auxiliary Relay

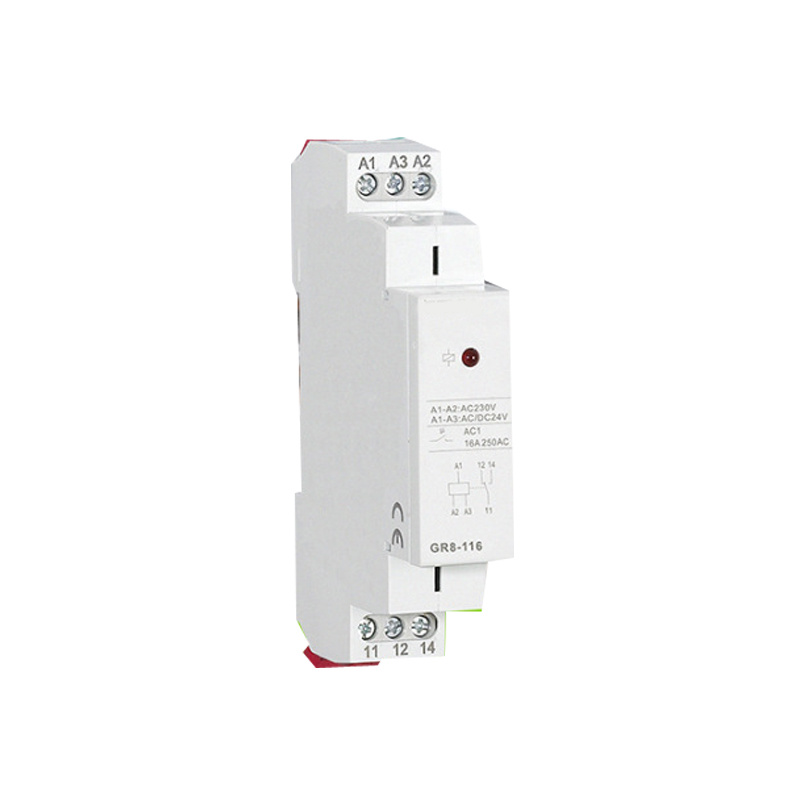

Model NO GR8-116	1 SPDT

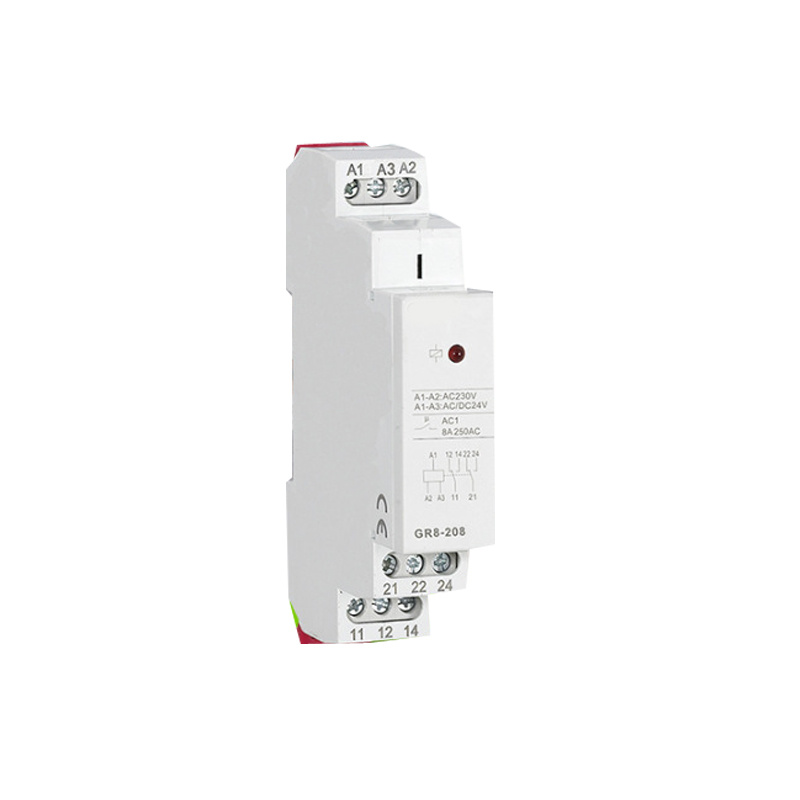

Model NO GR8-208	2 SPDT

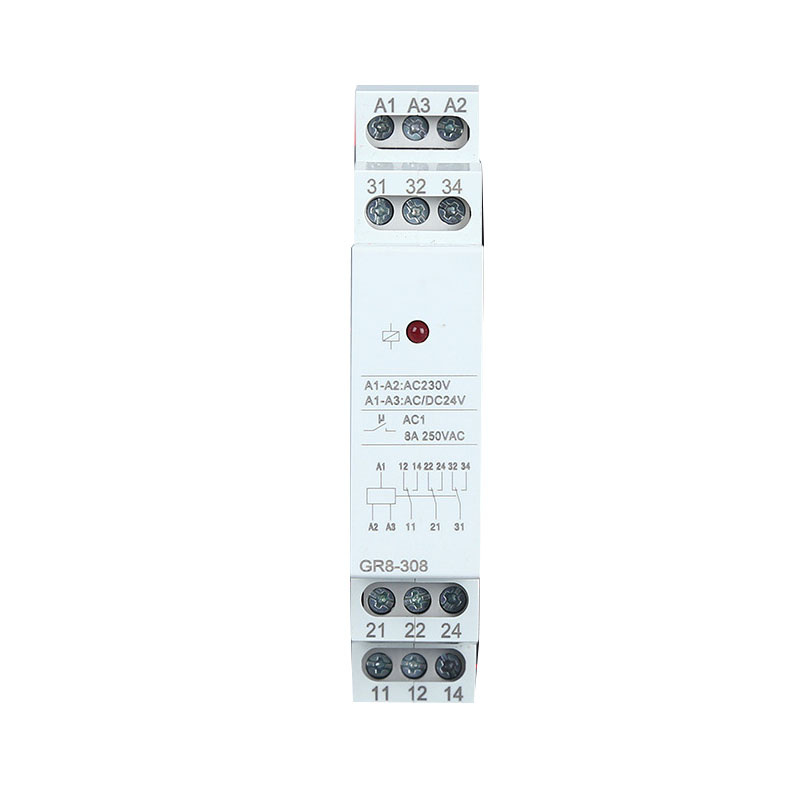

Model NO GR8-308	3 SPDT
Model NO GR8-316	3 SPDT
Function	Switching larger load output
Voltage Range	AC/DC 12V 24V 48V 110V, AC230V
Supply Terminals	A1-A2-A3
Supply Voltage Tolerance	-15% +10%
Time Setting	Potentionmeter
Supply Indication	Green LED
Output Indication	Red LED
Rated Frequency	50/60HZ
Rated Current	8A/AC1
Protection Degree	IP40 for front Panel / IP20 for Terminals
Weight/pcs	0.1KG/PCS
Standard	EN 61812-1,IEC60947-5-1
Certifications	CE CB CCC TUV
Warranty/guarantee	18months
MOQ	1PCS

Prod Model:	GR8
Volatge:	AC230V , AC/DC12-240V
Current:	16A
Mounting:	DIN Rail
