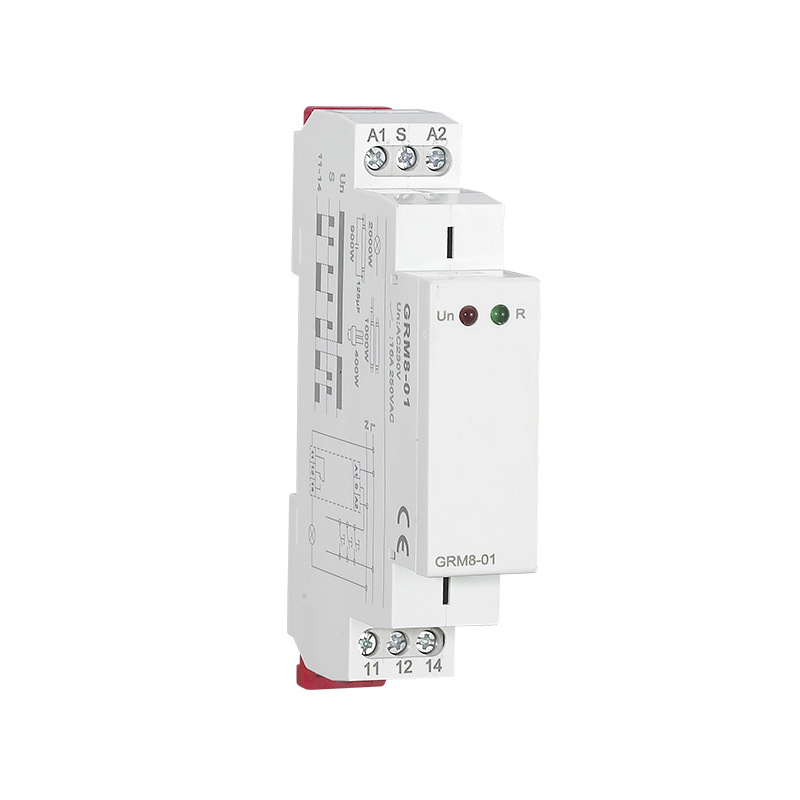

DIN Rail Memory&Latching Relay Industrial Control Electrical Relays Impluse Relay

DIN Rail Memory&Latching Relay Industrial Control Electrical Relays Impluse Relay
Price: US $ 10/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Contact Supplier
Showroom Product Company Profile

Applications
-latching relay, controlled by buttons from several loacations can replacethree way switches or cross bar switchs thanks to control by buttons(un-limited number,connected inparallel by 2 wires),installation gets moretransparent and faster for mounting.

Function Features
-Voltage range: AC 230 V,AC/DC12V-240V clamp terminals.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

Moder and connotation
Rated control supply voltage:
A230:AC230V
W240:AC/DC12V-240V
Number of contacts:
1:1×SPDT


Technical Data
Electrical features
Model NOGRM8-01 OR GRM8-02
FunctionImpulse Relay, Latching Relay, Memory Relay
Voltage Range AC230V (A230) OR AC/DC12V-240V (W240)
Output1 SPDT OR 2 SPDT
Supply TerminalsA1-A2
Supply Voltage Tolerance-15%  +10%
Glow Tubes ConnectionsVoltage range: AC 230V Yes(A1-S)
Supply IndicationGreen LED
Output IndicationRed LED
Rated Frequency50/60HZ
Rated Current16A/AC1
Protection DegreeIP40 for front Panel / IP20 for Terminals
Weight/pcs0.1KG/PCS
StandardEN 61810-1
CertificationsCE CB CCC TUV
Warranty/guarantee18months
MOQ1PCS





Prod Model: GRM8-01/02
Volatge: AC230V , AC/DC12-240V
Current: 16A
Mounting: DIN Rail
