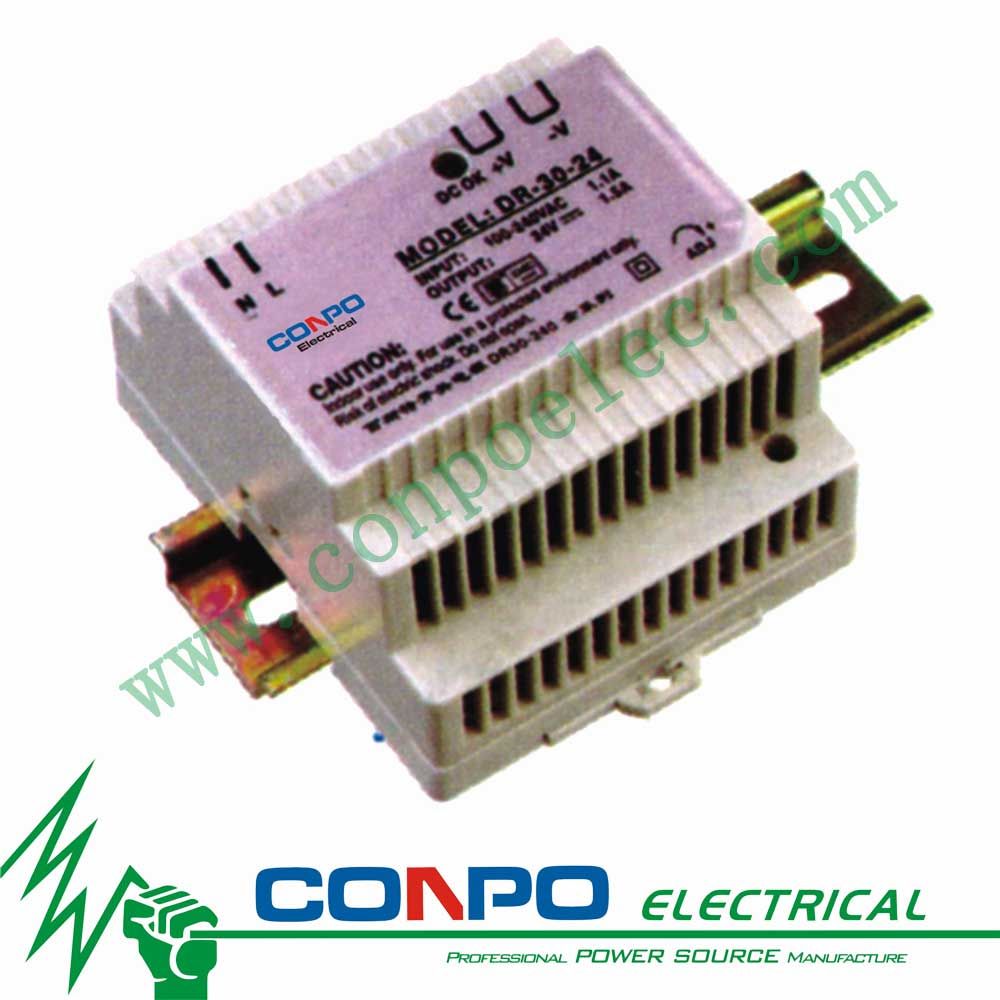

DIN-Rail Power Supply 30W
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1000/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Feature:
1. DIN-rail specification TS35/7.5 or 15
2. Tight structure
3. Short circuit, over load protection
4. 100% full load test
5. LED power indicator
Remarks:
Custom-made specifications are acceptable.
Specification:
Model |
BDR-30W-5 |
BDR-30W-12 |
BDR-30W-15 |
BDR-30W-24 |
DC output voltage |
5V/6A |
12V/2.5A |
15V/2A |
24V/1.5A |
Wave and noise |
50mVp-p |
50mVp-p |
50mVp-p |
50mVp-p |
Inlet stability |
+/-0.5% |
+/-0.5% |
+/-0.5% |
+/-0.5% |
Load stability |
+/-1% |
+/-0.5% |
+/-0.5% |
+/-0.5% |
Efficiency |
74% |
81% |
82% |
83% |
Adjustable range for DC voltage |
+/-10% |
+/-10% |
+/-10% |
+/-10% |
AC input voltage range |
85-264VAC 47-63Hz 120-370VDC |
AC inrush current |
Cold-start current 15A/115VAC 30A/230V |
Overload protection |
105%-160% constant current limiting, auto-recovery |
Over-voltage protection |
115%-135% rated output voltage |
Setup rise hold up time |
100ms 30ms 60ms 230VAC at full load |
Withstand voltage |
I/P-O/P 3KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute |
Isolation resistance |
IP-O/P I/P-FG O/P-FG:500VDC/100MΩ |
Working temperature |
-10~50ºC |
Safety standards |
Design refer to GB4943, UL60950, EN60950 |
EMC standards |
Design refer to GB9254, EN55022 Class B |
Weight |
0.27kg |
Size |
78*93*56mm |
Prod Model: |
BDR-30W-... |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty: |
2 Years |
Output Type: |
Single |
Certification: |
CE, RoHS, SGS, ISO9001 |
Output Power: |
30W |
