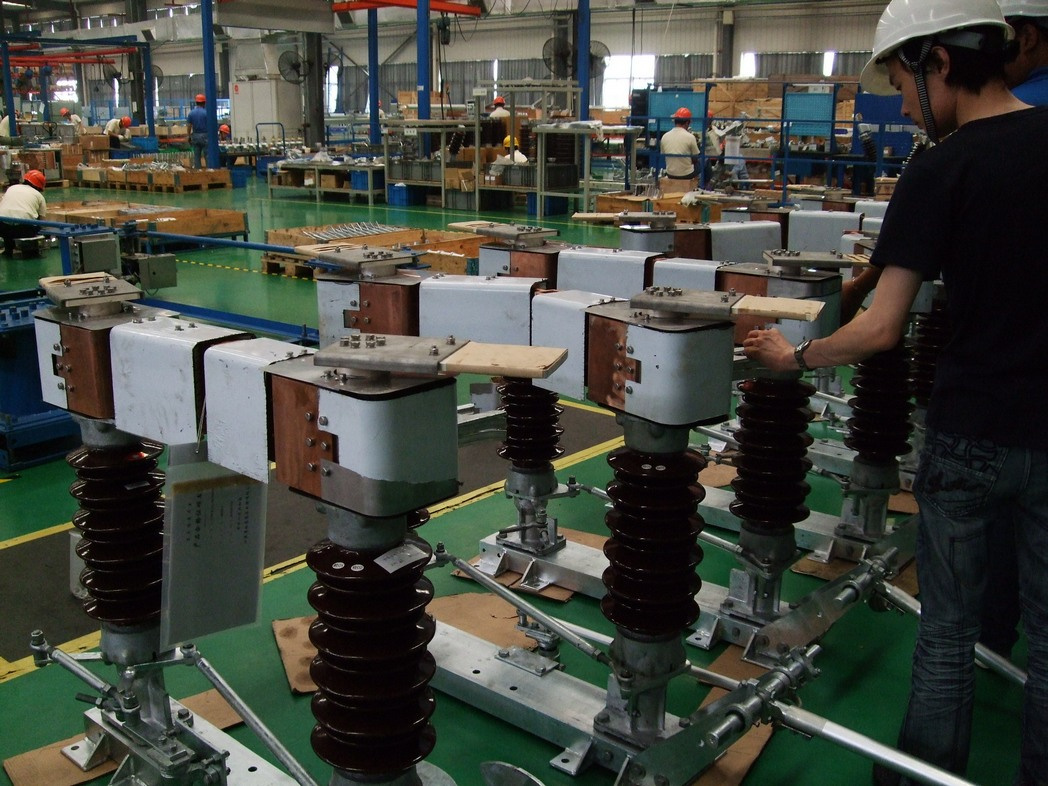

Disconnector 40.5kv
| Price: |
US $ 3000-5000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
GW4 series outdoor AC HV disconnector is three-phase AC 50Hz outdoor HV electric equipment used in rated voltage 35KV electric system. It is used for high voltage lines no-load switching and electrical isolation of examined high voltage bus, circuit breakers and other electrical equipments.
Characteristics:
GW4-40.5, GW4-40.5D series disconnector is unipolar, and three separate unipoles are connected together by a connecting rod to form a three-pole single conductive arm, linked disconnector. The connecting rod is composed of left hand and right hand screws, so it is easy to adjust the phase synchronization and also can operate on single-phase.

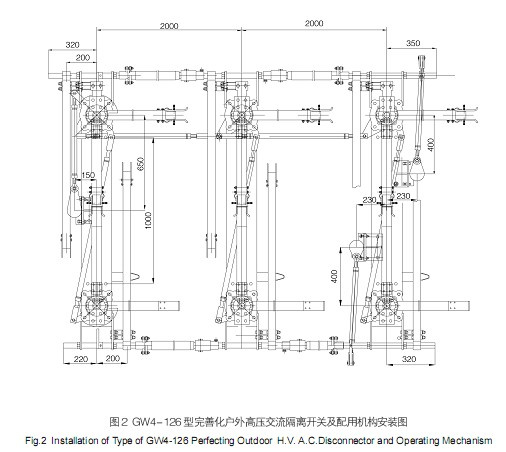

GW4-40.5 series disconnector is composed of base, pillar porcelain insulator and conductive components, each pole has two porcelain insulators on both bearing houses of base, and is connected by a crossover connecting rod to be horizontally revolvable. Conductive knife is made of copper tubes; Its contacts are in middle of the two insulators, and the knife is fixed at the top of insulators.
| Rated voltage(kV) | Rated current(A) | Rated peak withstand current(kA) | Rated short-time withstand current(kA) | Rated short-circuit duration |
| 40.5 | 400\630 | 31.5\50 | 12.5\20 | 4 |
| Prod Model: |
GW4 40.5KV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
High-voltage |
| Structure: |
Double-column Disconnector |
| Installation: |
Outdoor High-voltage |
| Operation: |
Electric |
| Grounding: |
Double Ground |
| Series: |
Three |
| Run: |
Turn the Horizontal |
| Switching Mode: |
Double-Throw Type |
| Certification: |
ISO |
| Common Model: |
Gw |
| Brand: |
Ville |
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier"
