Distributed Gap Wound Core

Name: Distributed Gap Wound Core
Brand: all-electronics-online.com
SKU: 727709915
Availability: InStock
Rating: 4.4 (62 reviews)

Price:	US $ 2400/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Ton
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

1. Introduction:
Our wound cores are widely used in distribution transformers, especially for S13 type energy-saving transformers in China; we could also provide our customers with single phase wound cores like D9, D10, D11 etc., three phase wound cores; The capacity range from 10KVA to 2500KVA; Due to its particular technology craft, its performance is better than traditional stacked cores, especially for pole-mounted single phase transformer.
2.Manufacturing requirements:

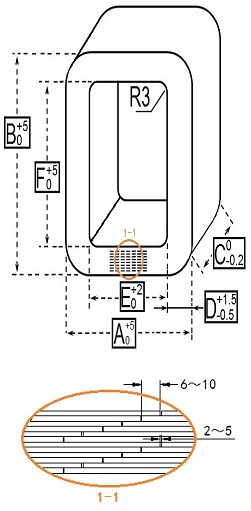

Tolerance: See demonstrated graphic; the specified requirements should be coincide with customers drawings;

Material: we could choose Nippon steel, Baosteel, WISCO and other steel plants products to meet customers core loss requirements; in order to make sure we choose the right material, we would like our customers to provide us with detailed drawings including necessary technical parameters.
Usually, we use 0.18mm, 0.20mm, 0.23mm, 0.27mm, 0.30mm material.
3. Advantages:
(1). Lower core loss;
(2). Less noiseness;
(3). Sound short-circuit resistant;

Prod Model:	three phase
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Multi-winding Transformer
Application:	Electronic

Wuxi Jiachen Power Electronics Equipment Co., Ltd. is established in 2014, located in Wuxi city. The transportation is very convenient, it will only take you about 15 minutes from Wuxi East super-speed railway station, and about 20 minutes from Wuxi ShuoFang airport.

With the support of our contracted partners, we have our own manufacturing base and R&D center. So we positioned our company as a professional sales company, provide our customers with the superior products and services; We warmly welcome our customers to visit our company to talk about the cooperation details, and discuss the innovative design of our products to enhance our mutual competitiveness.

Now, our company devote our efforts to export the products below:

All kinds of distribution transformer wound cores, like S11-100kVA, S13-100kVA; Single phase wound core like D9, D10, D11 etc. For pole mounted transformers or pad mounted transformer, we could also produce three phase transformer wound cores; The capacity could be 10kVA to 2500kVA; For some clients, we could also design the drawings as per your technical parameters.

All series of toroidal cores, C type cores, CD type and E type cores; Widely used in potential transformer, instrument transformer, voltage transformer, current transformer, power transformer, some reactors and autotransformer and so on.

Various and types of series reactor, inductor, DC reactor for Frequency converter, filter reactor, triangle start reactor, starting compensator, autotransformer, LV dry-type transformer, current transformer for distribution cabinet, bushing type current transformer etc.

Our company now cooperated with my partners to develop the Uni-cores market in China and the finished products is operating soundly in our end users. We sincerely and warmly welcome you to join us to study new technology to improve our products performance, reduce manufacturing cost, and benefit mutually.
