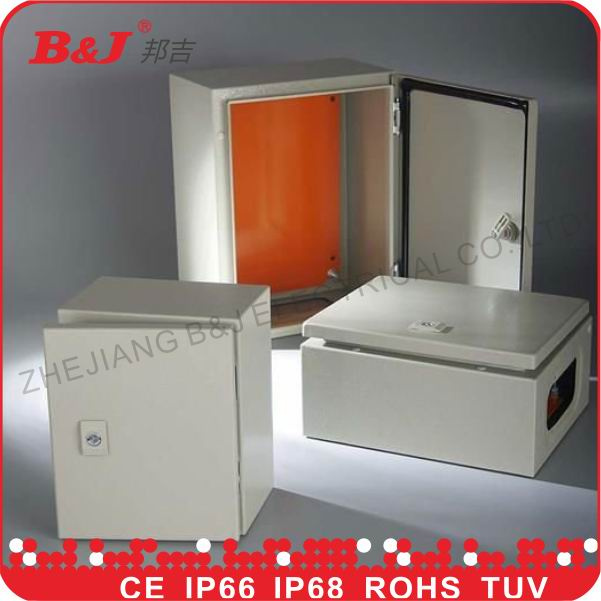

Distribution Box IP66 (BJS1)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,EXW,CIF |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,Western Union |
(BJS1 Serie) Specifications: Material:Enclosure: sheet steel 1.2mm till size BJS1-88/300 then 1.5mmDoor: sheet steel 1.2mm till size BJS1-66/300 then 1.5mmMounting plate:2.0mm Surface finish:Enclosure and door:Dipcoat-primed,powder-coated in textured Ral7032 or Ral7035 outsideMounting plate: RAL2000 or galvanized
RAL2000 or galvanized

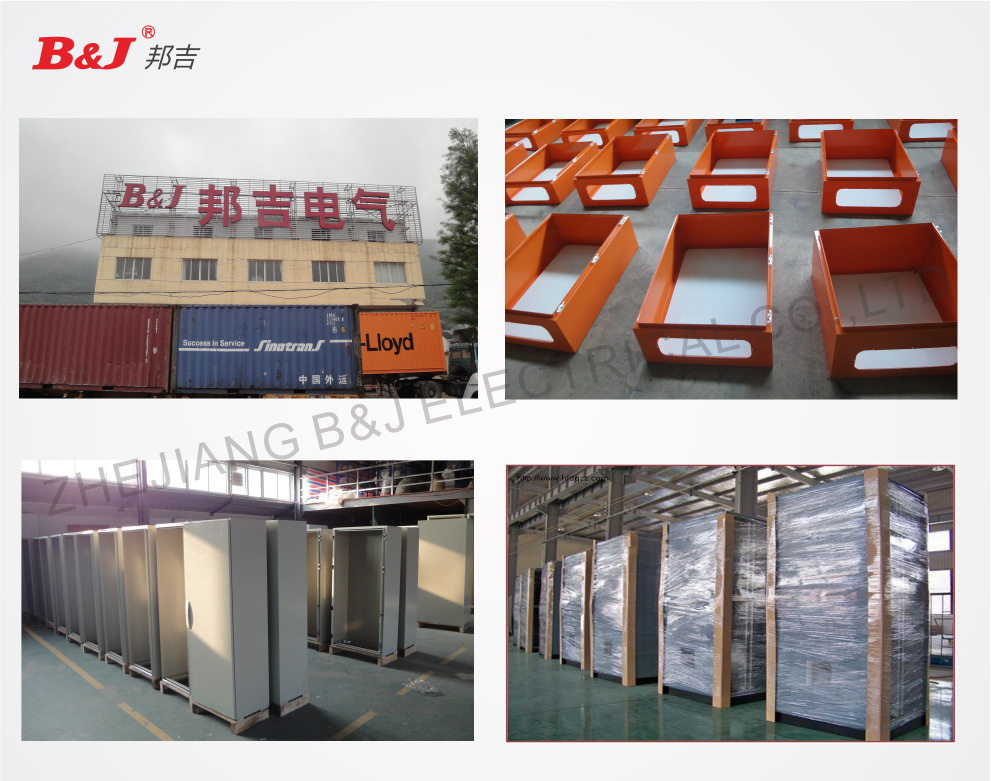

Protection: Protection degree:IP66 Impact resistaance:IK10 Supply includes:Enclosure of all-round solid constructiongland plate with sealing gasket,door with lock. Warranty Service:We 100% Gurantee your Satisfaction1 Pls report us if there are any problem, we will solve it ASAP.2 This items comes with 1 YEAR warranty.Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial factors within 1 YEAR; however photos are needed for us to find the factors of damaging them.3 Shipping and handling fees are not refundable for return or exchange items. Our Advantages:1. 20 year's OEM & ODM experience2. Spain Design3. the color can remain for over 5 years 4. professional team Philosophy of the Company:Excellent design,Excellent make.Excellent serviceCompany Photo :reference | heigh | width | depth |
BJS1-2020/150 | 200 | 200 | 150 |
BJS1-2520/150 | 250 | 200 | 150 |
BJS1-3020/150 | 300 | 200 | 150 |
BJS1-3020/200 | 300 | 200 | 200 |
BJS1-3025/150 | 300 | 250 | 150 |
BJS1-3025/200 | 300 | 250 | 200 |
BJS1-3025/250 | 300 | 250 | 250 |
BJS1-3030/150 | 300 | 300 | 150 |
BJS1-3030/200 | 300 | 300 | 200 |
BJS1-3030/250 | 300 | 300 | 250 |
| | | |
BJS1-4030/150 | 400 | 300 | 150 |
BJS1-4030/200 | 400 | 300 | 200 |
BJS1-4030/250 | 400 | 300 | 250 |
BJS1-4030/300 | 400 | 300 | 300 |
BJS1-4040/150 | 400 | 400 | 150 |
BJS1-4040/200 | 400 | 400 | 200 |
BJS1-4040/250 | 400 | 400 | 250 |
BJS1-4040/300 | 400 | 400 | 300 |
| | | |
BJS1-5030/150 | 500 | 300 | 150 |
BJS1-5030/200 | 500 | 300 | 200 |
BJS1-5030/250 | 500 | 300 | 250 |
BJS1-5030/300 | 500 | 300 | 300 |
BJS1-5040/150 | 500 | 400 | 150 |
BJS1-5040/200 | 500 | 400 | 200 |
BJS1-5040/250 | 500 | 400 | 250 |
BJS1-5040/300 | 500 | 400 | 300 |
BJS1-5050/150 | 500 | 500 | 150 |
BJS1-5050/200 | 500 | 500 | 200 |
BJS1-5050/250 | 500 | 500 | 250 |
BJS1-5050/300 | 500 | 500 | 300 |
| | | |
BJS1-6040/150 | 600 | 400 | 150 |
BJS1-6040/200 | 600 | 400 | 200 |
BJS1-6040/250 | 600 | 400 | 250 |
BJS1-6040/300 | 600 | 400 | 300 |
BJS1-6050/150 | 600 | 500 | 150 |
BJS1-6050/200 | 600 | 500 | 200 |
BJS1-6050/250 | 600 | 500 | 250 |
BJS1-6050/300 | 600 | 500 | 300 |
BJS1-6060/150 | 600 | 600 | 150 |
BJS1-6060/200 | 600 | 600 | 200 |
BJS1-6060/250 | 600 | 600 | 250 |
BJS1-6060/300 | 600 | 600 | 300 |
BJS1-6060/400 | 600 | 600 | 400 |
| | | |
BJS1-7040/200 | 700 | 400 | 200 |
BJS1-7040/201 | 700 | 400 | 300 |
BJS1-7050/150 | 700 | 500 | 150 |
BJS1-7050/200 | 700 | 500 | 200 |
BJS1-7050/250 | 700 | 500 | 250 |
BJS1-7050/300 | 700 | 500 | 300 |
BJS1-7060/200 | 700 | 600 | 200 |
BJS1-7060/250 | 700 | 600 | 250 |
BJS1-7060/300 | 700 | 600 | 300 |
| | | |
BJS1-8060/200 | 800 | 600 | 200 |
BJS1-8060/250 | 800 | 600 | 250 |
BJS1-8060/300 | 800 | 600 | 300 |
BJS1-8080/200 | 800 | 800 | 200 |
BJS1-8080/250 | 800 | 800 | 250 |
BJS1-8080/300 | 800 | 800 | 300 |
BJS1-8080/400 | 800 | 800 | 400 |
| | | |
BJS1-1060/200 | 1000 | 600 | 200 |
BJS1-1060/250 | 1000 | 600 | 250 |
BJS1-1060/300 | 1000 | 600 | 300 |
BJS1-1070/200 | 1000 | 700 | 200 |
BJS1-1070/250 | 1000 | 700 | 250 |
BJS1-1080/200 | 1000 | 800 | 200 |
BJS1-1080/250 | 1000 | 800 | 250 |
BJS1-1080/300 | 1000 | 800 | 300 |
BJS1-1010/250 | 1000 | 1000 | 250 |
BJS1-1010/300 | 1000 | 1000 | 300 |
BJS1-1010/400 | 1000 | 1000 | 400 |
| | | |
BJS1-1260/200 | 1200 | 600 | 200 |
BJS1-1260/250 | 1200 | 600 | 250 |
BJS1-1260/300 | 1200 | 600 | 300 |
BJS1-1280/200 | 1200 | 800 | 200 |
BJS1-1280/250 | 1200 | 800 | 250 |
BJS1-1280/300 | 1200 | 800 | 300 |
BJS1-1210/250 | 1200 | 1000 | 250 |
BJS1-1210/300 | 1200 | 1000 | 300 |
BJS1-1210/400 | 1200 | 1000 | 400 |
BJS1-1210/300 | 1200 | 1200 | 300 |
BJS1-1210/400 | 1200 | 1200 | 400 |
| | | |
BJS1-1460/200 | 1400 | 600 | 200 |
BJS1-1460/250 | 1400 | 600 | 250 |
BJS1-1460/300 | 1400 | 600 | 300 |
BJS1-1480/200 | 1400 | 800 | 200 |
BJS1-1480/250 | 1400 | 800 | 250 |
BJS1-1480/300 | 1400 | 800 | 300 |
BJS1-1480/400 | 1400 | 800 | 400 |
BJS1-1410/250 | 1400 | 1000 | 250 |
BJS1-1410/300 | 1400 | 1000 | 300 |
BJS1-1410/400 | 1400 | 1000 | 400 |
BJS1-1412/300 | 1400 | 1200 | 300 |
BJS1-1412/400 | 1400 | 1200 | 400 |
Prod Model: |
BJS1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Place Of Origin: |
Wenzhou, China |
Brand Name: |
B&J |
Thickness: |
1.2mm, 1.5mm, 2.0mm |
Paint Finish: |
Epoxy Polyester Coating |
Color: |
Ral7035 or Ral7032 |
Lock: |
Available on Reques |
Certificate: |

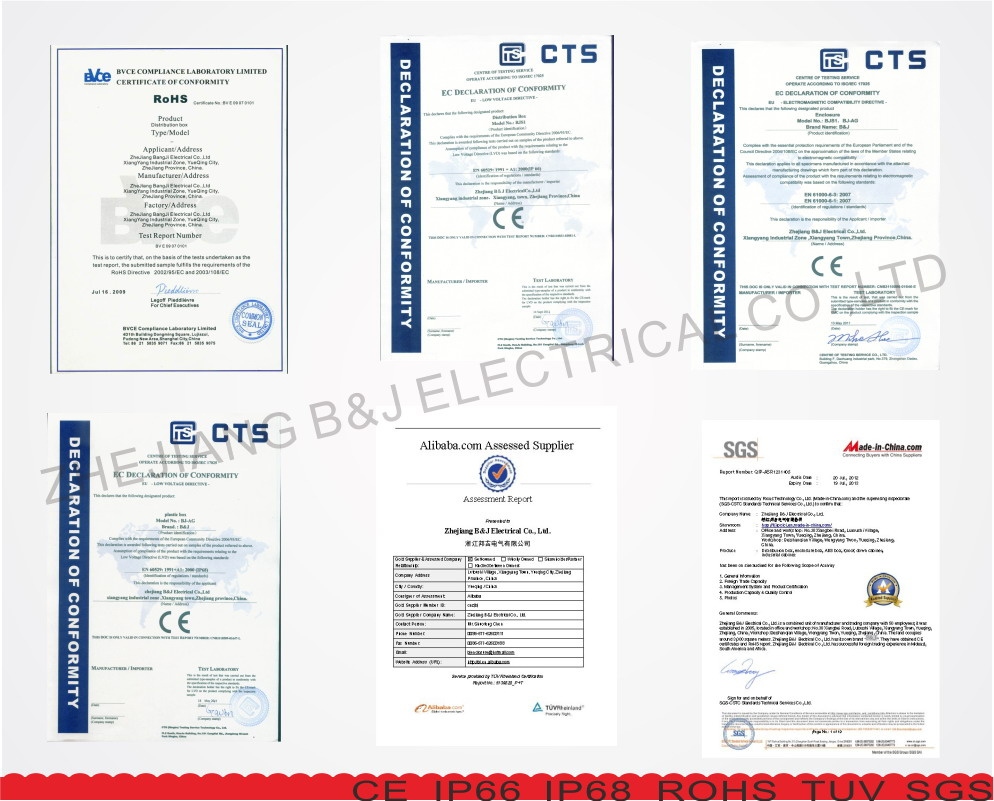

Ce, IEC, RoHS, TUV |
OEM: |
Offered |
Customised Size: |
Accepted |
Structure: |
Protection |
Type: |
Distribution Box |
Size: |
From 200X200X150mm to 1400X1200X300mm |
Application Range: |
Electrical |
Shell Protection Grade: |
IP66 |
Brand: |
B&J |
Zhejiang B&J Electrical Co., Ltd. With 20 years' experience in electrical industry, is the leading manufacturers of distribution boxes in China, specialized in producing and reserching all kinds of distribution box, wall mounting distribution box, knock down cabinet, floor standing cabinet, stainless steel box and plastic box. We have a professional team of engineers; Salemans. Service group and highly developed production and researching equipments. For our products, we have CE, RoHS, TUV and IP66, IP68 certificate. We established good commercial relationships with company from American, Europe, Asian pacific, Middle East etc. Our comprehensive product range got compliment from our customers of more than 50 coutries and areas around the world
The company aim to 'Excellent design, Excellent manufacture, Excellent service' With our professional technologies, production expertise and spirit of innovation, we can assure you that our products will meet your requirement.
Sincerely hope we can have a good cooperation in nearly future and assisting in growth for mutual benefit.
