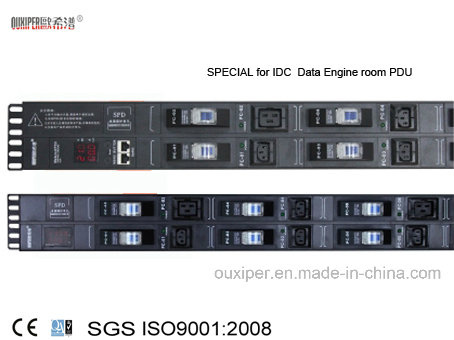

Double 1u PDU for IDC Date Center
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
Double 1U PDU
Output Socket Type: ICE C13 , ICE C19
Output Current:16A
Input voltage:250V
Founction Module: 1P Air Switch
Intelligent display with communication SPD(Surge Protective Device) Color:Black
Size: Double 1U
1.PDU
2.10A/16A/32A
3.Small thermal heating
4.High-current-carrying
5.High-precision plug-in, and it can be deployed moreUnique spot of our product:
NO.1 High Strength Aluminum
The shell material adopt the high strength aluminum,which has the advantage of light weight, high strength and superb surface coating. Aluminum is good at fire resistance, containing anoxybiotic factors. the fire resistance materies meet the standard of UL 94VO. And the sickness is only 1.80mmNO.2 Customized Function Mpdule
We can adjust the varies functions and combine them together if customers have any requirement
NO.3 High Quanlity materials
Different function moduals are connected with screw terminal and copper, to keep PDU work safely and continually. Besides, the socket is made by phosphor bronze chip, which has better electrical conductivity and heat dissipation.
NO.4 The installation is optional
NO.5 Function Distribution of Control Unit. It is unit control PDU,different from 1U,1U-P,1.5U PDU, SPECIAL for Data Center and Data engine room.
PDU Specifications
Electrical Specifications
* Input Interface:Single input, optional dual-input, input interface can be up to more than ten kinds of options.
* Output interface:2 -40 bit output jack, the output interface options up to ten.
* Signal Interface Protection:From the DDN, ISDN, ADSL, 10/100M Ethernet to coaxial video BNC, N and other types of interfaces.
* Master switch control:Zero-fire double-break, with the protection grid, the installation location is designed for a standard jack.
* Overload protection:16A/32A double pole circuit breaker, installation location is designed for the two standard jack, can not be selected with the overall control switch simultaneously.
* Maximum Output Current (jack):10A/16A/32A
* Maximum Output Current (phase):32 A
* Power Cord Length:3X1.5mm2(can be customized according to specific requirement.)
* Rated input voltage:220V single-phase (giving a fluctuation range of ± 10%)
Physical
* Size:Two options for the height and width and depth
* Net Weight:Customized
Environment
* Operating Environment:-5ºC~45ºC
* Operating Elevation:0-3000m
* Operating Relative Humidity:5%~95%, non condensable
* Storage Temperature:-25ºC~65ºC
* Storage Elevation:0-15, 000m
* Storage Relative Humidity:5%~95%, non condensable
* Filtering protection performance parameters
* Rated Voltage:250VAC
* Working Frequency:50/60Hz
* Leakage current:< 0.5mA 250V/50Hz
* Test Voltage:Line - Line 1450VDC 1min;Line - ground 1500VAC 1min
* Insulation resistance:> 50MΩ 500VDC
* Temperature Rise:< 30 ºC
* Temperature range:-25 ºC ~ 85 ºC
* Power Surge Protection Benefits
Designed to meet various criteria of the third pole surge protection, providing greater surge absorption and lower voltage level of protection for your device.
Communication Signal Surge Protection Benefits
| Prod Model: |
Double 1U |
| Special: |
Special for IDC Data Center |
| Grounding: |
Standard Grounding |
| Shell Material: |
Aluminum Alloy |
| Application: |
Residential/General-Purpose |
| Cable Length: |
2 Meter |
| Color: |
Black |
| IP Rating: |
IP44 |
| Certification: |
ISO: 9001 |
| Customized: |
Customized |
| Condition: |
New |
