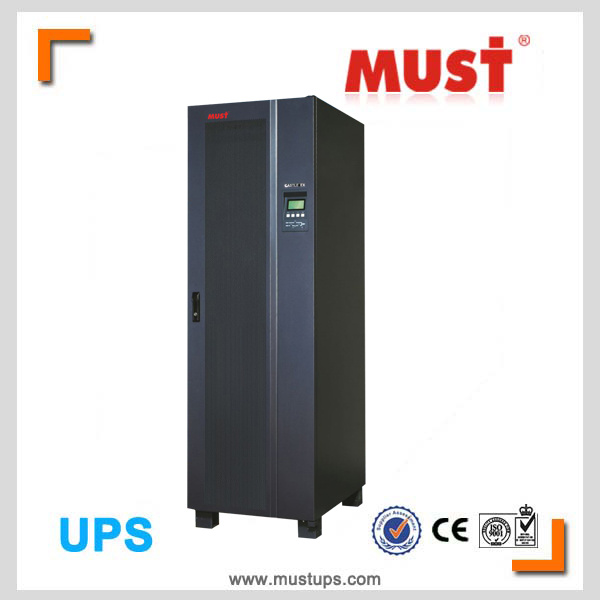

Ture online ups 3 phase 20kva to 40kva high frequency design
Ups power: 20-40kva three phase in and out online high frequency design
Ups system design: Same as 3C3, EX
Feature:
Ture online ups, online ups manufacturer, ups industrial, 3 phase ups, high power ups,
3 phase online ups, high frequency online ups, online ups 40kva, online ups, sine wave ups,
Online ups power supply, long backup time ups, three phase input single phase output online ups,
Pure sine wave online ups, industrial online ups, industrial ups manufacturer,
Online ups with isolation transformer
Features:
1. Ups industrial typical design and secure power protection from galvanic isolation output transformer fixed in ups chassis:
ISO design is optional online ups with isolation transformer, ture online ups
Completely isolating output pure sine wave power from input ac source in case of heavier noise interference, harmonic distortion;
Completely isolating output neutral from output ground line in case of unexpected electric shocks by touching ups.
And EPO (Emergent power off) mode.
2. Intelligent power protection solution from ups industrial composed of advanced, dsp-based and full-digitalized micro-processor control tech high reliability power solution;
3 individual phase controller: Real time monitor ups and power status, management battery charge, recharge in an advanced method (ABM: Advanced battery management)
3. High input power factor 0.99 and better ac-ultilization advantage from SCR silicon rectifier module, PFC integrated;
4. High stability, high efficiency and power-saving advantage from advanced, transformer-less and dsp-based IGBT inverter.
Inverter efficiency up to 94% (normal online mode), and 98% on ECO mode. 3 individual IGBT inverter
5. Uninterruptibility power solution from ups industrial: 384vdc (360vdc, 336vdc) internal battery (12v-7ah) or external battery bank(purpose-designed long autonomy external large battery). Option
6. Ups industrial adopts thorough communication interface and power management tool:
Standard RS232, RS485, optional DB-9 dry contact, AS400 expansion card,
SNMP network monitor, power management tool / protocol
7. Ups industrial double ac mains input power safe-guard: Regular mains input supply, reserve mains input supply
8. Ups industrial more optional design for higher quality power solution: Power fed-back module, temperature sensor, higher IP protection class...And
9. Ups industrial for flexible on-demand power expansion hot-redundancy:
N+x parallel redundant ups
Max design ability: 8 units ( 2 units maximium for redundancy)
Ture online ups, online ups manufacturer, online ups, high frequency online ups, 3 phase online ups
Ture online ups, 3 phase onlline ups, 40kva
Electrical view
Ture online ups, 3 phase online ups, 40kva ups
PFC+SCR rectifier module electrical view:
Ture online ups, 3 phase online ups, 40kva ups
Individual phase IGBT inverter PSDR board electrical view:
| Capacity | 3C10KS | 3C15KS | 3C20KS |
| Rated Power | 10000VA/8000W | 15KVA/12KW | 20KVA/16KW |
| Output Voltage | 208VAC/220VAC/230VAC/240VAC |
| Voltage Waveform | Pure Sine Wave |
| Crest Factor | 3:01 |
| Output Frequency (Synchronized- Mains) | 46~54Hz Or 56Hz - 64Hz (Line Mode)50/60HZ/ ±0.05Hz( Battery Mode) |
| Regulation(Nominal) | ±1% |
| Regulation (Battery Mode) | ±1% |
| Transfer Time | Zero |
| Over Current Protection | Line Mode:10min@100%~130%;Battery Mode:30s@100%~130% |
| Outlet | Hard Wiring With Terminal Block |
| Harmonic Distortion | ≤2%THD(Linear Load);≤5%THD(Non-Linear Load) |
| Input |
| Capacity | 3C10KS | 3C15KS | 3C20KS |
| Nominal Voltage | 277-520VAC@Full Load |
| Input Frequency | 46~54Hz / 56~60Hz |
| Efficiency | 90% (AC Mode) 90%(Battery Type) |
| Noise Filtering | Full Time EMI/RFI Filtering |
| Over Current Protection | By AC Fuse Or By Re-Settable Over Current Protector |
| AVR Range (2 Bucks,2 Boosts) | Enhanced Buck: +15% Of Selected Nominal Voltage Buck Mode: +5% Of Selected Nominal Voltage Boost Mode: -5% Of Selected Nominal Voltage Enhanced Boost: -12.5% Of Selected Nominal Voltage |
| Phase | Three Phase Input and Single Phase Output |
| Battery |
| Battery Type | Sealed Lead Acid Battery. |
| Rated Charging Voltage | Depending On The Capacity Of External Batteries |
| Typical Backup Time | Depending On The Capacity Of External Batteries |
| Charging Method | Smart Pulse Charging With Two Charging Modes. Quick Charging When Battery Is Not Fully Charged, Trickle Charging When Battery Is 90% Fully Charged. |
| Charging Current(MAX) | 4.0/8.0A |
| Protection | Over Current Protection & OverCharging Voltage Protection (SCRControl) Thermal Protection (CPU Control) When Temperature Inside UPS Is Over 45°C, Charger Will Stop Charging For 2.5 Minutes Followed By An 1.5 Minutes Charging. The Cycle Will BeRepeated Until The Temperature is Lower Than 44°C. |
| Temperature Compension | Yes |
| Numbers Of Battery | DC192V, Depending On The Capacity Of External Batteries |
| Optional Features |
| ECO Mode | Support |
| CVCF | Support |
| PDU | Support |
| Remote Panel | Wired Type, Up To 100M Length |
| Parallel Redundancy | Up To 4 Units Max (Option) |
| Environmental And Safety |
| Operating Temperature | 0 °C To 40°C (32F To 104F ) |
| Transit/Storage Temperature | -15°C To 55°C (5F To 131F) |
| Relative Humidity | 20-90%(NON-CONDENSING) |
| Operating Altitude | 0 ~ 3000 Meters |
| Audible Noise | ≤50 Dba |
| Safety Markings | BSMI | CE |
| EMC | Class B, EN50091-2, FCC Part15, IEC1000-2-2 |
| Quality Control System | ISO 9001:2000 |
| Noise Level | <60db@1 Meter |
| Indicator |
| LED Version | Load Level/Battery Level/Battery Mode; AC Mode/Bypass Mode/Fault |
| Battery Mode | Sounding Every 4 Seconds |
| Low Battery | Sounding Every Second |
| Overload | Sounding Twice Every Second |
| Fault | Continously Sounding |
| LCD Version | Load/Battery/Input/Output/Operating;Mode Information |
| Interface |
| Smart RS-232 | Software Supports Windows Family. Sun Solaris, IBM Aix, Compaq True64,SGIIRIX ,Freebsd.HP-UX, And MAC |
| USB (Option) | Windows Family& MAC |
| Internal Slot(Option) | SNMP/AS400 Relay Card/Rs485 (Option) |
| EPO(Option) | Support Emergency Shutdown |
| Physical |
| Dimensions: (D×H×W)mm | 595*390*578mm |
| N.W/G.W (Kg) | 595*390*578mm |
| N.W/G.W (Kg) | 3C10KS:27 | 3C15KS:35 | 3C20KS:35 |
| Packing | Standard Packing, Export Carton For Each Unit |
