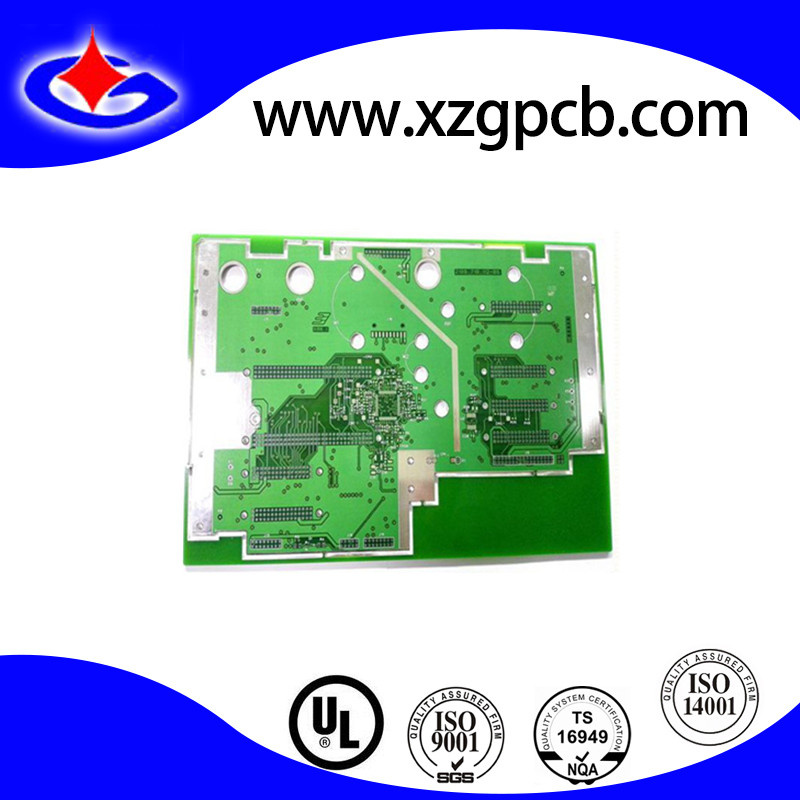

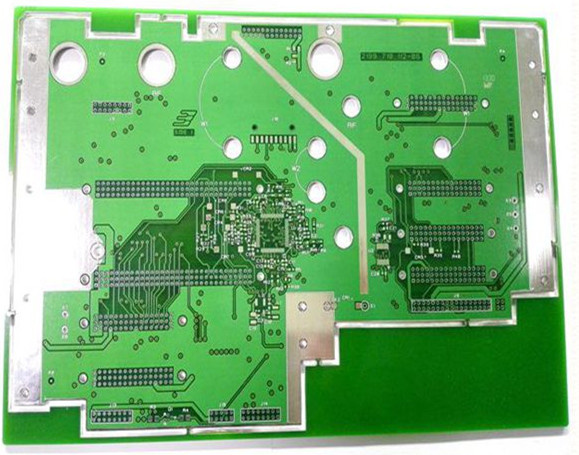

Double Sided PCB Circuit Board for Antenna Circuit PCB

Name: Double Sided PCB Circuit Board for Antenna Circuit PCB
Brand: all-electronics-online.com
SKU: 774784545
Availability: InStock
Rating: 4.6 (103 reviews)

Price:	US $ 0.05-0.1/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	xzg15112602
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Western Europe
Min Hole Size:	10 Mil
Min Line Width/Space:	12/12mil
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Brand:	Xzg

Product Description

Layer:2
Material type: FR-4-TG180
Board thickness: 1.6 mm
Outer Copper thickness: 2 OZ
Copper thickness in hole :> 25.0 um
Size - Max. Board Size: 23 × 25 (600mm×1000mm)
- Min. Drilled Hole Size: 10mil (0.25mm)
- Min. Line Width: 12mil (0.3mm)
- Min. Line Spacing: 12mil (0.3mm)
Surface finishing :Lead Free Hal
Solder Mask Color: Green
Silkscreen: White
PCB Packing - Inner packing: Vacuum packing / plastic Bag
- Outer packing: Standard carton packing
Certificate: UL, ISO 9001, ISO 14001,TS16949
Special requirements: Buried and blind vias+controlled impedance +BGA
Profiling: Punching, Routing, V-CUT, Beveling

Factory Tour:

Capability:

Why US:

UL (E246887), ISO9001, TS16949, ISO 14001 certified.
Turnover USD 50-100 million per year
25,000 sqm area,1100 staff
Mass Production from single to 20 layers
Special Material: ROGERS, Arlon, Taconic.etc.
Client: SAMSUNG, Skyworth, Malata, Midea.etc.

FAQ:

Q1:Are you a manufacturer or trading company?
A:XZG is a PCB manufacturer, specialized in PCB for over ten years.

Q2:What kind of PCB file you need before production?
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)

Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.

Q4:What is your minimum order quantity?

A:Our MOQ is 1 PCS.

Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!

Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.

Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.

Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc

Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
