Double-Sided PCB for Bluetooth Head Flexible PCB

Name: Double-Sided PCB for Bluetooth Head Flexible PCB
Brand: all-electronics-online.com
SKU: 638211285
Availability: InStock
Rating: 4.5 (24 reviews)

Price:	US $ 0.12/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Description

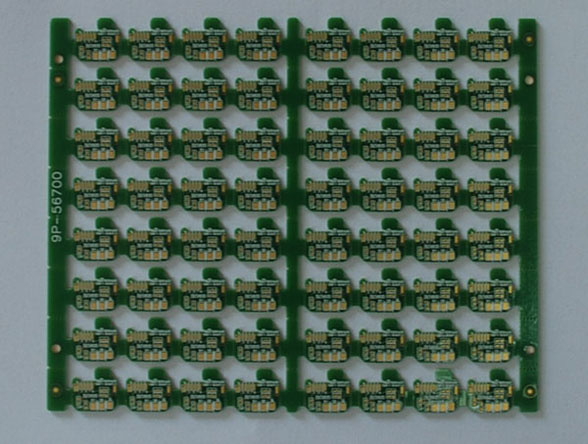

2 layer fr4 circuit board

Specification:

layer	2
Material	FR-4
Board Thickness	1.6mm
Copper Thickness	1oz
Silkscreen	White
Solder mask	Green
Surface Finishing	ENIG
Min Hole Size	0.2mm

Welcome to ZHEJIANG JUNHAO ELECTRONICS CO., LTD website!

ZHEJIANG JUNHAO is a professional pcb manufacturerhas over 20 years experience;
we are specialized in producting single-sided, double-sided and multilayer printed circuit boards in china.
Our products are widely used in Automotive electronics,Industrial equipment,Medical tools,Power Meter,Consumers electrionics and Security control ect;With rich experience of in this line, we will show you weare your reliable PCB supplier.

Why Us:

UL (E250425), ISO9001, TS16949, ISO 14001,RoHS, SGScertified.
Turnover USD 50-100 million per year
30,000sqm/month
20,000sqm area,350 staff
Mass Production from PCB to 20 layers
Material: FR-4, CEM-1, CEM-3 etc.
100% E-tested

Delivery Time For PCB board:
1.PCB production time:(1)2 layers:sample:  2-3 days /   production: within 7 days
                                     (2)4-6layers:sample: 5-6 days /   production: within 14 days
                                     (3)above 6layers:depend on Qty

The number of layer	Delivery date (Weekday, Exfactory date)
	Sample (Day)	Mass product
		Normal(Day)	Special(Day)
2 layers	2-3	6-8	3-5
4-6 layers	5-6	14	10
Above 6layers	Depends on Qty

Above delivery date need based on following terms
1.Have stock of raw material
2.All EQs (Engineering questions) have been solved.
3.Regular FR4 material

Technical capabilities:

MANUFACTURING CAPABILITY	ITEMS		PARAMETER
Mechanical	1	Material	FR-4, CEM-1, CEM-3,
	1	Material	Aluminium Based, Halogen Free
	2	Layers	1, 2, 4, 6, Etc
	3	Board Thickness	0.6mm-2.0mm
	4	Min PTH Size	0.25mm±0.075mm
	5	Min NPTH Size	0.2mm±0.05
Artwork	1	Min Conductor Width	0.1mm/4mil
	2	Min Conductor Space	0.1mm/4mil
	3	Min Pad Size	0.1mm/4mil
	4	Hole Copper Thickness	≥20um or as required
	5	Profile	Routing, Punching, V-Cut,Chamfer
	6	Chamfer Angle
	7	Warp & Wrist	≤0.7%
oldering mask	1	Availbal Colors	Green, Blue, Red, White, Black
	2	Peelable Solder Mask	Available
	3	Thickness	≥10um or as required
Silkscreen	1	Availbal Colors	Green, Blue, Red, White, Black
Silkscreen	2	Min Silkscreen Line Width	0.15mm
Finishing	1	HASL	1um-40um
	2	Lead-free HASL	1um-40um
	3	Immersion gold over nickel	Ni: 150um-300um Au: 1u" -3u"
	4	Hard Gold Plating	Ni: 150um-300um Au: 0.5um-3um
	5	OSP	0.2um-0.5um
	6	Carbon Ink Printing
	7	Golder Finger
Tolerence	1	Outline Tolerance	±0.1mm
	2	Hole Diameter Tolerance	PTH: ±0.075mm NPTH: ±0.05mm
	3	Hole Location Tolerance	±0.1mm

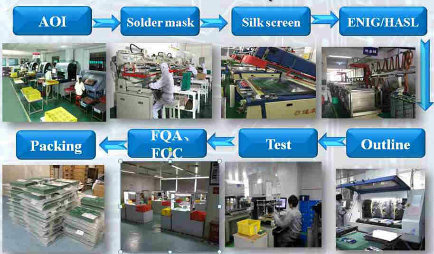

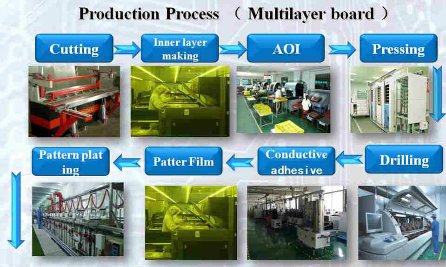

Equipmen and production process


copmany certifications


Our Culture:

Contact US:
Web:www.junhao-cn.com

tracy:tracy@junhao-cn,com

Prod Model:	JH102
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chemical Gold Thickeness:	1-40um
Structure:	Double-Sided Rigid PCB
Material:	Polyester Glass Fiber Mat Laminate
Production Process:	Subtractive Process
Brand:	Jh

Introduction

Zhejiang Junhao Electronics Co., Ltd established in Wenzhou, China...

Total investment in factory and equipments: Over RMB 360million.

We will provide you best PCB and service.

History

1. Year 2001: Established in Wenzhou China.

2. Year 2005: Build a New Factory with 15, 000 Square Meters.

Boost our produce capability to 40, 000m² /Month.

Belief

Better Products, Better World

We focus on PCB manufacturing, especially on Double-Side PCB.

Certificates

1. In 2004, we gained UL Accreditation. Our UL file No: E250425

2. In 2004, we were awarded RoHS Compliant Report

3. In 2010, we were awarded ISO 9001: 2008 and TS16949: 2009

4. We are the President Unit of PCB in Wenzhou CPCA

5. We are the Vice-President unit of CPCA (China Printed Circuit Association) in China.

Our Mission

1. To increase customer' S products' Value by providing Best Quality and

Best Solution.

2. To let people around us have Better Products and makes our World Better.

Zhejiang Junhao Eletronics Co., Ltd. Sincerely welcome you to join with us and make joint efforts to compose a new win-win chapter together.
