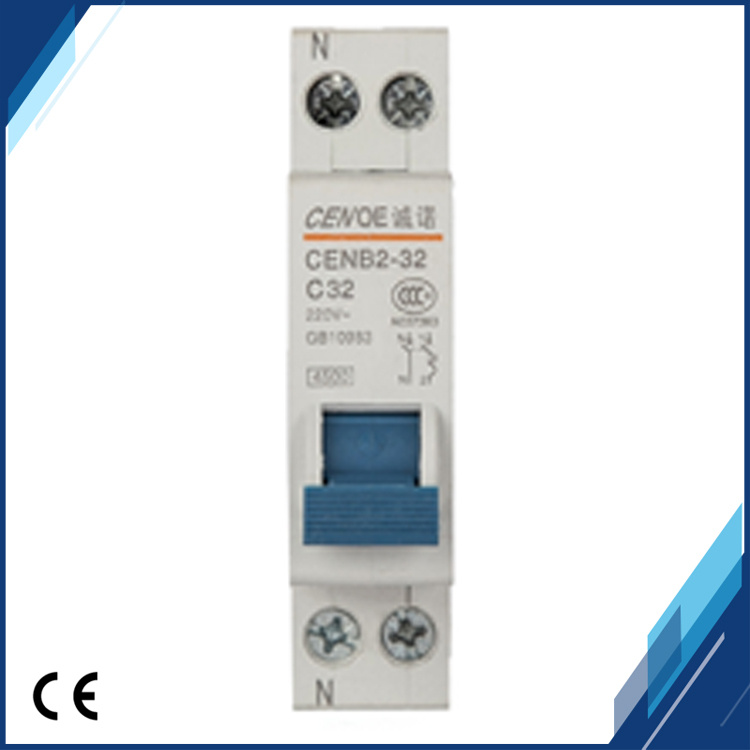

Dpn (CENB2-32) 1p+N32A Mini Circuit Breaker MCB with Current Overload and Short Circuit Protection
| Price: |
US $ 0.6-5.2/Piece |
| Min Order: |
12/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

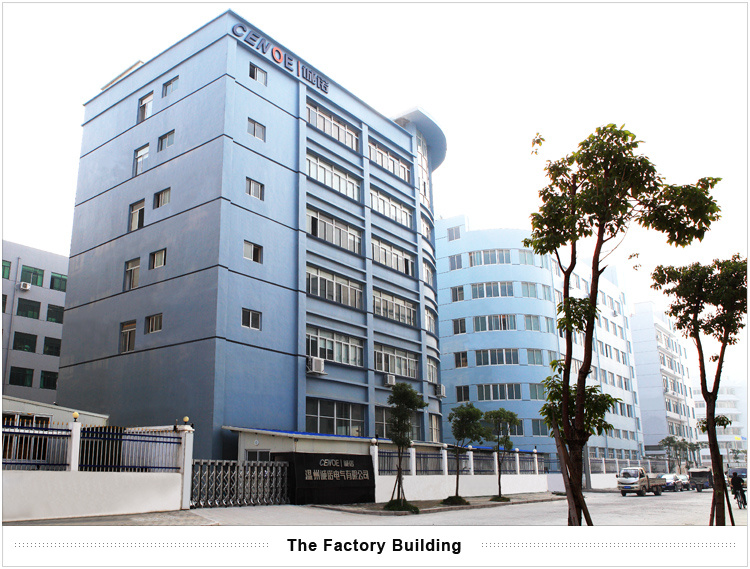

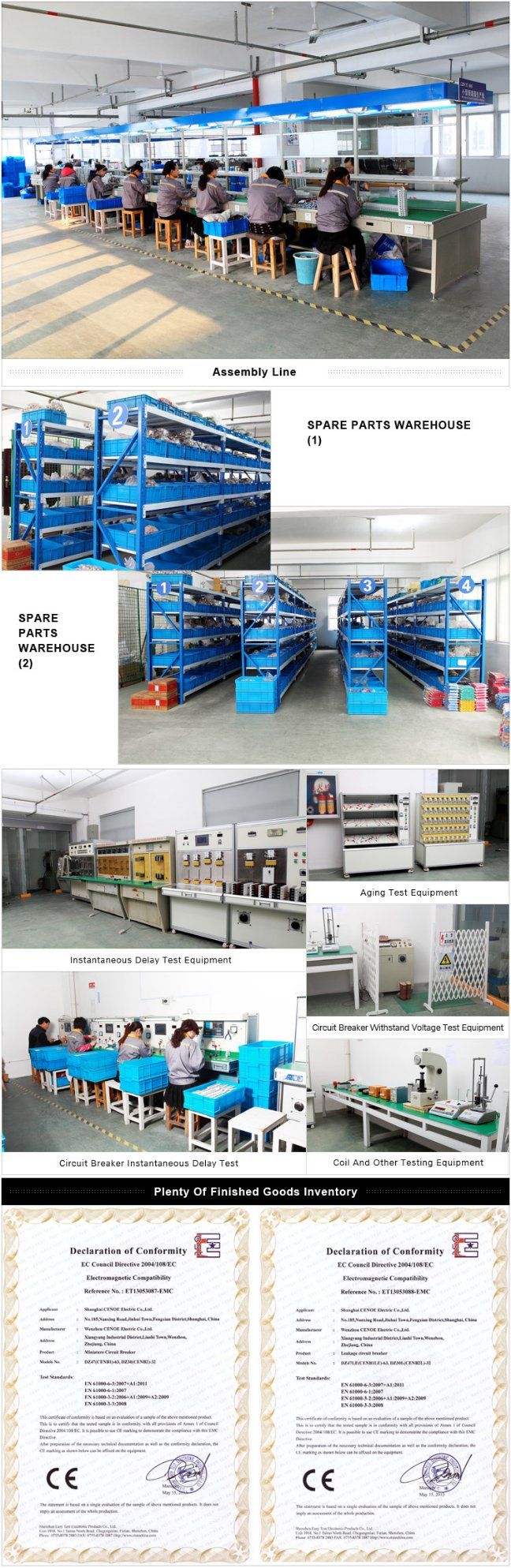

Zhejiang CENOE electric co., LTD. Is one of the professional enterprises collection of manufacturing, sales and researcherSo far, the 16 big series more than 600 kinds of specifications has been development and manufactured .The mainly products include small circuit breaker, molded case circuit breaker, leakage circuit breaker, modular socket ,residual current circuit breaker, intelligent universal type circuit breaker, control and protection switch, dual power automatic transfer switch, etc. The company introduces the advanced production equipment and perfect testing facilities, set up a technology research center and development team, And has passed ISO9001 quality system certification, the European Union CE certification and national compulsory CCC certification, the company also owns four national patent certificate, all products are quality of contractor shall be conducted by the people's insurance company of China.Part of the product performance has reached the international leading level, products are exported to Europe, America, Middle East and other countries and regions. CENOE in global markets, will follow a win-win concept and hand in hand with you, innovation value, achievement industry mode

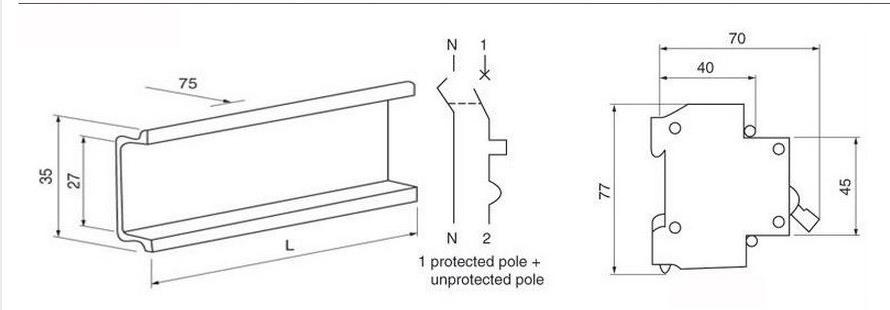

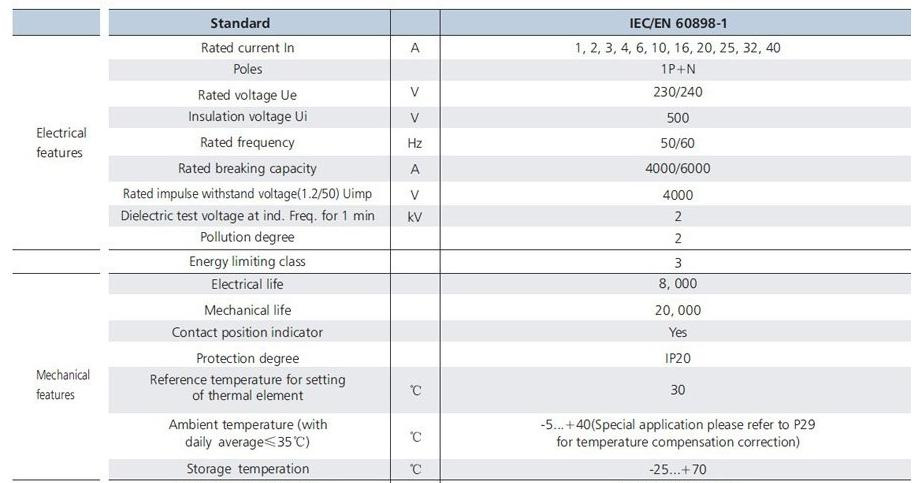

CENB2-32 series miniature circuit breaker is suitable for AC 50/60HZ, rated voltage 230 v, rated current 6 a - 32 a circuit, overload and short circuit protection for electrical wiring.CENB2 appearance is same as the ordinary unipolar DZ47and CENB1 circuit breaker, while internal using bipolar structure design, one of the great protection, an unprotected, bipolar closing and opening at the same time, thus solved due to the end of the civil residence single-phase using only 1 switch of all sorts of hidden trouble, really achieve the safe and reliable.So it is now the most ideal residential area distribution protector.The products accord with IEC60898, GB10963/16917 standard. | Main technical parameters |
| Number of Poles | 1P+N |
| Rated Current(A) | 16.20.25.32 |
| Rated voltage(V) | 230 |
| rated short circuit breaking capacity | tested circuit expected current | 3000A |
| power factor | 0.85-0.90 |
| Mechanical life | 20000times |
| protective grade | ZP20 |
| warranty | beyond 2 years |
| According to standards | IEC60898,GB10963/16917 |

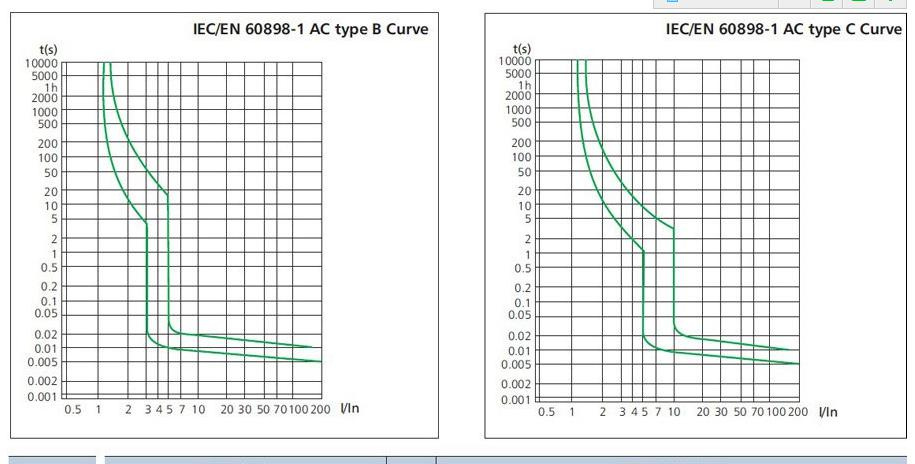

| Overload Trip Characteristic | | | | | |
Testing
Current(A) | Rated
Voltage(V) | Limited
Time | Pre-engage
Result | Start
Situation | Note |
| 1.13ln | all | t≥1h | non-trip | cold state | The current rise steadily to a frxed value within 5s |
| 1.45ln | all | t<1h | trip | heat state |
| 2.55ln | all | 1s | trip | cold state | Open the supplementary switch, connect the power |
| 5ln | all | 1≥0.1s | NON-trip | cold state | Open the supplementary switch, connect the power |
| 10ln | all | 1<0.1s | TRip | cold state | Open the supplementary switch, connect the power |
| Prod Model: |
CENB2-32 |
| Shape: |
New Style 2017 |
| Warranty: |
Beyond 2 Years |
| Rated Current: |
32A |
| Rated Voltage: |
230V |
| Inner Package Dimension: |
22.5*8*8cm( Each Box with 12PCS) |
| Outer Package Diemsion: |
43*24*24cm or Based on Client's Requirements |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
CCC |
