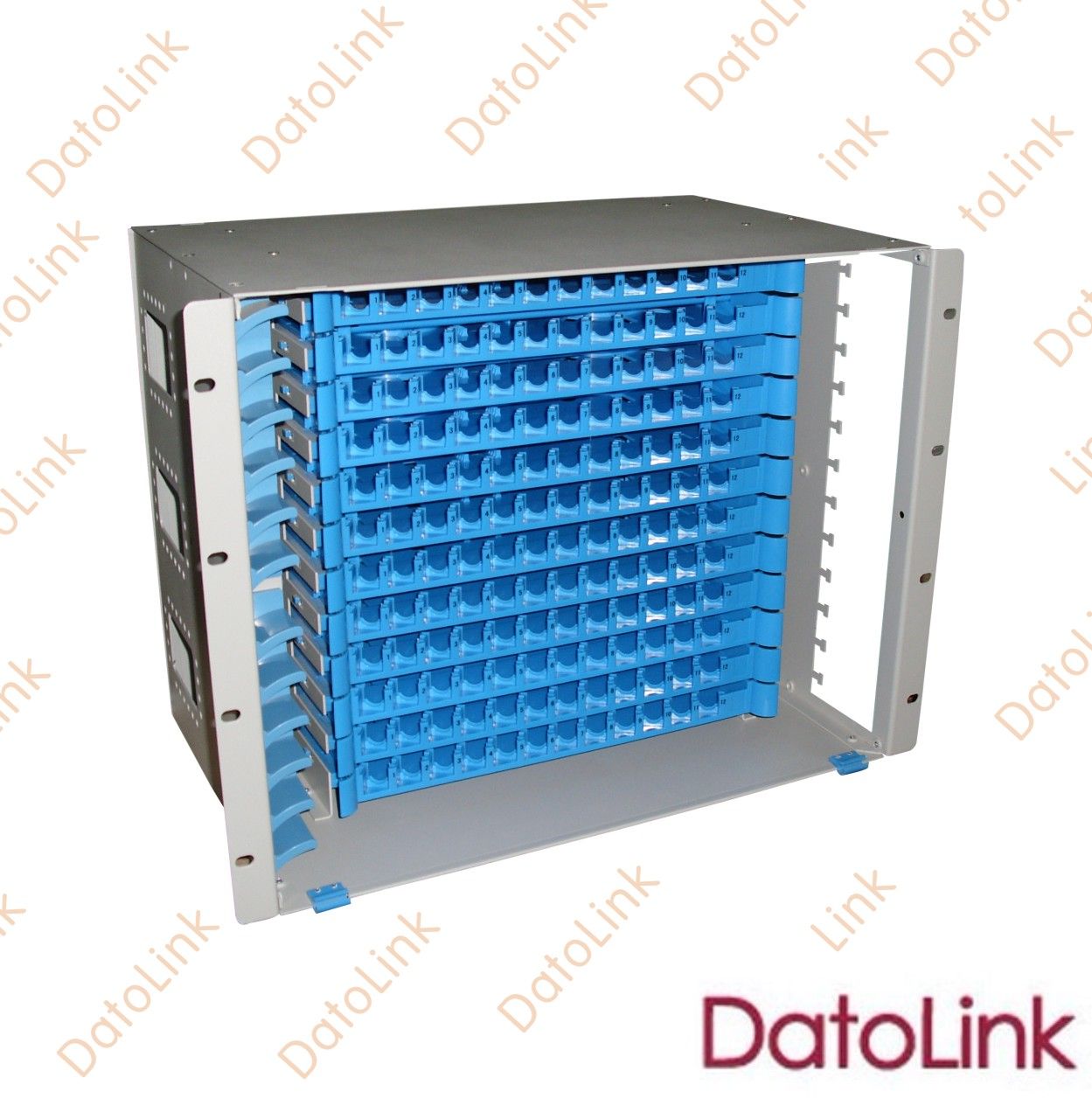

Drawer Type 144 Ports ODF

Name: Drawer Type 144 Ports ODF
Brand: all-electronics-online.com
SKU: 709444715
Availability: InStock
Rating: 5 (53 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DTLPP -D144
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	482300360mm
Application:	Communication
Type:	Multi-mode Fiber
Certification:	RoHS
Brand:	Datolink

Product Description

Description:
Generally, the ODF unit is a necessary part of the indoor optical distribution frame. 12 cores fusion splicing and distribution module plays the main role and its function is splicing, fiber storage and protection. A completed ODF unit will be with adapter, pigtail and accessories like splice protection sleeve, nylon tie, snake like tube, screw. Please confirm which type if you want adapter and pigtail with the ODF unit.

Key Features:
Standard 19" width
Capacity: 1-144fibers, 12fibers each module
The fusion splicing and distribution module is with sliding and can be pulled out separately.
Material of the metal box: Steel plates and aluminum alloy
Suitable for inserting installation of SC, FC, ST and LC adaptor
Front and rear covers can be opened, it is convenient for fiber connecting, supervising and maintaining

12-core Fusion Splicing and Distributing Module:

Material of the module: Plastic
Adaptor installation and fusion splicing points fixed in the module
Suitable for ribbon and common cables
Fusion splicing and distributing can be operated in the same working panel.
Install adaptor respectively.
It is better to use 0.9mm pigtail in the module

Shenzhen Datolink Communication Technology Co., Ltd. Was founded in the January of 2007 by several engineers, who have had many years of working experience in fiber optical as well as in structured cabling industry. Datolink is a high technology oriented company with fiber optical products and structured wiring. We are dedicated to the design, manufacture and sales, meanwhile, we can provide customers with complete cabling solutions in installation and maintenance.

The company has a strict and comprehensive system of quality control and approved the standard ISO9001: 2000. Is well connected with raw materials providers and factories worldwidely, to offer customers a broad line of products with competitive prices and very soon time of delivery.

Our products have been exported to over 20 countries and regions such as Europe, Middle East, Southeast Asia, Latin America, etc. Datolink Ltd is committed to offer the partners high quality products and professional services, we look forward for the successful development with mutual-benefits, for casting the future of fiber optical and structured cabling!
