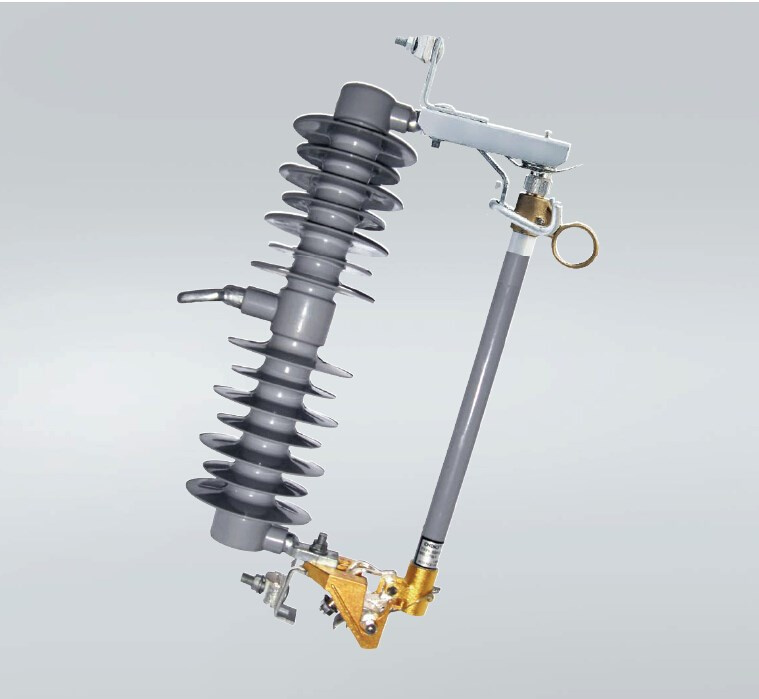

Drop-out Fuse Series 15kv-27kv Cug-6

Name: Drop-out Fuse Series 15kv-27kv Cug-6
Brand: all-electronics-online.com
SKU: 760274765
Availability: InStock
Rating: 4.3 (25 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Type	Rate voltage kV	Rate current(A)	Breaking current(A)	Impulse voltage(BIL)	Power frequency with standvoltage	leakage distance	Weight(KG)	Dimensions
CUG-6	15	100	10000	125	45	350	8.8	48×34.5×10.5
CUG-6	15	200	12000	125	45	350	8.8	48×34.5×10.5

utout features:
The dropout fuse is mainly used to protect lines and transformers against short circuits and overload. Rated voltage: 12KV~36KV; Rated current: 100A, 200A.
1. Interrupting current capability: interrupt current 12.5KA; maximum 16kA fault current/four times.
2. Long creep age distance
3. Fuse tube is composed of Epoxy fiberglass tube and bone fiber. Moisture resistances, high interruption capability, deform resistance, UV resistance, and aging resistance.
4. Material of Contacts consists of copper and copper alloy, and surface is silvered to reduce the resistance, improve conductivity, and lower temperature rise.
5. The lower pocket and contacts are made of copper alloy casting and heat galvanized to achieve high strength, and high resistance to corrosion, and can withstand thermo and dynamic impulse caused by short-circuit current.
6. The upper and lower contacts have good alignment property. No aliening adjustment needed during installation, and easy for operation.
7. Heat galvanized metal parts, high pollution resistance, and 1000h salt-fog pollution test passed.
8. Advanced design to assure fuse tube being hooked after dropout for safety consideration.
9. Interruption using stepwise structure; can interrupt high and low fault current credibility.
10. Water resistance: pressure-relief cap of upper contact has water resistance and can reduce ionized gas to affect the upper circuit. Button of fuse link can promise inside of tube dry.
11. Manufacturing process has high precision; interchangeability
12. Light weight, small volume, convenient to install

Prod Model:	UGD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Test:	Type Test Report
Delivery Date:	15days~35days After Order Confirmed
Quality Check:	All Products Checked by Experienced QC
OEM Service:	Welcome
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Shape:	Assorted
Fusing Speed:	Normal Type Circuit Breaker
