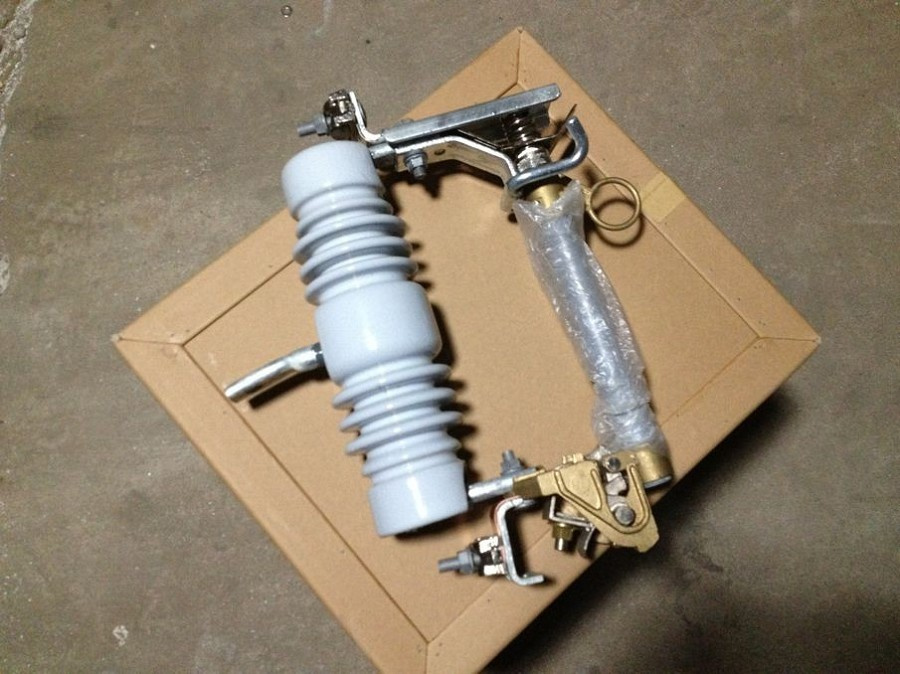

Drop out Fuses 10kv
Price: |
US $ 11/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P |
Prod Model: |
PRW-10/100 |
12: |
Kv |
24: |
Kv |
36: |
Kv |
Structure: |
Zinc Oxide Arrester |
Installation: |

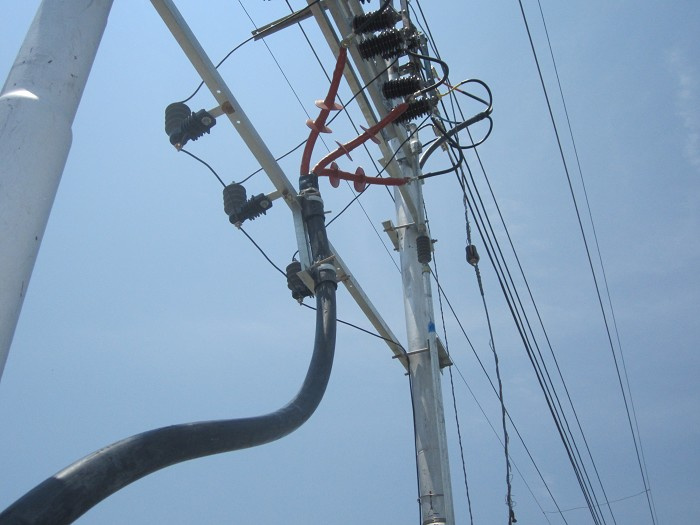

Pole Line |
Application: |
AC/DC System |
Size: |
Meidum |
Operation Voltage: |
High Voltage |
Material: |
ZnO |
Certification: |
Xihari |
Brand: |
Oeipower Jingguan |
Type: |
Distribution |
Shape: |
Round |
Product Description
METAL OXIDE SURGE ARRESTERPolymer housed for outdoor applicationFeaturesBetter Electrical performance & reliability
Ease of Installation-Light weight & smaller size
Better Operating conditions
Explosion & shatter proof & less mechanical
damage to nearby equipments
Better performance in polluted environment
Vandalism resistant
Free from Moisture ingress
Higher safety
Higher mechanical strength
Insensitive to UV radiation
High resistance to Ozone & Corona
Excellent Tracking resistance
Performance DataSystem Voltage
Rated Voltage (kV):0.1-275
Nominal discharge current (kA)
High current capability (4/10us) kA
Energy Class :
Energy absorption Capability kJ/kV
Short Circuit (Pressure relief) kA:40
Standard in accordance with:IEC60099-4
Porcelain housed for outdoor application
For protection of transformer & switchgear.
Highly non-linear MOV.
Explosion Proof - Pressure Relief Design.
High energy handling capacity.
Glazed brown Porcelain Housing.
Corrosion proof Aluminum alloy metal flange.
Suitable for Ambient -400C to +550C.
manufactures effective surge protection device with the modern technology of highly non-linear Zinc
Oxide Varistor blocks and thus diverts natural lightning surge and switching surge to earth and simultaneously clip off
any follow on current. Our station class arresters are designed to provide maximum safety to personnel and sub-station
equipment even at the enormous short circuit duty. Research and Development is an ongoing process at Elektrolites
with the active collaboration of experts in the industry.
CONSTRUCTION & OPERATING PRINCIPLE Lightning Arrestors 11kV No. | DETAIL | UNITS | DATA |
| Type | | 11kV gapless type metal oxide surge arrester - Distribution class |
1. | Nominal system voltage | kV | 11 |
2. | Highest system voltage | kV | 12 |
3. | Basic Insulation Level (BIL) | kV | 95 |
| 3. Ratings and type of surge arrester | | |
4. | Specification to which surge arrester complies | | IEC 60099-4 |
5. | Rated voltage of surge arrester | kV | 10 |
6. | Nominal, 8/20 µs, discharge current rating of surge arrester | kA | 10 |
7. | Maximum continuous operating voltage of surge arrester | kV | 7.3 |
8. | Gapless or gapped type metal-oxide surge arrester | | Gapless |
9. | Material of insulation | | High temperature vulcanised silicon rubber |
10. | Rated frequency of surge arrester | Hz | 50 |
11. | Design altitude of surge arrester (above sea level) | m | 1 400m |
12. | Design ambient temperature of surge arrester | oC | -1 to40 |
13. | Specific creepage distance of surge arrester | .mm/kV | 25 |
| Automatic earth lead disconnectors requirements | | |
14. | Automatic earth lead disconnectors to be fitted | Yes/No | YES |
15. | Corrosion protection of metal and alloy parts: galvanising specification and/or stainless steel grade | | To SABS 763, 316 |
| Tests | | |
16. | Previous type test results/certificate to be provided with bid | Yes/No | Yes |
17. | Routine test results/certificate to be provided on delivery | Yes/No | Yes |
18. | Drawing showing dimensions of the arrestor to be provided with the bid | Yes/No | Yes |
19. | Minimum one minute wet power frequency withstand voltage of external insulation of surge arrester housing | kV | 28 |
20. | Maximum steep current impulse residual voltage for a 10 kA, 1/20 µs, discharge current | kV | 50 |
21. | Maximum lightning impulse residual voltage for a 10 kA, 8/20 µs, discharge current | kV | 40 |
22. | Lightning, 1,2/50 µs, impulse withstand level of external insulation of surge arrester housing | kV | 95 |
23. | Line discharge class rating | | 1 |
24. | Long duration current, 2 000 µs, impulse withstand | A | 250 A |
25. | High current, 4/10 µs, impulse withstand | kA | 100 kA |
26. | Automatic earth lead disconnector to be tested in accordance with IEC 60099-4 | Yes/No | Yes |
33kV S/N | TECHNICAL DETAILS | UNITS | DATA |
1. | Type | | 33kV gapless type metal oxide surge arrester - Distribution class |
2. | Nominal system voltage | kV | 33 |
3. | Highest system voltage | kV | 36 |
4. | Power frequency | Hz | 50 |
5. | Basic Insulation Level (BIL) | kV | 170 |
| 3. Ratings and type of surge arrester | | |
6. | Specification to which surge arrester complies | | IEC 60099 |
7. | Rated voltage of surge arrester | kV | 29 |
8. | Nominal, 8/20 µs, discharge current rating of surge arrester | kA | 10 |
9. | Maximum continuous operating voltage of surge arrester | kV | 22 |
10. | Gapless or gapped type metal-oxide surge arrester | | Gapless |
11. | Insulation Material | | Silicon rubber |
12. | Cantilever strength of surge arrester | Nm | 300 |
13. | Rated frequency of surge arrester | Hz | 50 |
14. | Design altitude of surge arrester (above sea level) | m | 1 400m |
15. | Design ambient temperature of surge arrester | oC | -1 to 40 |
16. | Minimum phase-to-ground specific creepage distance of surge arrester | .mm/kV | 25 |
| Automatic earth lead disconnectors requirements | | |
17. | Automatic earth lead disconnectors fitted | Yes/No | Yes |
18. | Corrosion protection of metal and alloy parts: galvanising | | To SABS 763, 316 |
| | | | |
| specification and/or stainless steel grade | | |
| Tests | | |
19. | Previous Type Test reports/certificate from recognized authority to be provided with bid | Yes/No | Yes |
20. | Minimum one minute wet power frequency withstand voltage of external insulation of surge arrester housing | kV | 70 |
21. | Maximum steep current impulse residual voltage for a 10 kA, 1/20 µs, discharge current | kV | 99.7 |
22. | Maximum lightning impulse residual voltage for a 10 kA, 8/20 µs, discharge current | kV | 91.8 |
23. | Lightning, 1,2/50 µs, impulse withstand level of external insulation of surge arrester housing | kV | 170 |
24. | Line discharge class rating | Class | 1 |
25. | Long duration current, 2 000 µs, impulse withstand | A | 250 A |
26. | High current, 4/10 µs, impulse withstand | kA | 100 kA |
27. | Is the automatic earth lead disconnector tested in accordance with IEC 60099-4? | Yes/No | Yes |
66kV S/N | TECHNICAL DETAILS | UNITS | DATA |

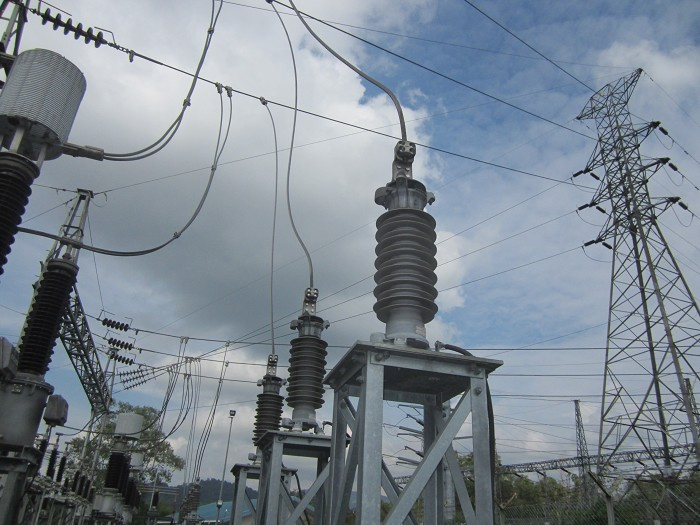

1. | Description | | Station type lightning arrestor complete with steel support structures. |
2. | Type | | Zinc oxide gapless lightning arrestor |
| System parameters | | |
3. | Nominal system voltage | kV | 66 |
4. | Highest system voltage | kV | 72.5 |
5. | Power frequency | Hz | 50 |
6. | Type of system earthing | | Effective/Non effective |
7. | Type of arrestor connection to system | | Line to ground |
| 3. Ratings and type of surge arrester | | |
8. | Rated voltage of surge arrester | kV rms | 54 |
9. | Nominal, 8/20 µs, discharge current rating of surge arrester | kA peak | 10 |
10. | Maximum continuous operating voltage of surge arrester | kV | 43 |
11. | Minimum one minute wet power frequency withstand voltage | kVrms | 140 |
151
| of external insulation of surge arrester housing | | |
12. | Maximum steep current impulse residual voltage for a 2 kA, 30/60 µs, discharge current | kVpeak | 104 |
13. | Maximum lightning impulse residual voltage for a 10 kA, 8/20 µs, discharge current | kVpeak | 127 |
14. | Minimum lightning, 1,2/50 µs, impulse withstand level of external insulation of surge arrester housing | | 325 |
15. | Line discharge class rating | | 2 |
16. | Lighting arrestor counter, leakage current meter and their accessories to be provided | Yes/No | Yes |
17. | Gapless or gapped type metal-oxide surge arrester | | Gapless |
18. | Insulation Material | | Porcelain |
19. | Cantilever strength of surge arrester | Nm | 3000 |
20. | Rated frequency of surge arrester | Hz | 50 |
21. | Maximum angle from vertical at which surge arrester is fully functional | Deg | 45 |
22. | Design altitude of surge arrester (above sea level) | m | 1400 m |
23. | Design ambient temperature of surge arrester | oC | -1 to 40 |
24. | Humidity | % | 85 |
25. | Specific phase-to-ground creepage of surge arrester | .mm/kV | 25 |
26. | Corrosion protection of metal and alloy parts: galvanising specification and/or stainless steel grade | | to SABS 763 or 316 stainless steel |
27. | Previous type test results/certificate to be provided with bid | Yes/No | Yes |
28. | Design drawings showing dimensions including foundations and brochures to be provided with bid | Yes/No | Yes |
29. | Quality Assurance certification to be provided with the bid | Yes/No | Yes |
30. | Routine test results/certificate to be provided on delivery | Yes/No | Yes |
31. | Galvanized steel support structures complete with bolts & washers to be provided on delivery | Yes/No | Yes |
32. | Applicable standard | | IEC60099 |
152
88Kv S/N | TECHNICAL DETAILS | UNITS | DATA |
33. | Description | | Station type lightning arrestor complete with steel support structures. |
34. | Type | | Zinc oxide gapless lightning arrestor |
| System parameters | | |
35. | Nominal system voltage | kV | 88 |
36. | Highest system voltage | kV | 100 |
37. | Power frequency | Hz | 50 |
38. | Type of system earthing | | Effective/Non effective |
39. | Type of arrestor connection to system | | Line to ground |
| 3. Ratings and type of surge arrester | | |
40. | Rated voltage of surge arrester | kV rms | 84 |
41. | Nominal, 8/20 µs, discharge current rating of surge arrester | kA peak | 10 |
42. | Maximum continuous operating voltage of surge arrester | kV | 67 |
43. | Minimum one minute wet power frequency withstand voltage of external insulation of surge arrester housing | kVrms | 185 |
| Maximum steep current impulse residual voltage for a 2 kA, | kVpeak | 188 |
| 30/60 µs, discharge current | | |
45. | Maximum lightning impulse residual voltage for a 10 kA, 8/20 µs, discharge current | kVpeak | 218 |
46. | Minimum lightning, 1,2/50 µs, impulse withstand level of external insulation of surge arrester housing | | 450 |
47. | Line discharge class rating | | 2 |
48. | Lighting arrestor counter, leakage current meter and their accessories to be provided | Yes/No | Yes |
49. | Gapless or gapped type metal-oxide surge arrester | | Gapless |
50. | Insulation Material | | Porcelain |
51. | Cantilever strength of surge arrester | Nm | 3000 |
52. | Rated frequency of surge arrester | Hz | 50 |
53. | Maximum angle from vertical at which surge arrester is fully functional | Deg | 45 |
54. | Design altitude of surge arrester (above sea level) | m | 1400 m |
55. | Design ambient temperature of surge arrester | oC | -1 to 40 |
56. | Humidity | % | 85 |
57. | Specific phase-to-ground creepage of surge arrester | .mm/kV | 25 |
58. | Corrosion protection of metal and alloy parts: galvanising specification and/or stainless steel grade | | to SABS 763 or 316 stainless steel |
59. | Previous type test results/certificate to be provided with bid | Yes/No | Yes |
60. | Design drawings showing dimensions including foundations and brochures to be provided with bid | Yes/No | Yes |
61. | Quality Assurance certification to be provided with the bid | Yes/No | Yes |
62. | Routine test results/certificate to be provided on delivery | Yes/No | Yes |
63. | Galvanized steel support structures complete with bolts & washers to be provided on delivery | Yes/No | Yes |
64. | Applicable standard | | IEC60099 |
Our company is one of factory Of OEIpower, Local in No. 15, Tongbai, Industrial Zone, Nanyang City, Hean Province, China, OEIpower to provide complete solutions for the Energy sector, mainly power generation, transmission and distribution markets. OEIpower is able to lead turn-key projects and also cooperate in specific parts of engineering projects. Regarding products, OEIpower is creating a solid sales and distribution network in order to manage the main components involved in the energy sector and markets.
It is a professional Manufacturing. Meanwhile, it is specialized in power transmission and distribution products such as Insulators, Drop-out Fuse, Fuse link, Load Interrupter Air Switchs, Surge arrester, Outdoor Off-Load Isolator Switch Disconnector switch etc. We have won many orders for World markets, Like South Korea, Spain, Malaysia, Thailand, Yemen, etc.
Our most of the products have passed the type test performed by Electric Power lin Aeeseeory Quality Inspection Center of electric Power industry, such as Xi'an High Voltage Research Insitute. And IST off-load switch type IST-12KV/400A already passed CENTRAL POWER RESEARCH INSTITUTE HIGH-VOLTAGE LABORATORY India. Our 12KV 8KA Drop Out fuse already passed the ASTA testing in the year 2015.
Promise of After-sales Service
To ensure the quality of After-sales Service, We have established the After-sales Service Department, and compiled the process of after-sales service, We require service-man should passion, cordial, patient, careful, considerate and instant for customers. Our general service: After receive telephone, the local service-man direct to the site to solve the problem, to security reasonable interest of the customer. When finishing all the work. Service men must fill the bill of customers' feedback suggestion, and ask the customers' signature. Then deliver it to the After-sales Service Department as feedback information, then to the designing and exploiting department. Special condition: Directly send someone from company to dealing, Our products' guarantee days are two years. Within those days, Quality problems of causing by customers. We'll repair freely, Causing by customers using, operating and keeping un-properly, we'll repair permanently and charge properly. Out of guarantee days, we'll repair with charge (fee of component and repairing).
Main Technical Testing Equipment
No.
Name of checkout equipment
1
86-G Type impulse peak Voltage test equipment
2
MY-4KV Type voltage dependent resistor test equipment
3
MDA-30 Type DC parameter test equipment
4
Metal-oxide surge arrester bleeder current test equipment
5
500KV power frequency withstand voltage test equipment
6
HR-3 Type loop resistance test equipment
7
GKC-6 Type High-voltage switch mechanical properties test equipment
8
5A heavy current test equipment
9
YHN-8 Type auto power frequency withstand voltage console
10
CJV-800 Type impulse with stand voltage test equipment
11
CJI-1 Type impulse with stand current test equipment
12
JF-1 Type complementary Metal-oxide surge arrester instrument for measuring partial discharge
13
XR-2 Type power frequency test equipment
14
MD-1A Type Metal-oxide surge arrester electrification test equipment
15
JZ-800 Type AC/DC high voltage test equipment
16
XC -5/220 Type control box
