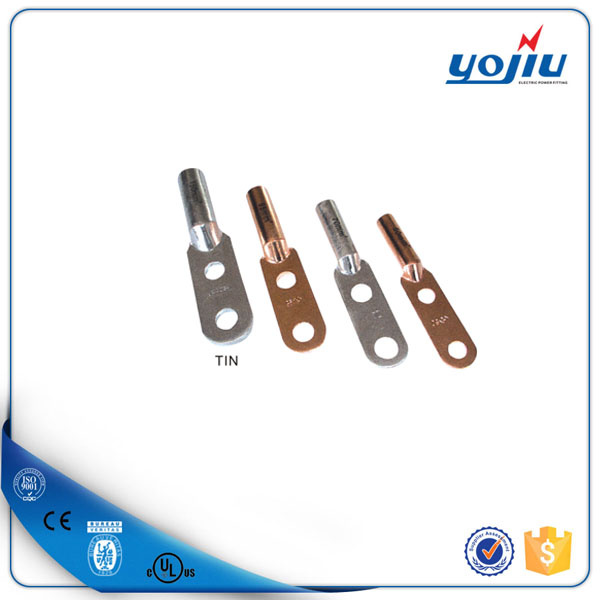

Dtd Series Tin-Plated Cu Copper Lug with Double Holes Terminal

Name: Dtd Series Tin-Plated Cu Copper Lug with Double Holes Terminal
Brand: all-electronics-online.com
SKU: 840406995
Availability: InStock
Rating: 4.4 (124 reviews)

Price:	US $ 0.4-15/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Description

DTD Copper Cable Lug With Two Holes on the tongue

1.Type: DTD Copper Cable Lug
2.. Material: Copper Bar
3.Surface:Original color or tin plated

DTD Copper Cable Lu are suitable for the conjunction of wires cable in the distribution equipment and the electrical equipment. DTD series of copper connecting terminals is made of copper bar(T2) with oil plugging and double holes on the pal

Dimension

Item No.	Cable spec (mm²)	Dimensions(mm)											Note
Item No.	Cable spec (mm²)	D	d	L1	L2	L3	L4	L5	L	W	T	φ×2	Note
DTD-16	16	10	6.4	33	45	43	25	8	88	16	4	8.5	(1)Can be produced according tocustomer's drawings
DTD-25	25	11	7.4	34	46	44	25	9	90	18	4	8.5
DTD-35	35	12	8.7	36	48	62	40	10	110	20.5	4	10.5
DTD-50	50	14	9.7	38	52	63	40	11.5	115	23	5	10.5
DTD-70	70	16	11.7	43	59	68	40	13	127	26	5	12.5
DTD-95	95	18	13.7	48	63	70	40	14	133	28	5	12.5
DTD-120	120	20	15.2	50	68	72	40	15	140	30	6	14.5
DTD-150	150	22	16.7	55	73	77	40	17	150	34	6	14.5
DTD-185	185	24	18.7	57	82	78	40	18.5	160	37	6.5	17
DTD-240	240	27	21	57	84	80	40	20	164	40	6.5	17
DTD-300	300	30	23.5	67	90	95	40	25	185	50	7	17
DTD-400	400	32	25.5	75	115	100	45	26	215	55	7.5	21
DTD-500	500	35	28.5	77	120	100	45	26	220	55	9.5	21
DTD-630	630	45	33	80	125	105	45	28	230	60	9.5	21

Certification

Company Profile

Packing

Exhibition

Why Choose YOJIU

1. Professional operation experience.

2. The sizes all can be customised.

3. Sample for your reference available.

4. Low MOQ, Low Price.

5. Safe packing and prompt delivery.

Prod Model:	DTD
Yojiu Profession:	28 Years
Crimp Terminal Surface:	Original
Crimp Terminal Material:	Copper
Usage:	Wire Connector, Power
Others:	OEM Service Offered
Product Name:	Dtd Copper Lug
Name:	Copper Cable Lug
Special:	Good Quality
Certificate:	ISO9001
Samples:	Available
Type:	Dual Hole Terminals
Material:	Copper
Application:	Conduct Electricity
Character:	Other
Interface Type:	Other
Certification:	Other
Brand:	Yojiu or OEM

We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
