Duct-Mounted Humidity and Temperature Transducer for HVAC Applications

Name: Duct-Mounted Humidity and Temperature Transducer for HVAC Applications
Brand: all-electronics-online.com
SKU: 765885445
Availability: InStock
Rating: 4.7 (134 reviews)

Price:	US $ 26-38/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

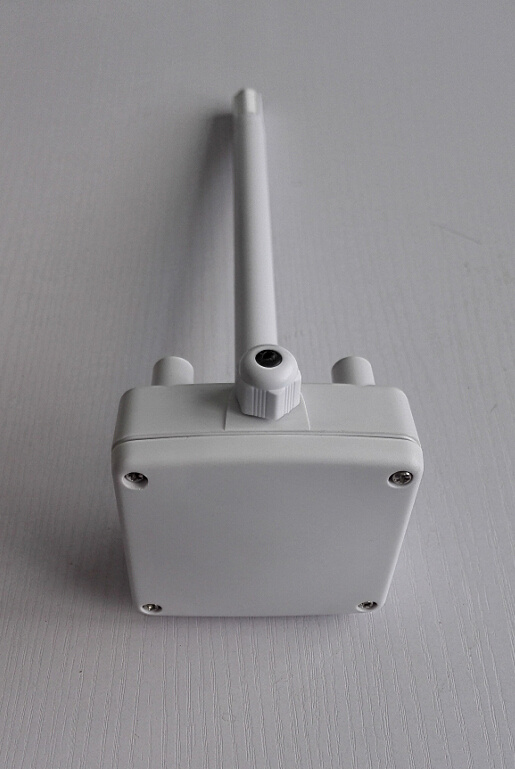

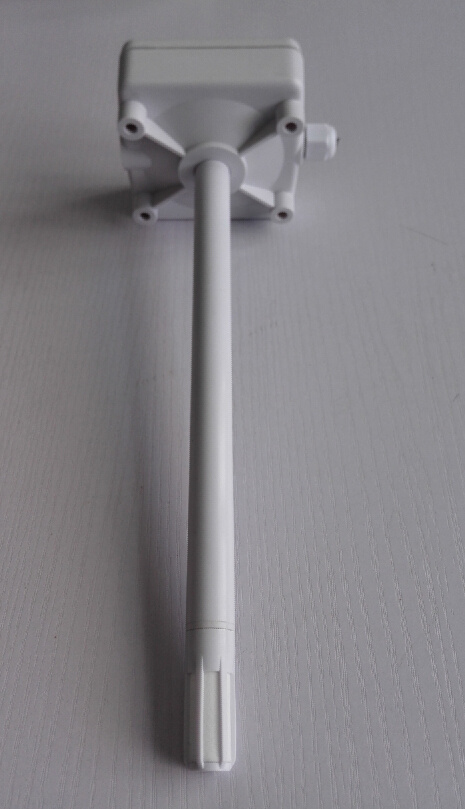

The FHT31 employs the new humidity / temperature Sensirion sensor element SHT21 with excellent long term stability and resistance against pollutants. In combination with a long calibration experience, the FHT31 provides a measurement accuracy of ±3%RH and is available for duct-mounted with current, voltage output.

Technical Data:

Parameter	Temperature	Relative Humidity
Measurement Range	0...+50°C -40...+60°C -20...+80°C	0...100% RH
Accuracy at 25°C	±0.3°C	±3% RH (20...80% RH)
Stability	<0.1°C / year	<0.5%RH / year
Response	<15s	<12s(63%)
power supply	2-wire: 12...24V 3-wire: 15...24V
Output	2-wire: 4...20mA 3-wire: 4...20mA / 0...1/5/10V
Load	2-wire: (VDD - 7V) / 0.02A 3-wire: Current mode less than 500Ω, Voltage mode greater than 10kΩ
Sensor protection	membrane filter
Housing material	Polycarbonate
Protection grade	IP65

Ordering Guide:

SERIES	OUTPUT	T-SCALING	DISPLAY
FHT31	(A) 2-wire current mode 4...20mA (B) 3-wire current mode 4...20mA (D) 3-wire voltage mode 0...10V (E) 3-wire voltage mode 0...5V (F) 3-wire voltage mode 0...1V	(T1) 0... +50°C (T2) -40...+60°C (T3) -20...+80°C	(D) LCD

Relevant Products:

Contact US:

Focus Sensing and Control Technology Co.,LTD
Sales Manager
Cherry Chen
Tel: +86-551-69109668

Prod Model:	FHT31 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sensing Type:	Semiconductor IC
Output Signal Type:	4-20mA, 0-5V, 0-10V, RS485
Material:	PC+ABS
