Duct Use Antirodents Single Model GYFTY Fiber Optic Cable with 72 Core

Name: Duct Use Antirodents Single Model GYFTY Fiber Optic Cable with 72 Core
Brand: all-electronics-online.com
SKU: 825706655
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	US $ 0.3-0.45/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

wholesale alibaba aerial PE sheath fiber optic cable GYFTY 96 core

Description:

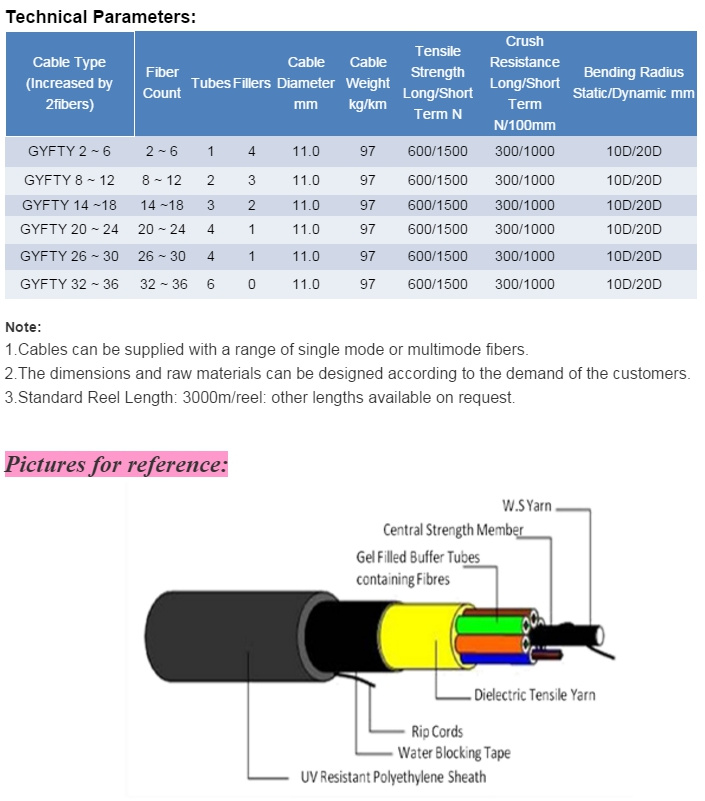

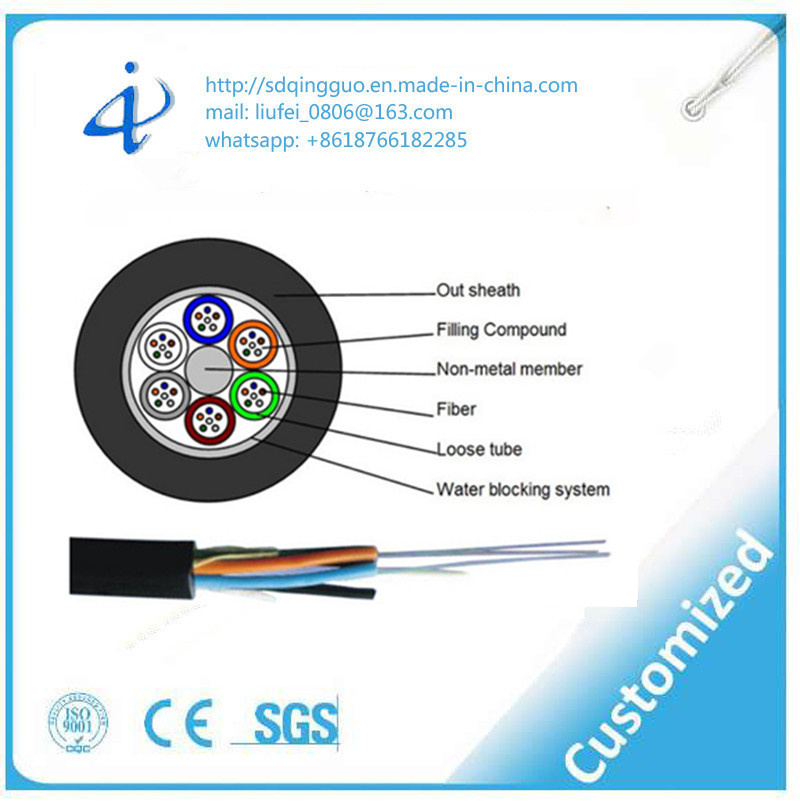

In the GYFTY cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around non-metallic central strength member (FRP) into a compact and circular cable core. the strength member would be covered with polyethylene (PE). The water-blocking materials are distributed into the interstices of the cable core.Then the cable is completed with a PE sheath.

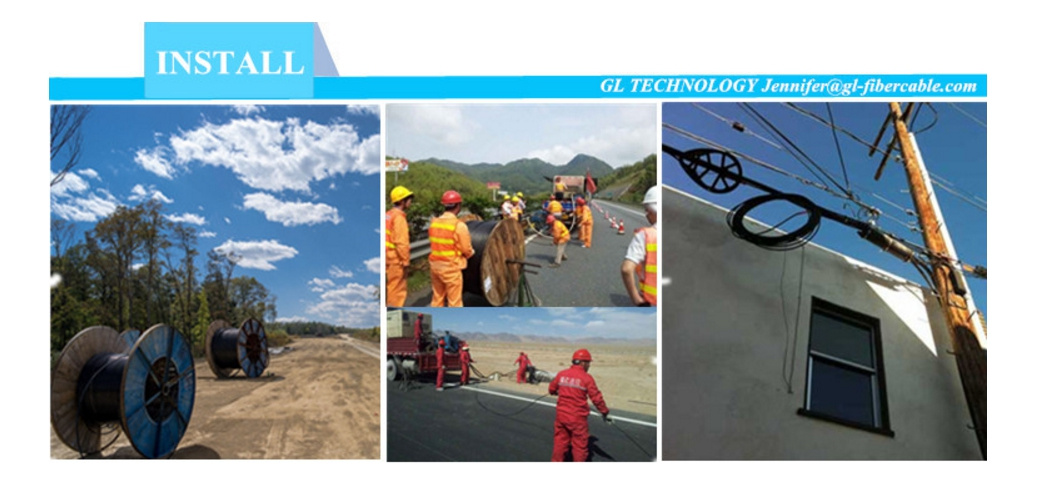

Application:Duct/Aerial

Temperature Range:

Storing temperature:-40ºC to +70ºC

Operating temperature:-40ºC to +70ºC

Product name	Model	Min. Order
Optical fiber cable	GYFTY fiber optic cable with 72 core	1 kilometer

Prod Model:	GYFTY fiber optic cable with 72 core
Number Of Conductors:	=or Above 10
Outer Jacket:	PE
Cores:	2~288
Strengthen Part:	FRP Strength Member
Loose Tube:	PBT
Operation Temperature:	-40° to +70°c (-40° to +158°f)
Fiber Type:	Singlemode/ Multimode
Work Time:	More Than 30 Years
Standard:	Yd/T 901-2009/IEC 60794-1

Jinan Qingguo Optical Fiber Co., Ltd is a leading enterprise as a manufacturer of power fiber optic cable(ADSS cable and OPGW cable), aluminum clad stee for electric power( Aluminum Conductor Aluminum Clad Steel Reinforced) and other fiber optic cable in China. We have over 300 equipments for manufacturing various cables and optic cables and over 100 testing equipments. The production lines include Austria MS Coloring Machines, Color Circling Machine, Switzerland Swiss Cable Secondary Coating Line, France Delachaux stainless steel tube welding line, European first-class steel tube laser welding line for submarine and OPGW fiber optic cables, fluro-plastic high temperature lines of US Davis company, three-layer simultaneously extruded crosslinking lines, CCV Catenary production lines of Troester Company, Germany, GJB-complied military cable production lines and so on.

Our company pass the certification of ISO 9001: 2000 Quality Systems in 2010. With perfect quality control system, talented technical team, advanced equipment, and our reliable quality, our products gain reputed fame in domestic market and overseas market.
