Packaging & DeliveryPackaging Details: Wooden Drum for long term shipping
Delivery Detail: 15~20 Days
Specifications
G657 Fiber FTTH Drop Cable
1.For LAN & building.
2.Self-supporting cable
3.Fiber to the desk optical cable
4.RoHS certificate
FTTH Drop Fiber Cable
1. A single mode splitter has one input port and multiple output ports for dividing an optical signal.
2. SAILING fiber optic splitter is the planer waveguide integrated optic device which based on the quartz substrate, with small size, wide field operation wavelength and high reliability.
Technical characteristics
-G657 fiber put in the cable, ensure the very good micro-bending resistant performance.
-Simple structure ,light weight and high practicability.
-Novel flute design easily strip and splice, simplify the installation and maintenance.
-Two parallel FRP or Aramid plastic rods strengthen ensure good performance of crush and tension resistance to protect the fiber.
-Low smoke, zero halogen and flame retardant sheath.
Description :

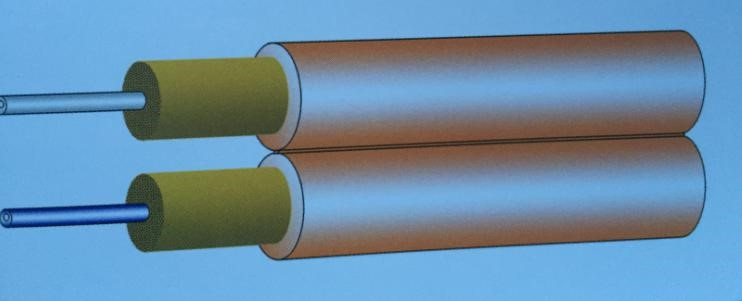

The φ250μm colored coating optical fibers are positioned in the centre. The parallel fiber reinforced plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
Technical Advantages:
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent transmission property.
2. Single steel wire ensures crush resistance to protect fiber.
3. Simple structure, light weight and high practicability
4. Novel flute design, easily strip and splice, simplify installation and maintenance.
5. Flexible network construction, reduce the cost of installation and convenient for network management.
6. Usable equipment ports, easy to increase the user and expand accommodates gradually.
Application:
Used in pigtails and cords;in optical connetions in optical communication equipment rooms and optical distribution frames;in optical connections in optical apparatus equipment.
| Technical Data |
|
| Fiber count | Cable outer dia (mm) | tight fiber dia (mm) | Cable weight (kg/km) | Min.bending radius(mm) | Permissible tensile force(N) | Permissible pressure force(N/100mm) |
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term |
| 2 | 1.6*3.3 | 0.6 | 5.8 | 30 | 60 | 60 | 120 | 100 | 500 |
| 2 | 1.8*3.7 | 0.6 | 7.4 | 30 | 60 | 60 | 120 | 100 | 500 |
| 2 | 2.0*4.1 | 0.9 | 10.0 | 30 | 60 | 80 | 150 | 100 | 500 |
| 2 | 2.4*4.9 | 0.9 | 11.4 | 30 | 60 | 80 | 150 | 100 | 500 |
| 2 | 2.8*5.7 | 0.9 | 15.8 | 30 | 60 | 100 | 200 | 100 | 500 |
| 2 | 3.0*6.1 | 0.9 | 16.2 | 30 | 60 | 100 | 200 | 100 | 500 |
| Note:1.All the values in the table,which are for reference only,are subject to change without notices. |
| 2.The minimum bend radius(static)is 15mm when G.657 fiber is used. |
| Temperature | Range |
|
|
|
|
|
|
|
|
|
| Transport/Storage temp | -20ºC~ +70ºC | |
| Installation temp | -5ºC~ +50ºC | |
| Operation temp | -20ºC~ +70ºC | |
| Remark: | | | | | | | | | |
| 1. Fiber: single mode fiber G.652.D,G.657,G.655,multi mode fiber 50/125,62.5/125 or specified by customer; |
| 2. Sheath material: PE,LSZH material or specified by customer; |
|
| 3. The parameters in above table are nominal values, all sizes and performance values can be specified by customer. |
| Item | FTTH-6 |
| Number of Fiber | 6( G652D) |
| Two paraller strength member | FRP rod |
| Outer sheath (LZSH suit for very low temperature) | LSZH PE |
| Outer sheath colour | white or similar |
| Permissible bending radius | 25mm |
| Self-support distance | -- |
| Permissible tensile force | 100-120N |
| Cable diameter |
|
| Width | 4.0 + 0.1 mm |
| Height | 2.0 + 0.1mm |
| Weight (apporx) | 9.0kg/km + 1Kg/Km |
| Operating temperature range | -40oC to +60oC |
| Storage / Transport temperature range | -40oC to +60oC |
| Installation temperature range | -40oC to +60oC |
| Product Model | GJXCH/GJXFCH |
| Product Name | Self- supporting metallic strength member optical fiber drop cable |
| size | 5.2×2.2MM |
| Attenuation index | wavelength | B1.1 B1.3 | B6a(G.657A) | B6b(G.657b) |
| (G.652) | (DB/KM) | (DB/KM) |
| (DB/KM) |
|
|
|
| 1310 | ≤0.45 | ≤0.45 | ≤0.60 |
| 1550 | ≤0.30 | ≤0.30 | ≤0.50 |
| Technical parameter | Model | Fiber count | Fiber model | Max.tensile (N) | Max.squashed force (N) | Max.Bending radius |
| Long-time/ | Long-term/ | Long-time/ |
| short-time | short time | Short-time |
| CJYXCH/GJYXFCH | 4 | B1.1 B1.3 | 300/600 | 1000/2200 | 30/60 |
| B6a | 300/600 | 1000/2200 | 15/30 |
| B6b | 300/600 | 1000/2200 | 10/25 |
| GJYXCH/ GJYXFCH | 1/2 | B1.1 B1.3 | 300/600 | 1000/2200 | 30/60 |
| B6a | 300/600 | 1000/2200 | 15/30 |
| B6b | 300/600 | 1000/2200 | 10/25 |
| Length type | 500M 1000M 2000M per reel or as your request |
Hangzhou linan jinlong cable factory is located in a beautiful western suburb of Hangzhou Lin'an city, in the middle west of Zhejiang Gold travel geographical location and convenient transportation.
Linan is a city famous for its beautiful scenery and is located in Yangtze river delta, in the west of Hangzhou city.
Founded in September 1994, ourcompany is a comprehensive and faithful demonstration enterprise, engaged in the TV cable and communication optical cable manufacture and supporting the selding of the construction.
Our company is awatded as the one of the enterprises with the rapidest growth, as well as the AAA level credit enterprise by financial institutions.

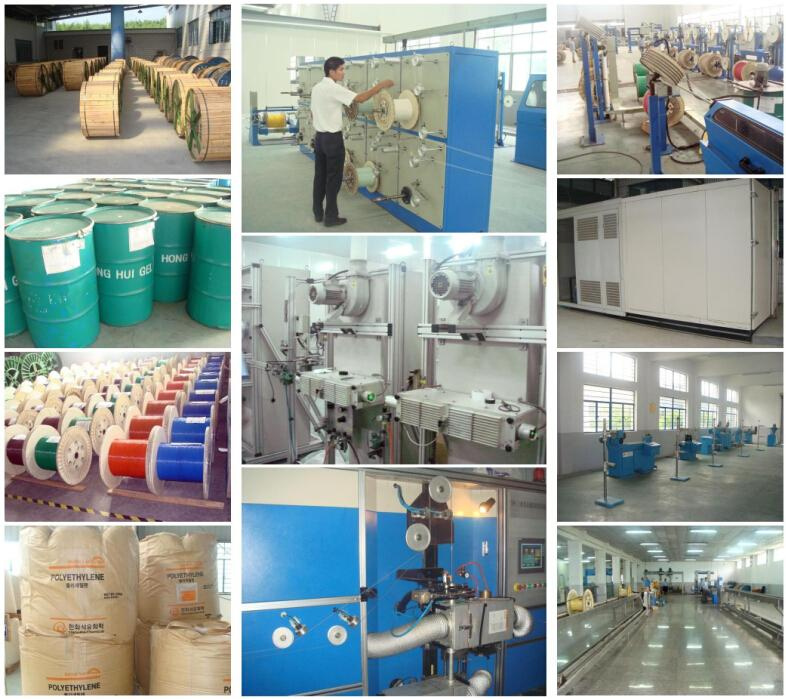

Our company, armed with advanced production and testing equipments, and the state council allowance optical communication experts as the chief engineers, has the ability to gain an output of 3, 000, 000 km cores-length cable every year, and the unitary property and index are in line with or beyond industrial and international strandard. The most products have passed ISO9001international quality system authentication, and won the SARFt certificate. Our company has a long-term OEM cooperation not only with groups who manufacture for “ China mobile” , "China unicom", "China telecom" ---three big operators of fiber optic cable, but also with some foreign well-known enterprise cooperation. Ourfiber optic cable have been exported to many overseas countries, and enjoys pleasant reputation and recognition among our cooperation partners.
Our company will actively join in Chinese and foreign cooperation with excellent enterprie credit, strong research strength, perfect management system, the mature marketing channel and good service system in the future, to make contributions to Chinese communication development and national economy progress.
Our company is a professional manufacturer of optical fiber cables. We use advance manufacturing techniques and advanced inspecting equipment to guarantee high quality. We produce indoor and outdoor, single mode and multi mode optical fiber cables, according to customers' requirements with reasonable prices, we can supply diffenrent types. "today's quality is tomorrow's market" is our business philosophy.
Our company has attained ISO9001 quality management system certification. We also have obtained the network access license for telecommunications equipment from China's state administration of radio film and television (sarft).
Please feel free to contact us for further information.
