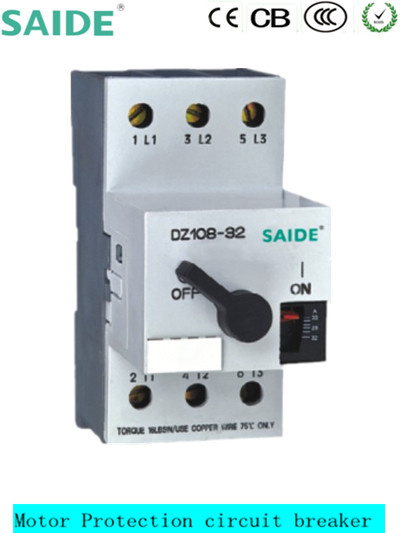

Dz108-32 Motor Protection Circuit Breaker

Name: Dz108-32 Motor Protection Circuit Breaker
Brand: all-electronics-online.com
SKU: 818845445
Availability: InStock
Rating: 4.3 (102 reviews)

Price:	US $ 3.5-4/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	dz108
Color:	White
Functional:	Overload, Short-Circuit, Undervoltage
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

DZ108 series circuit breaker mainly applies to power systems of AC380/660V,50/60Hz,0.1~63A. Its purpose lays in protection against overload, phase defect, short-circuit, etc.

DZ108 circuit breaker complies to GB14048.2 & IEC60947-2 standards.

Catalog

Date

Model		DZ108-20(3VE1)	DZ108-32(3VE3)	DZ108-63(3VE4)
Pole NO.		3	3	3
Rated Voltage(V)		660	660	660
Rated Current(A)		20	20	20
Rated breaking capacity of shortcircuit	220V	1.5	10	22
	380V	1.5	10	22
	660V	1	3	7.5
Mechanic life		4×10 4	4×10 4	2×10 4
Electric life		5000	5000	1500
Auxiliary Contact Parameters			DC	AC		It can be
						matched with
		Rated Voltage(V)	24, 60, 110, 220/240	220	380	the auxiliary
		Rated Current(A)	2.3, 0.7, 0.55, 0.3	1.8	1.5	contact only
Protective Features		Motor Protection	Su Current Multiple	1.05	1.2	6
			Action Time	No action	<2h	>4s
		Distribution Protection	Su Current Multiple	1.05	1.2
			Action Time	No action	<2h

About us

Why Choose Us?

1.Low voltage produce experience for 20 Years → Reliable Supplier with Good Reputation

2.Factory Direct Sale → Competitive Price & Full Stock

3.Quality Control → High Quality

4.Low MOQ → Accept Small Order

5.Accept OEM → Produce Products as Customers' Requirements

6.Fast Delivery → Delivery within 3 Working Days

7.Various Payment Methods → Easy to Pay

Saide Electric Co., Ltd. Was founded in 1998, located in Qiligang industrial zone, Liushi. We also invested 180 million RMB to build another 26000 square meters Hi-tech industrial park in Wenzhou Oujiangkou district. With a registered capital of 50 million RMB and over 500 workers, we are now a specialized low-voltage appliance manufacturer combined research, production and sales altogether. With a contunuous development of more than ten years, we obtain mature craftsmanship, advanced equipment & self-design capability now.

We've already got approved with ISO9001, ISO14001, ISO18001 quality system, products comply with certificates such as CCC(China), TSE(Turkey), CE(Europe), CB(International), etc. With years of outstanding performance, we've been awarded titles as "Star corporation of province", "Tech innovation department", "Excellent exporting corporation", etc.

With core idea of "Top class quality, Top class service, Top class reputation", we welcome customers all over the world with open arms to build a brand-new era of low voltage appliance together.
