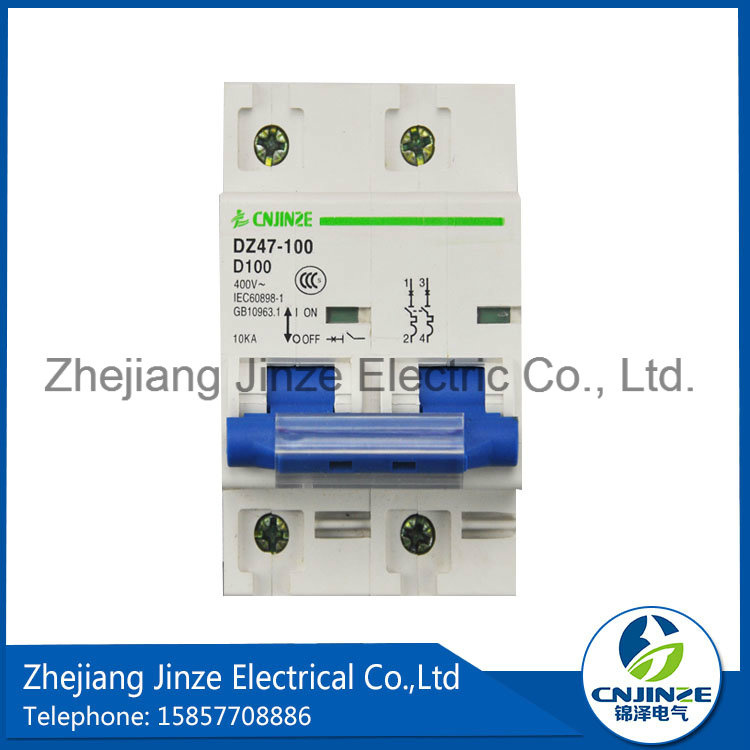

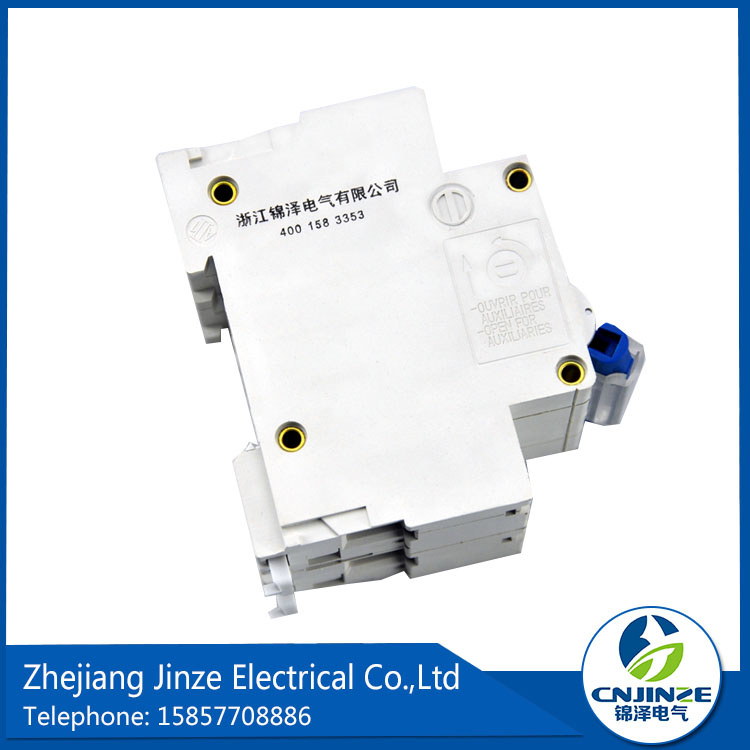

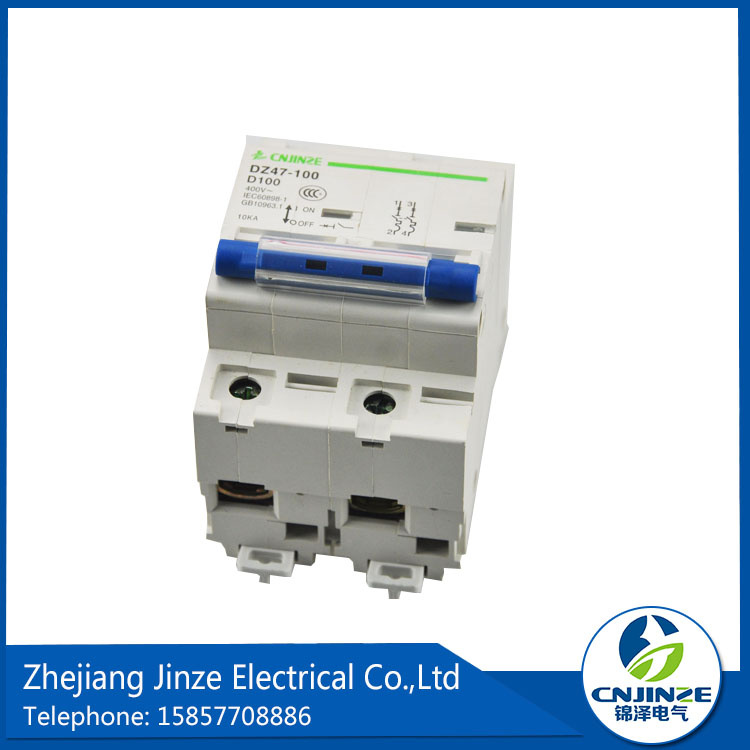

Dz47-100 Nc High Breaking Capacity Mini Circuit Breaker (MCB)

Name: Dz47-100 Nc High Breaking Capacity Mini Circuit Breaker (MCB)
Brand: all-electronics-online.com
SKU: 840103465
Availability: InStock
Rating: 4.3 (113 reviews)

Price:	US $ 1.72-6.88/Piece
Min Order:	60/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Description

Free Samples Can Be Provided

Model	MINI CIRCUIT BREAKER
Code	EKM1-63S
Standard		IEC60898-1
Electrical features	Rated current in	A	63 80 100 125
	Poles		1P, 2P, 3P, 4P
	Rated voltage Ue	V	240/415
	Insulation coltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	10000
	Rated impulse withstand voltage (1.2/50)Uipm	V	4000
	Dielectric test voltage at and ind.Freq.for 1min	KV	2
	Pollution degree		2
	Themo-magnetic release characteristic		B(3-5In) ,C(5-10In),D(10-20In)
Mechanical features	Electrical life		4000
	Machanical life		10000
	Protection degree		IP 20
	Reference temperature of setting of thermal element	°C	30
	Ambient temperature(with daily average≤35°C)	°C	-5~+40
	Storage temperature	°C	-25...+70
Installation	Terminal connection type		Cable/Pin-type busbar
	Terminal size top/bottom for cable	mm²	25
	Terminal size top/bottom for busbar	mm²	25
	Tightening torque	N*m	2.0
	Mounting		35mm DIN rail
	Connection		From top and bottom

Packing details:

NAME	SPECIFICATIONS	UNIT	PCS/CARTON	CARTON VOLUME(CM) LWH	G.W(KG)	N.W(KG)
DZ47-100	1P 63-125A 10KA	PCS	120	4534.519	19.00	18.25
DZ47-100	2P 63-125A 10KA	PCS	60	4534.519	19.00	18.25
DZ47-100	3P 63-125A 10KA	PCS	40	4534.519	19.00	18.25
DZ47-100	4P 63-125A 10KA	PCS	30	4534.519	19.00	18.25

Prod Model:	DZ47-100 NC
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CCC
Poles Number:	1p 2p 3p 4p

Zhejiang Jin Ze Electric Co., Ltd. is located in the scenic state-level tourist attractions of Yandang Mountain mountain, Yueqing bay. The predecessor of the Yueqing Tengyuan Electrical Appliance Factory, founded in September 2003, through continuous efforts to develop in March 2009 changed to the Yueqing City Jin Ze Electric Co. Ltd.; Through ten years of development, in order to adapt to enterprise development and growth in February 2015 the company upgraded to Zhejiang Jinze Electric Co. Ltd...Now the main subordinate enterprises in Zhejiang Gaoqiao Power Equipment Co. Ltd; Is a professional production of miniature circuit breaker, leakage circuit breaker, AC contactor, circuit breaker, spring coil, terminals, coil, air core coil, signal lamp, button switch, low-voltage electrical appliances accessories professional manufacturers, to provide high-quality electronic components for the machine manufacturers.
