Popular Infrared Motion Pir sensor IP44 ES-P06 specifications:
1. Power source: 220V/AC-240V/AC; 100V/AC-130V/AC
2. Power frequency: 50/60Hz
3. Time delay: Min. 10± 3sec.; Max. 7± 2min
4. Detection angle: 360°
5. Ambient light: <10lux~2000lux
6. Working temperature: -10-+40ºC
7. Detection distance(22ºC): Max. Diameter 12m
8. Rated load: 1200W (220-240V/AC); 800W (110V/AC); 3000W(220-240V/AC); 1500W (110V/AC)
9. Power consumption: 0.45W(static 0.1W)
10. Installation height: 0.5-4.5m
11. Detection motion speed: 0.6-1.5m/s
12. Working humidity: < 93%RH
13. Switch Function: lux/time/sen
TESTAfter installation, Turned LUX knob clockwise to the maximum (SUN). Turned time knob anti-clockwise to the minimum(-).Turn on the power, the sensor will be electrify and warm-up, 30 sec later, the item will be entered into working estate. 5~10 seconds after the light goes out for the first time and then sensing, the load should be worked.Turns LUX knob anti-clockwise to the minimum. If it is tested under the circumstance below 3LUX, load should not work after induction load stop working; but if you cover the detection window with opaque objects (towel etc), the load works. Under the condition of no induction signals, the load should stop working within 5-15 sec.

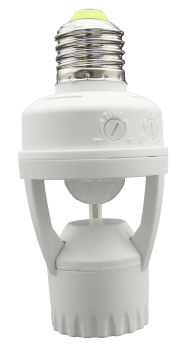

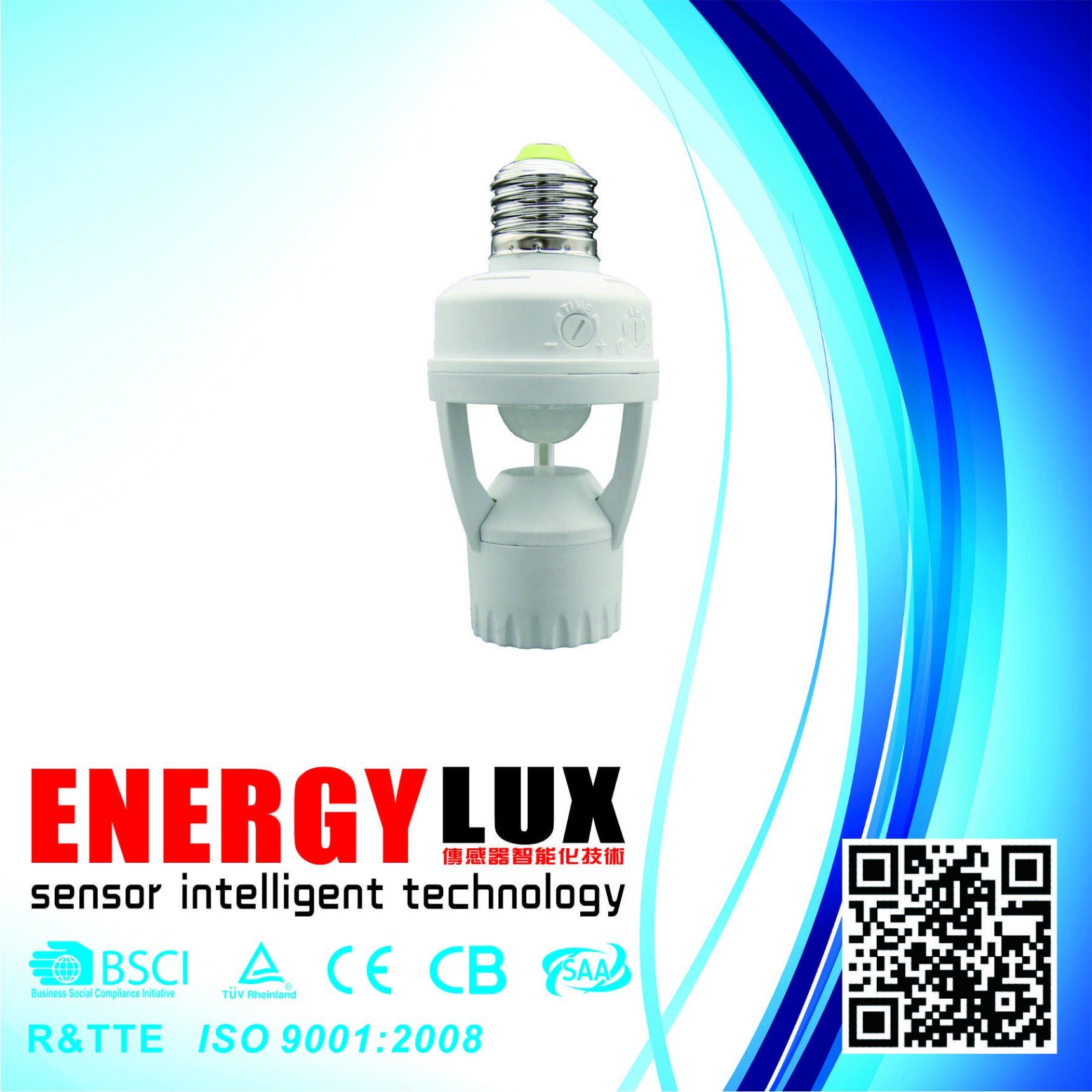

Welcome to use ES-B03B Infrared motion sensor!The product adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.SPECIFICATIONDetection Range: 360°Power Source: 110-240V/ACPower Frequency: 50/60HzRated Load: <60WDetection Distance: 7m max(<24ºC) Time-Delay: min. 10sec±3secmax. 5min±1minAmbient Light: 10-2000LUX (adjustable)Installation Height: 2m-3.5mINSTALLATION- Fix the holder in the place where you will want to install according to right figure.
- After installation of the sensor, connect with lamp, then you could test it.
TEST- After installation, Turned LUX knob clockwise to the maximum (SUN). Turned time knob anti-clockwise to the minimum(-).
- Turn on the power, the sensor will be electrify and warm-up, 30 sec later, the item will be entered into working estate. 5~10 seconds after the light goes out for the first time and then sensing, the load should be worked.
- Turns LUX knob anti-clockwise to the minimum. If it is tested under the circumstance below 3LUX, load should not work after induction load stop working; but if you cover the detection window with opaque objects (towel etc), the load works. Under the condition of no induction signals, the load should stop working within 5-15 sec.
Note: when testing in daylight, please turn LUX knob to (SUN) position, otherwise the sensor lamp could not work!
