Yueqing Winston Electric Co., Ltd. >> E2e-X2 Flush Metal Electrical Inductance Proximity Sensor Switch with Ce

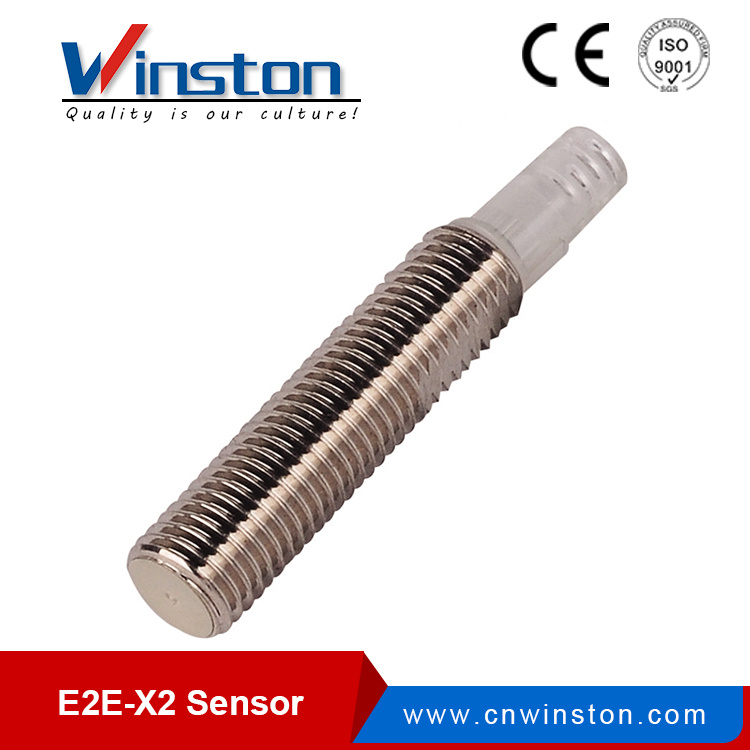

E2e-X2 Flush Metal Electrical Inductance Proximity Sensor Switch with Ce

E2e-X2 Flush Metal Electrical Inductance Proximity Sensor Switch with Ce
Price: US $ 3.52-5.75/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: E2E-X2
Markets: North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Brand: Winston
Detection Distance: 2mm +-10%
Indicator Light: LED
Protection Grade: IP67
Warranty: 2 Years
Manufacturer: OEM
Condition: Original New
Mounting: Shielded
Shell Material: Metal
Standard: Standard
Certification: CE
Type: Proximity Switch
Principle: Inductance Sensor
Wires: NPN PNP Two-Wires
Application: Position Sensor

Product Description

E2e-X2 Flush Metal Electrical Inductance Proximity Sensor Switch with CE

Features

Improved the noise resistance with dedicated IC
Built-in reverse polarity protection circuit (DC 3-wire type)
Built-in surge protection circuit
Built-in overcurrent protection circuit(DC type)
Long life cycle and high reliability, and simple operation
Protection structure IP67(IEC standard)
Replaceable for micro switches and limit switches

E2E-X2Detection Distance2mm
FlushDC 6-36VDCNPNNOE2E-X2E1
NCE2E-X2E2
NO+NCE2E-X2E3
PNPNOE2E-X2F1
NCE2E-X2F2
NO+NCE2E-X2F3
Two wire systemNOE2E-X2D1
NCE2E-X2D2
AC90-250VACSCR                   Control-lable siliconNOE2E-X2Y1
NCE2E-X2Y2
NO+NC
Relay output
Control  outputDC200mA
SCR/Relay300mA
Output vol;tage drop DC/ACDC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC<3V AC>10V
Consumption currentDC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC<15mA, AC>10mA
standard detected object
Repeated precision0.5
DC/AC200Hz/10Hz
Working environment temperature-25ºC ~ + 65 ºC
Insulation resistance50MΩ
Shell materialMetal
Protection gradeIP67
