| Prod Model: |
TX5804 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmitter Frequency: |
5645-5945MHz;8CH |
| Transmitting Power: |
400mw/26dBm |
| Transmitting Distance: |
>4000m(Open Area) |
| Frequency Control: |
Built-in Frequency and Phase Lock Loop |
| AV Input: |
Analog AV Signal Input |
| Ant Connector: |
SMA(Inside The Needle) |
| Power Supply: |
6.5-15 Volts |
| Current Supply: |
280mA |
| Size: |
55*26*17mm |
| Feature: |
with Channel Button |
Product Description

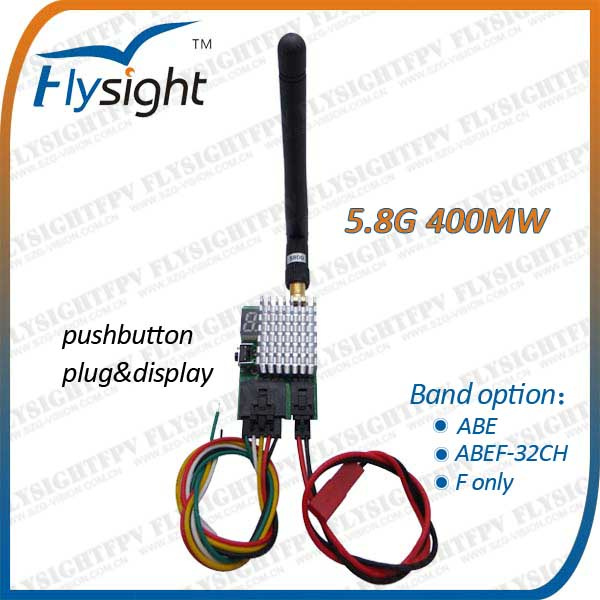

E3 5.8g New Fpv 400mw AV Wireless Transmitter Tx5804 with Channel Button for Radio Control Plane
Features
5.8G 8ch transmitter
With channel button to change channels easily
Channel memory function for power-off
Very light and ultra mini size
The mini but powerful 5.8G 400mw transmitter would make your fly to 4-5 km away with only the stock antenna, advanced build-in regulator offers this transmitter very wide power input range.
5.8G NEW 400mw transmitter is just light, compact and powerful, a very good choice for 5.8G middle range FPV.
This transmitter is compatible with all our 5.8G VRX like RC305, RC805, AIO goggles and 5.8G DVR DV01.
Specificaitons
Transmitter frequency: 5645-5945MHz; 8CH
Transmitting Power: 400mW/26dBm
Transmitting distance: >4000m(open area)
Frequency control: Built-in frequency and phase lock loop
AV input: Analog AV signal input
ANT connector: SMA(inside the needle)
Power supply: 6.5-15 volts
Current supply: 280mA
Size: 55*26*17mm
Remark:
The transmitter's power input is ranging from 7-12V, however the voltage outptu from the TX for the camera us 0.5V, lower than the input power. It's suggested to use 3S lipo 11.1V battery
Note:
Antennas must be attched before powering on.
Group No.
Channel No |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
A |
5865MHz |
5845MHz |
5825MHz |
5805MHz |
5785MHz |
5765MHz |
5745MHz |
5725MHz |
|
B |
5733MHz |
5752MHz |
5771MHz |
5790MHz |
5809MHz |
5828MHz |
5847MHz |
5866MHz |
|
E |
5705MHz |
5685MHz |
5665MHz |
5645MHz |
5885MHz |
5905MHz |
5925MHz |
5945MHz |
|
F |
5740MHz |
5760MHz |
5780MHz |
5800MHz |
5820MHz |
5840MHz |
5860MHz |
5880MHz |
