E4010 E High Temperature Wireles Wire Terminal

Name: E4010 E High Temperature Wireles Wire Terminal
Brand: all-electronics-online.com
SKU: 691085341
Availability: InStock
Rating: 4.3 (64 reviews)

Price:	US $ 4.59-7.99/Bag
Min Order:	1/Bag
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Max voltage:300V Ui=105°C material:BRASS insulating material:PVC(many colors)
Item No	dimension(mm)						cable size	color
	F	L	W	Dφ	Cφ	A.W.G	(mm2)	(1)German(2)French
E 0506	6	12	2.5	1.3	1	# 22	0.5	(1)orange(2)white
E 0508	8	14
E 0510	10	16
E 0512	12	18
E 7506	6	12.4	2.8	1.5	1.2	# 20	0.75	(1)white(2)blue
E 7508	8	14.6
E 7510	10	16.4
E 7512	12	18.4
E 1006	6	12.4	3	1.7	1.4	# 18	1	(1)yellow(2)red
E 1008	8	14.6
E 1010	10	16.4
E 1012	12	18.4
E 1508	8	14.6	3.5	2	1.7	# 16	1.5	(1)red(2)black
E 1510	10	16.4
E 1512	12	18.4
E 1518	18	24.4
E 2508	8	15.2	4	2.6	2.3	# 14	2.5	(1)blue(2)gray
E 2510	10	17.2
E 2512	12	19.2
E 2518	18	25.2
E 4009	9	16.5	4.4	3.2	2.8	# 12	4	(1)gray(2)orange
E 4012	12	19.5
E 4018	18	25.5
E 6010	10	18	6.3	3.9	3.5	# 10	6	(1)black(2)green
E 6012	12	20
E 6018	18	26
E 10-12	12	21.5	7.6	4.9	4.5	# 7	10	(1)milk(2)brown
E 10-18	18	27.5
E 16-12	12	22.2	8.8	6.2	5.8	# 5	16	(1)green
E 16-18	18	28.2						(2)milk
E 25-16	16	29	11.2	7.9	7.5	# 4	25	(1)brown
E 25-22	22	35						(2)black
E 35-16	16	30	12.7	8.7	8.3	# 2	35	gray
E 35-25	25	39
E 50-20	20	36	15.3	10.9	10.3	# 1	50	olive
E 50-25	25	41

Diagrammatic Drawing And Data Sheet

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

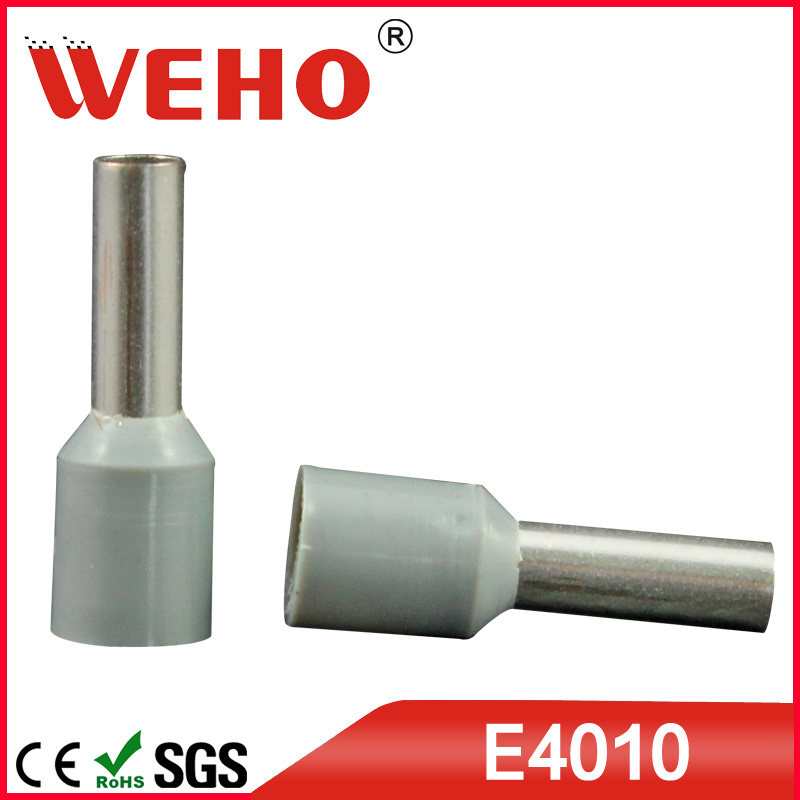

Prod Model:	E4010
MOQ:	1bag
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Service:	24hours on Line
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals

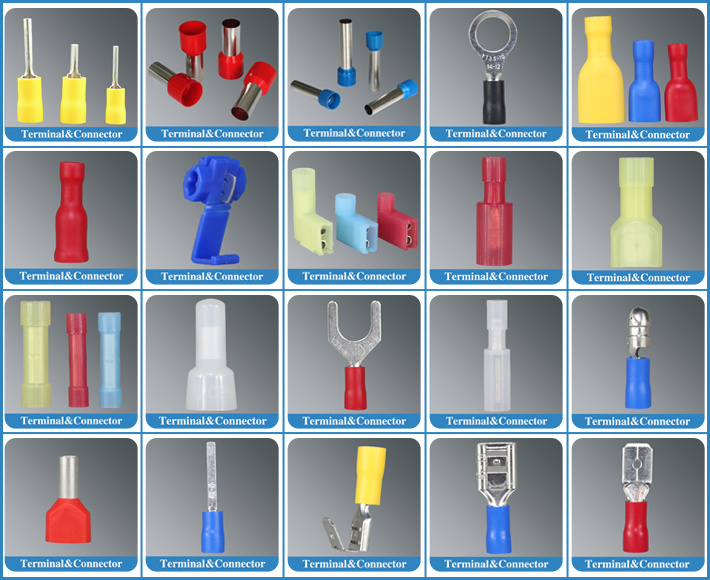

Shape:	Rings, Forks, Pins, Tab, Butts, Bullets
Interface Type:	Standard
Certification:	Ce
Brand:	Weho

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
