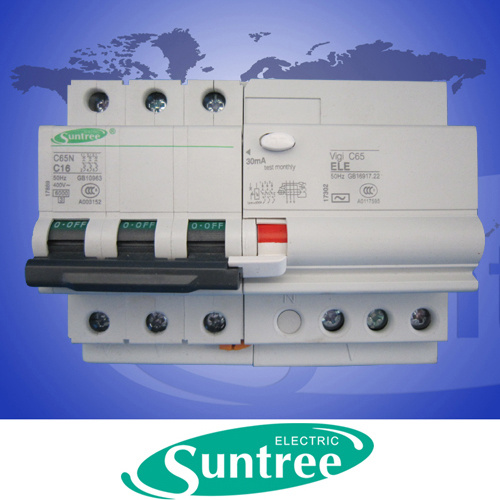

Earth Leakage Circuit Breaker Elcb (C65LE) 3 Pole

Name: Earth Leakage Circuit Breaker Elcb (C65LE) 3 Pole
Brand: all-electronics-online.com
SKU: 695909295
Availability: InStock
Rating: 4.7 (57 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Earth Leakage Circuit Breaker ELCB:

It has the protection function of earth leakage, overload, over-voltage, under voltage and short circuit. When a person gets an electric shock or a leakage current from a electric network exceeds the specified value, the breaker can quickly switch off the faulty power supply to ensure the safety of the persons and the electric appliance. It is mainly used in building illumination and distribution system.

The product comply with standard of IEC61009.

Rated voltage(V)	Shell frame size rated current Inm(A)	Pole	Neutral	Rated current In(A)	Rated breaking capacity		Rated residual operated current In mA	Rated residual non-operating current In mA	Rated residual operating time(S)	Release character
					Breaking capacity	COS
230	100	1	+N	40.50, 63, 80.100	10000	0.5	30 50 100 300 500	15 25 50 150 250	< 0.1S	C. D
230	100	2			10000	0.5			< 0.1S	C. D
415	100	3			10000	0.5			< 0.1S	C. D
230/415	100	3	+N		10000	0.5			< 0.1S	C. D
230/415	100	4			10000	0.5			< 0.1S	C. D

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Suntree
Model Number:	C65le
Poles Number:	1, 2, 3, 4
Guarantee Period:	2year
Professional Manufacture:	10 Year
Quality:	Stable and Reliable
Price:	Competitive
Case Material:	Flame-Retardant Plastic
Parts:	Silver Point, T2 Copper
Class:	a, B
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker
