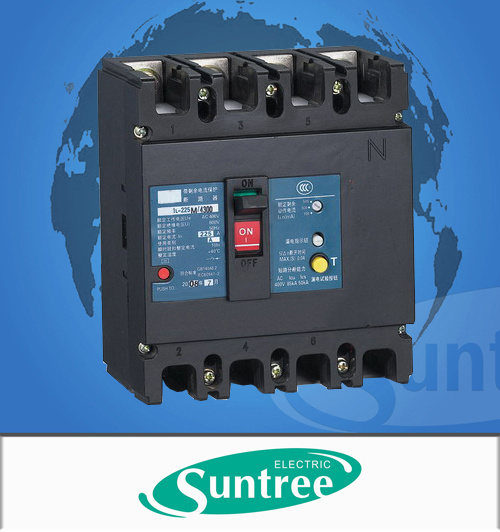

Earth Leakage MCCB Elcb (225A)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
SCM1L series earth leakage circuit breaker are one of the new type earth leakage breaker switch have been developed by the company using international advanced design and manufacturing technology. Suitable for a line of AC50Hz/60Hz, rated voltage up to 400V, rated current16A to 630A. And is acted as infrequent changeover of circuit or infrequent starting of motor. The breaker has overload, short-circuit and under-voltage protective function, which can protect the circuit and the power equipment against damage, meanwhile, it can provide protection to these fire dangers that caused by these long-time existed grounding fault that can not be detected by the over-current protection.
This breaker can be installed vertically(upright) or horizontally(transverse). Wiring of the breaker can not be in adverse direction, that means power supply line must be connected to terminal 1, 3 and 5, and the load line connected to terminal 2, 4 and 6. The rated residual operating current In and the maximum breaking time can be adjusted on site according to practical condition.
The leakage protection module still can work normally when the phase voltage reduce to 50V. It has the same overall size with the CM1 series breakers, which make the installation more exchangeable.
The breakers are suitable for isolation, its symbol are: The breakers comply with the demands of the following standards: IEC60947-1 and GB/T 14048.1GeneralIEC60947-2 and GB 14048.2Low voltage breakersIEC60947-4 and GB 14048.4Contactors and motor startersIEC60947-5.1 and GB 14048.5Electrical equipments of electromechanical control circuit.
|
Type |
SCM1L-100 |
SCM1L-225 |
SCM1L-400 |
|
Frame Current Inm(A) |
100 |
225 |
400 |
|
Rated current In(A) |
(10)16, 20, 25, 32, 40, 50, 63, 80, 100 |
100, 125, 160, 180, 200, 225 |
225, 250, 315, 350, 400 |
|
Pole Number |
3 |
4 |
3 |
4 |
3 |
4 |
|
Rated Insulation Voltage Ui(V) |
|
AC800 |
|
Rated Working voltage Ue(V) |
|
AC 400V |
|
Rated impulse with stand voltage Uimp(V) |
|
8000 |
|
Arc-over Distance(mm) |
|
> 50 |
|
Breaking capacity grade |
M |
H |
|
M |
H |
|
M |
|
|
Limiting short-circuit breaking capacity lcu (kA) |
AC400V |
50 |
85 |
50 |
50 |
85 |
50 |
65 |
|
Service short-circuit breaking capacity lcs(kA) |
AC400V |
35 |
50 |
35 |
35 |
50 |
35 |
42 |
|
Rated residual operating current I n(mA) |
Non-delay type |
|
100/300/500 |
|
|
Delay type |
|
100/300/500 |
|
Rated residual nonoperatingcurrent I no(mA) |
|
1/2 I n |
|
Operation performance (time) |
Electrified |
1500 |
1000 |
1000 |
|
|
Unelectrified |
8500 |
7000 |
4000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Working Voltage: |
690V |
| All Standard: |
Iec947-2 |
| Type: |
Circuit Breaker |
| Function: |
OVP(Overvoltage Protection) |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Manual Type |
| Installation: |
Fixed |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Moulded Case Circuit Breaker |
